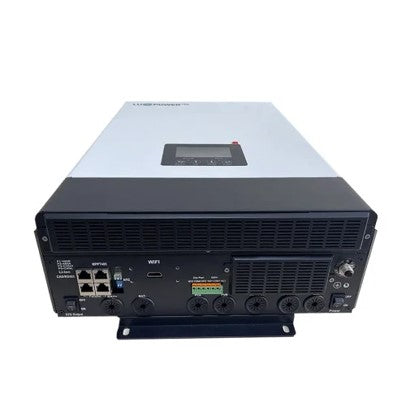

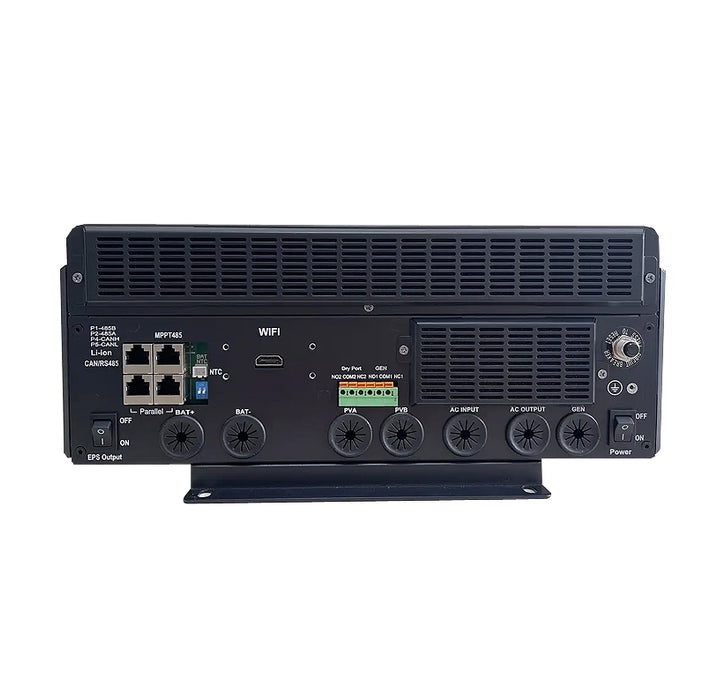

LuxPower 5kW Inverter – SNA5000 Hybrid Inverter
Save R 900.00
Original price
R 11,850.00
Original price
R 11,850.00
-
Original price
R 11,850.00
Original price
R 11,850.00
Current price
R 10,950.00
R 10,950.00
-
R 10,950.00
Current price
R 10,950.00
Availability:
in stock, ready to be shipped
Available Online & In-Store, Pay on Collection
Delivery Estimate 1-2 Business Days
LuxPower 5kW Inverter – SNA5000 Hybrid Inverter
Build-in BMS(Battery management System) -BMS Compatible with Volta, BYD, Dyness, Pylon, Revov, Shoto, CFE and UZ Energy.
General:
Model: SNA 5000 WPV
Warranty: 2years.
Battery voltage: 48VDC.
LuxPower 5kW Output Specifications:
- Rated power: 5000W/5000VA.
- Parallel capacity: YES.
- Normal output voltage: 230/240, Split phase 220/110 Vac.
- Normal output frequency: 50/60Hz.
- Surge power: 10000VA.
- Switch time: 10ms.
- Waveform: Pure sine wave.
Battery:
- Battery Type: Lithium/Lead-Acid.
- Normal Voltage: 51.2V/48V.
- Max. Charge Voltage: 59V.
Solar:
- Max. Recommended PV Power: 3200W/3200W.
- MPPT Tracker: 2.
- Max. PV Open Circuit Voltage: 480Vdc.
- MPPT Voltage Range: 100-385Vdc.
- Max. Solar Charge Current: 100A.
- Max. Solar Input Current: 13A/13A.
- Max. MPPT Eiciency: >98%.
- Parallel MPPT Charger: YES.
Grid:
- Normal Voltage: 230Vac.
- AC Voltage Range: 110-280Vac.
- Max. Charge Current: 60A.
- Frequency Range: 50/60Hz (Auto Sensing).
General:
- Dimensions(W/H/D): 330x504x135mm.
- Weight14Kg.
- Protection DegreeIP20.
- Relative Humidity5%~95% Relative Humidity (Non-condensing).
- Operating Temperature0°C~50°C.
- Storage Temperature-15°C~60°C.
- Interface.
Display: LCD+LED.
Lithium Battery Communication: CAN/RS485.
RS485/Dry Connector: YES/YES.
Wifi/GPRS: YES/YES.
Warranty: 2 years.
