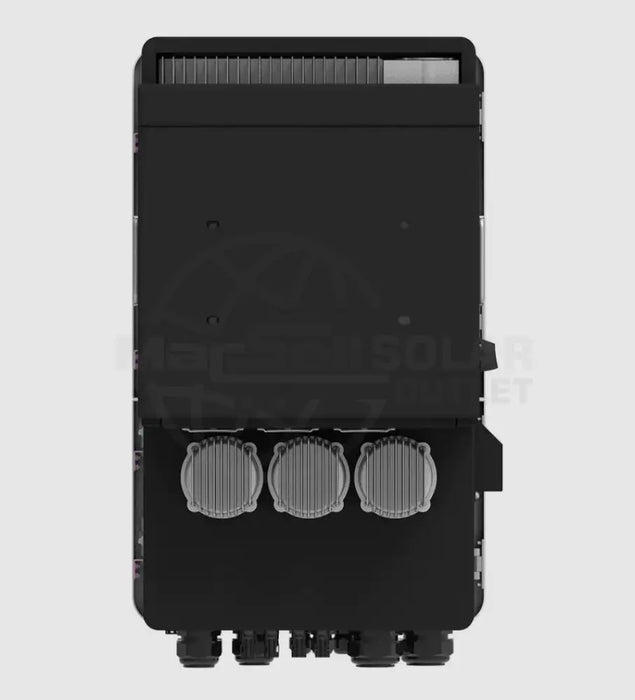

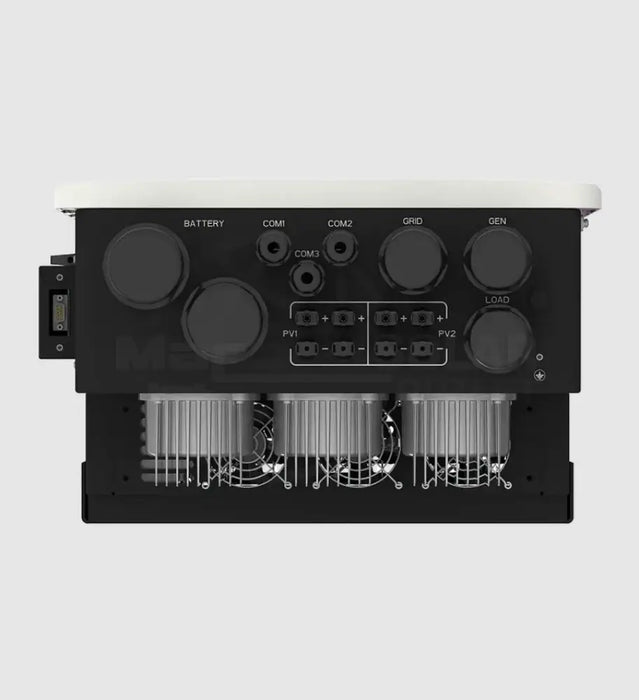

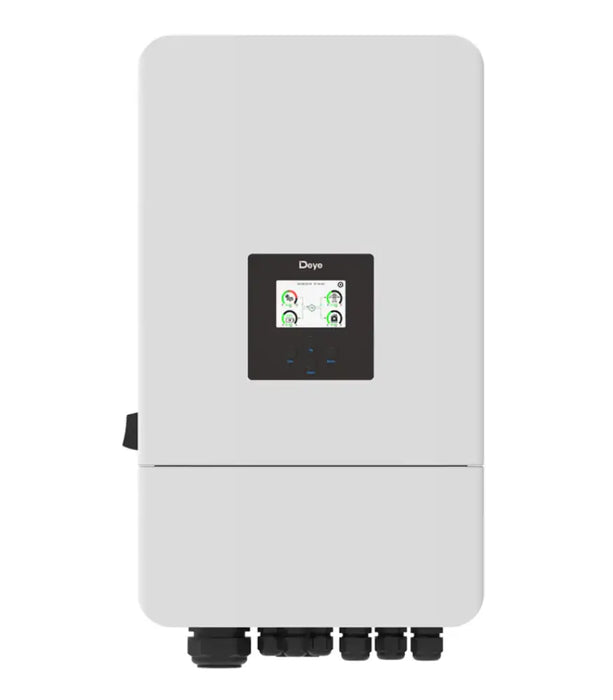

Deye 12Kw Three Phase Hybrid Inverter SUN-12K-SG05

Deye 12Kw Three Phase Hybrid Inverter SUN-12K-SG05 LP3-EU-SM2

R 0.00 - R 0.00
R 0.00
R 34,450.00
R 34,450.00 - R 34,450.00
R 34,450.00
    Visa Mastercard mobicred Zapper Maestro PayFast Instant EFT
Availability:
in stock, ready to be shipped

Available Online & In-Store, Pay on Collection

Delivery Estimate 1-2 Business Days

Deye 12Kw Three Phase Hybrid Inverter SUN-12K-SG05 LP3-EU-SM2


    • 100% unbalanced output, max. output up to 50%
      rated power for each phase
    • AC couple to retrofit existing solar system
    • Max. 10 pcs parallel for on-grid and off-grid
      operation; Support multiple batteries parallel
    • Max. charging/discharging current of 240A
    • 48V low voltage battery, transformer isolation design
    • 6 time periods for battery charging/discharging
    • Support storing energy from diesel generator
    Technical Data:

    Battery Input Data
    Battery Type : Lead-acid or Lithium-ion
    Battery Voltage Range (V) : 40-60
    Max. Charging Current (A) : 240
    Max. Discharging Current (A) : 240
    Charging Strategy for Li-ion Battery : Self-adaption to BMS

    PV String Input Data
    Max. PV Access Power (W) : 24000
    Max. PV Input Power (W) : 18000
    Max. PV Input Voltage (V) : 800
    Start-up Voltage (V) : 160
    MPPT Voltage Range (V) : 200-650
    Rated PV Input Voltage (V) : 550
    Max. Operating PV Input Current (A) : 26+26
    Max. Input Short-Circuit Current (A) : 39+39
    No. of MPP Trackers/ No. of Strings MPP Tracker : 2/2+2

    Size :
    386×660×250
    35.2

    Warranty

    5 Years

    • Warranties: All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC, and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at the void.
