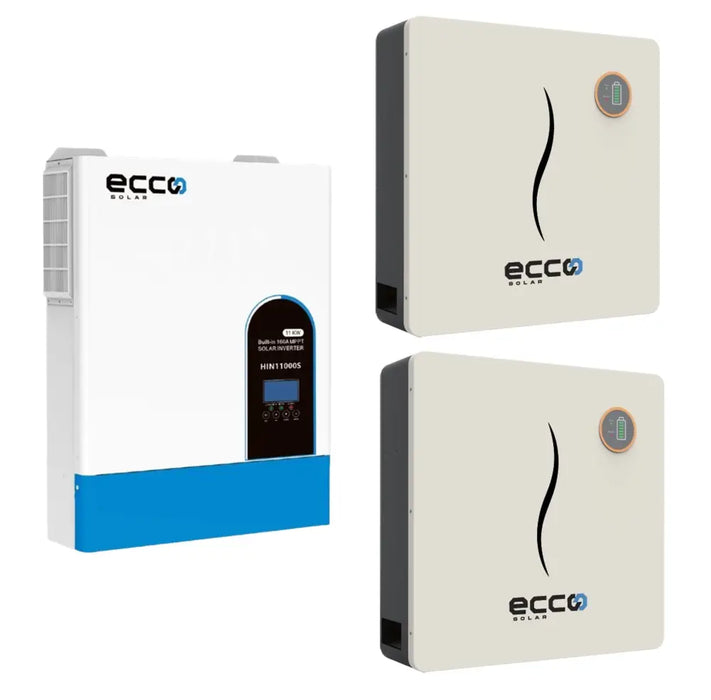

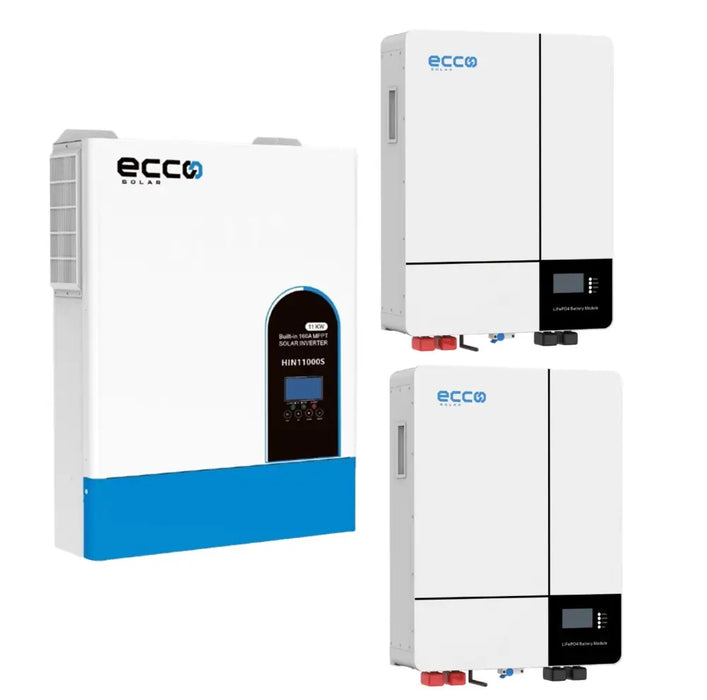

11KVA Ecco Solar Inverter Combo 2 X 5.12 KWH 100AH Lithium Ecco Solar Batteries
Available Online & In-Store, Pay on Collection
Delivery Estimate 1-2 Business Days
11KVA Ecco Solar Inverter Combo 2 X 5.12 KWH 100AH Lithium Ecco Solar Batteries

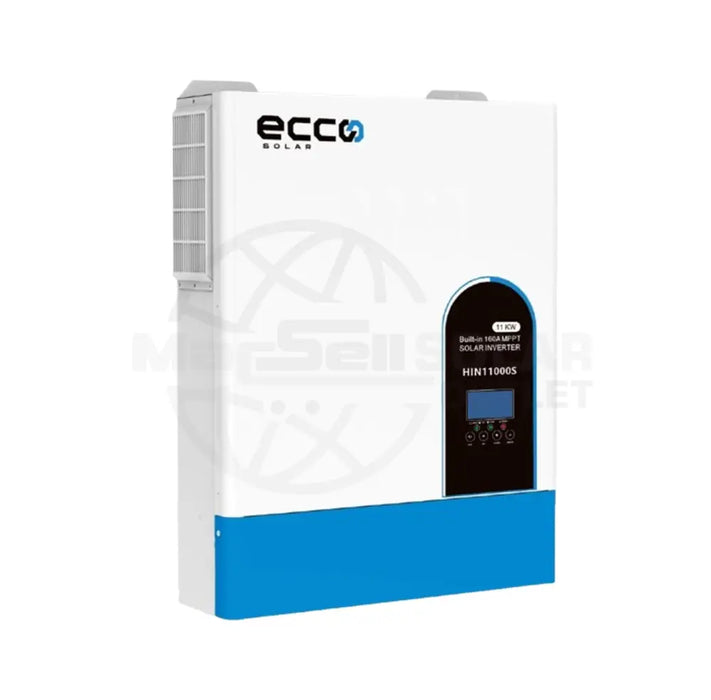

11 Kva 11000w Hybrid Inverter 48v MPPT 160A Inverter Pure Sine Wave - Ecco
Features
Built-in 2 MPPT
Lithium battery activation function by PV or Utility • Compatible work with LiFePO4 battery via RS485
Pure Sine Wave
Power factor 1.0
PV Input 500Vdc Max
Built-in MPPT 160A
Capable to work without battery
Detachable dust cover for harsh environment
Wifi remote monitoring optional
Support multiple output priority: SUB,SBU, SUF
EQ function to optimize battery performance and extend lifecycle
Specifications:
MODEL : HIN11000S
Capacity : 11KVA/11KW
Maximum PV Input Power : 11KW
Parallel Capability : NO
Lithium Battery Activation : YES (BY PV OR UTILITY)
Lithium Battery Communication : YES(RS485)
INPUT
Nominal Voltage : 230VAC
Acceptable Voltage Range : 170-280VAC(For Personal Computer) : 90-280VAC (For Home Appliances)
Frequency : 50/60 Hz (Auto Sensing)
OUTPUT
Nominal Voltage : 220/230/240VAC
Surge Power : 2200VA
Frequency : 50/60 Hz
Waveform : Pure Sine Wave
Transfer Time : 10ms(For Computers) 20ms(For Home Appliances)
Peak Efficiency : 94%
Overload Protection : 5s @ 140% Load
BATTERY
Battery Voltage : 48V
Maximum Discharge Current : 220A
Floating Charge Voltage : 54VDC
OverCharge Protection : 63VDC
Charging Method : CC/CV
SOLAR CHARGER & AC CHARGER
Solar Charger TYPE : MPPT
Max.PV Array Power : 5500W*2
Max. PV Array Open Circuit Voltage : 500VDC
PV Array MPPT Voltage Range : 60VDC-500VDC
Max. Solar Input Current : 18A*2
Max. Solar Charge Current : 160A
Max. AC Charge Current : 120A
Max. Charge Current : 160A
PHYSICAL
Dimensions, D x W x H(mm) 540 X 415X 122
Net Weight (Kgs) 15KG
Communication Interface RS232/RS485/DRY CONTACT
LCD
Add a Wifi Dongle: LINK

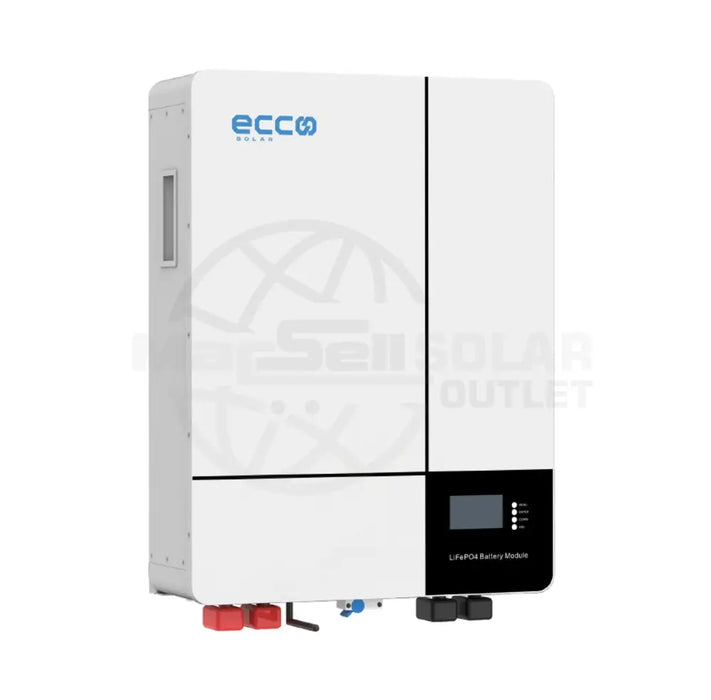

5.12kWh Lithium Battery Ecco 51.2v 100ah ME51100 Wall-Mounted
The ME Series offers a versatile and reliable power solution. Combine up to 40 units for energy capacities ranging from 2560Wh to 15360Wh. With WiFi Remote Monitoring, stay connected and in control. Whether it's wall- mounted convenience, stacked-mounting (up to 5 units) for space efficiency, or rack-mounted for industrial power management, this series offers seamless adaptability.
- Vertical-mounted only for ME51300 & ME51320
- Large capacity, high power output
- Safest lithium iron phosphate battery cell with high energy density
- Modular design: supports up to 40 units in parallel
- Support CAN & RS485 communication with mainstream inverters Local monitoring via LCD monitor
- Built-in WiFi Smart BMS Module
Specifications:
Nominal Voltage (V) 51.2
Nominal Capacity (Ah) 100
Total Power (kWh) 5.12
Best Charging Voltage (V) 58.4 (recommended)
Maximum Continuous Output Power (A) 100A
Maximum Momentary Output Power (A) 100A
Package Size (mm) 442 X 625.5 X 177
Weight (kg) 45
Combo includes:
- 2x 5.12kWh Lithium Battery Ecco 51.2v 100ah ME51100 Wall-Mounted (Wall Mount)(5 Years Warranty)
- 1x Hybrid Inverter 48v 11 Kva 11000w MPPT 160A Inverter Pure Sine Wave - Ecco (5 Years Warranty)
Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
