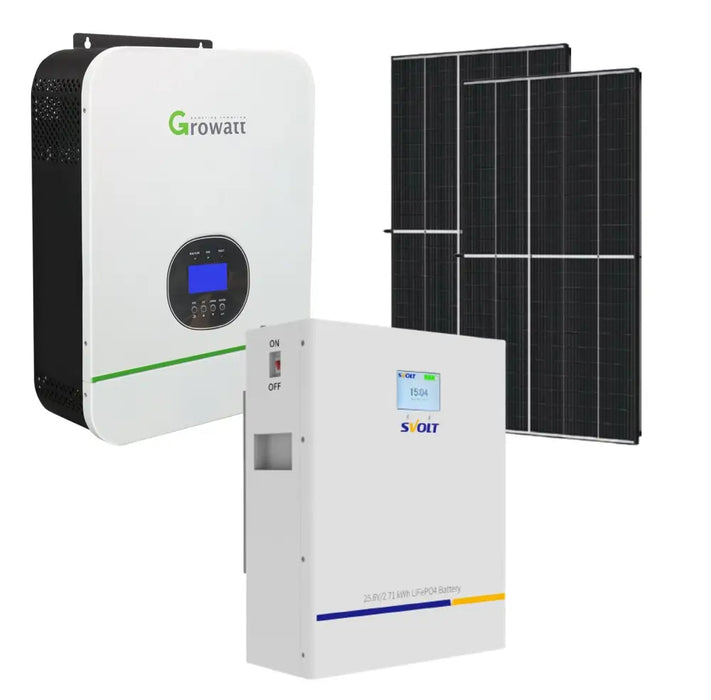

3KVA Growatt 3000 Watt 2.71 KWh Svolt Lithium 2X 460W Mono Panels Combo Kit

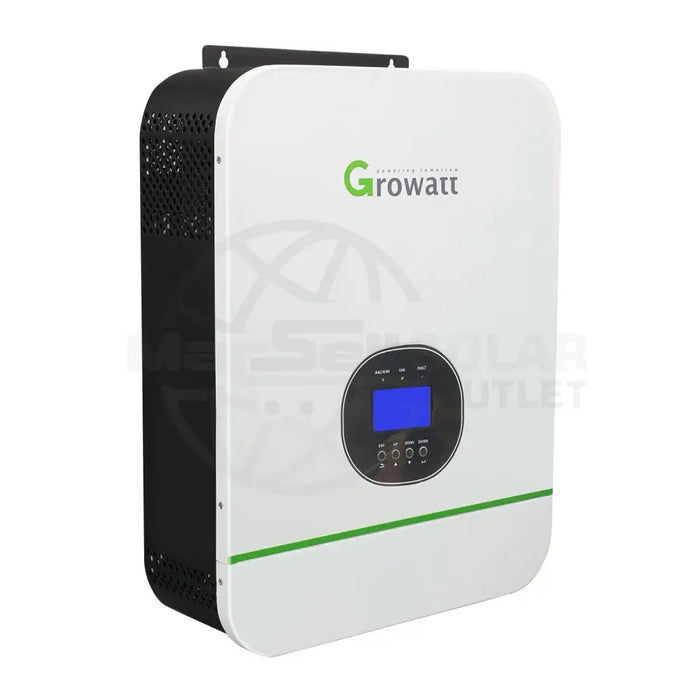

The Growatt SPF 3000TL HVM-24 is an off grid inverter. It is suitable for a maximum circuit voltage of 102VDC. The inverter can be used with batteries, but can also work without. The integrated solar charger optimizes the charging and discharging of the battery. Priorities can be assigned, where for example charging from the grid can be preferred over charging from the PV installation. Monitoring will be possible when adding a separate Wi-Fi or GPRS

Technical Details:

• Rated Power: 3000VA/ 3000W
• Parallel Capability: No
• Integrated MPPT charge controller: Yes
• Works with battery: Yes
• Surge Power: 6000VA

• Waveform: Pure sine wave

Solar Charger:

• Maximum PV Array Power: 1500W
• MPPT Range @ Operating Voltage: 30VDC ~80VDC
• Maximum PV Array Open Circuit Voltage: 102VDC
• Maximum Solar Charge Current: 50A
• Maximum Efficiency: 93%

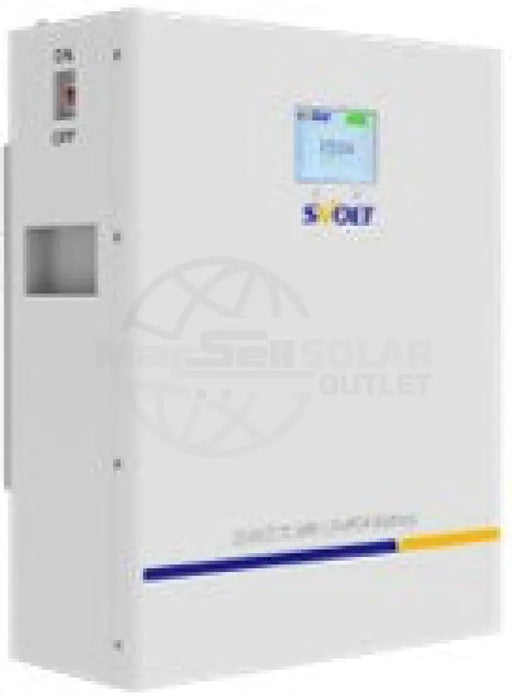

SVOLT 24V 106Ah 2.71 kWh A-Grade Lithium Battery CNN2511

Specifications

Energy: 2.71 kWh
Installation Type: Wall Mounted
Battery Type-Chemistry: Lifepo4
Nominal Voltage: 25.6V
Nominal Capacity: 106Ah
Energy Density: 2713.6 Wh
Dimensions (LxWxH): 419 x 350 x 154 mm
Weight (Approx.): 25.4 Kgs
Terminal Type: Feed-through Terminal
Case Material: SPCC
BMS Built-in: Yes
Internal Resistance: <25 mΩ
Efficiency- Round Trip: >99%
Self Discharge Per Month: <3%
Max. Parallel Connection: 4 Pcs
Max. Series Connection: 2 Pcs
Cycle Life (0.3c, 25℃ @ 90% DOD): >6000 Cycles
Discharge Temperature: (-20 to 65)°C
Charge Temperature: (0 to 50)°C
Storage Temperature: (-10 to 30)°C
Bluetooth (App): Optional
LCD Screen: Yes
Heating Function: Optional

Electrical Parameters

Operating Voltage Range: 21.6-28.8V
Recommend Charge Voltage: 25.4±0.20V
Max Charge Voltage: 29.2±0.20V
Recommend Charge Current: 20A
Max Continuous Charge Current: 100A
Recommend Discharge Voltage: 22.4±0.20V
Max Discharging Voltage: 20.8±0.20V
Max Continuous Discharge Current: 100A
Peak Discharge Current: 130A
