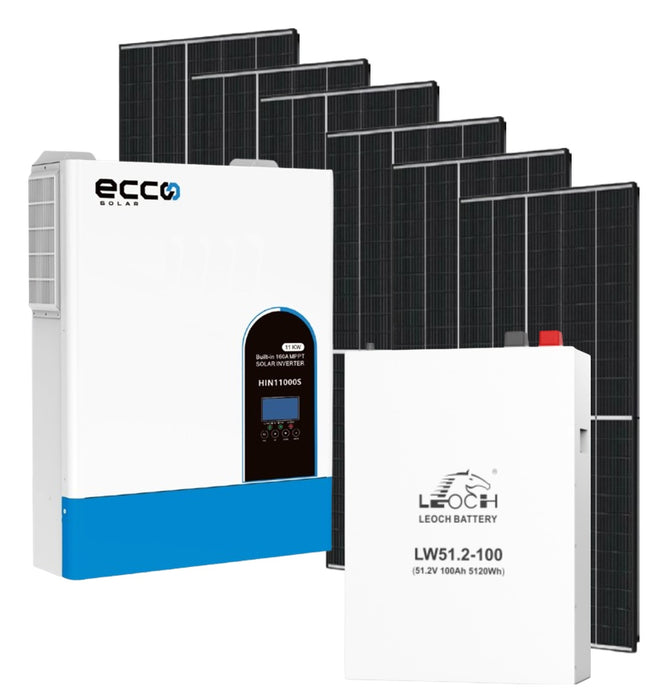

6.2KVA ECCO Hybrid Inverter and Battery 51.2V 5.12 KWH Lithium Battery Plus 6 X 460w Trina Solar Panels
Available Online & In-Store, Pay on Collection
Delivery Estimate 1-2 Business Days
6.2KVA ECCO Hybrid Inverter and Battery 51.2V 5.12 KWH Lithium Battery Plus 6 X 460w Trina Solar Panels
6.2 Kva 6200w Hybrid Inverter 48v Mppt 120A Inverter Pure Sine Wave - Ecco
This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Features
- Dual output for smart load management
- Lithium battery activation function by PV or Utility - Compatible work with LiFePO4 battery via RS485 - PV Input 500 Vdc Max
- Built-in MPPT 120A
- Capable to work without battery
- Detachable dust cover for harsh environment
- Wifi remote monitoring optional
- Support multiple output priority: UTL, SOL, SBU, SUB - EQ function to optimize battery performance and extend lifecycle
What's in the box
1 x Inverter
1 x User Manual
100ah 5.12kWh Lithium Battery LW51.2-100 Wall-Mounted Leoch 51.2V
Features
- Compact Size
- Eco-Friendly
- Long Lifespan
- Built-in BMS
- Can be used in parralel with Ecco W51100 & ELV51100 Battery.
Product Introduction
Up to 15 groups of parallel connections, flexible
capacity expansion
APP can monitor battery SOC, voltage,
temperature, and other statuses
Compatible with mainstream inverters in the
market, providing more options
Built-in BMS provides multiple protection
functions
Specifications :
Model : LW51.2-100
Nominal Voltage : 51.2 V
Rated Capacity : 100 Ah
Energy : 5.12 kWh
Discharge Ending Voltage : 43.2 V
Charging Limited Voltage : 58.4 V
Max. Charge/Discharge Current : 100 A
Weight Approx. 48 Kg
Dimensions (W*D*H) mm (inches) : 400 *560 *150 mm
Protocol : RS485/RS232/CAN
Max number of parallel connections : 15
Design life : More than 15 years
Cycle Life : More than 6000 cycles @ 80% DOD
IP Class : IP30
Case Material : SPCC
Operating Temperature Charging : 0 to +45℃ Discharging: -10 to +55℃ Storage: -20 to +60℃
Fuction : Bluetooth & WiFi
Combo Includes:
1x 100ah 5.12kWh Lithium Battery LW51.2-100 Wall-Mounted Leoch 51.2V ( 5 Years Warranty)
1x Hybrid Inverter Ecco 6.2KVA 6200W Watt MPPT(5 Years Warranty)
6x 460W Solar Panel Mono Trina Tier 1 Mono TSM-XXXNEG9R.28 460W (Black Frame)
PLEASE NOTE COURIER FOR SOLAR PANELS ARE AT YOUR OWN RISK
Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
- PLEASE NOTE COURIER FOR SOLAR PANELS ARE AT YOUR OWN RISK
ADD A Solar Installation Kit:
Solar Installation Kit for 6 Solar Panels, Inverter and Battery
