6.2KVA Inverter and Battery ECCO Combo 48V ECCO 5.12 KWH Lithium Battery - MacSell Solar Outlet

6.2KVA Inverter and Battery ECCO Combo 48V ECCO 5.12 KWH Lithium Battery

Save R 6,790.00 Save R 6,790.00
R 22,990.00
R 22,990.00 - R 22,990.00
R 22,990.00
R 16,200.00
R 16,200.00 - R 16,200.00
R 16,200.00
    Visa Mastercard mobicred Zapper Maestro PayFast Instant EFT
Availability:
in stock, ready to be shipped

Available Online & In-Store, Pay on Collection

Delivery Estimate 1-2 Business Days

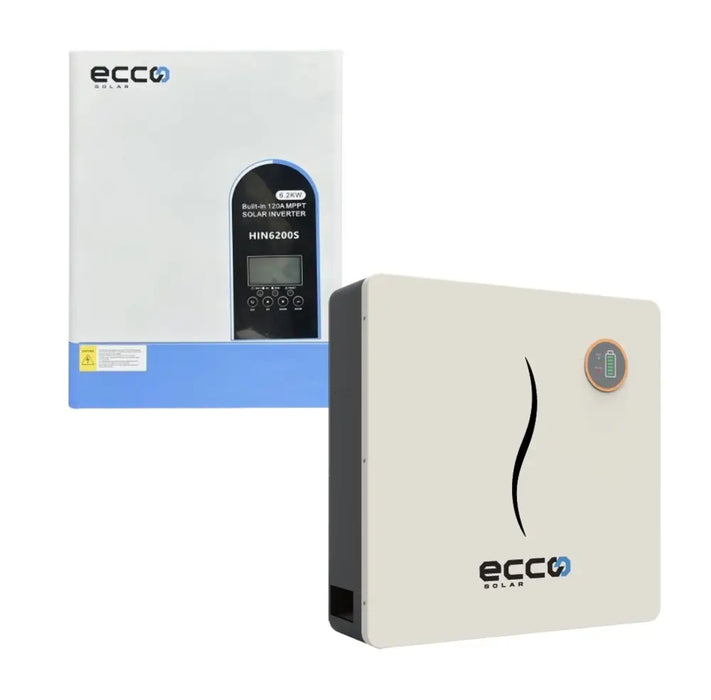

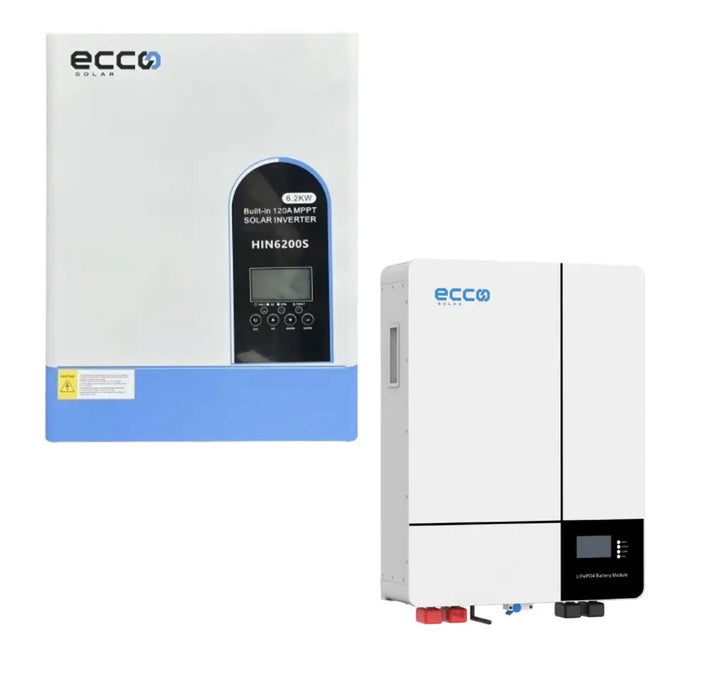

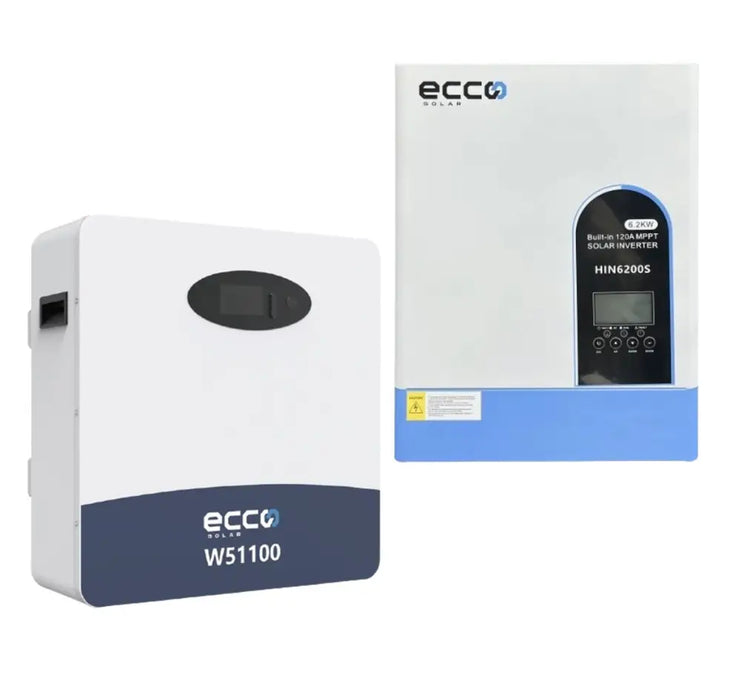

6.2KVA Inverter and Battery ECCO Combo 48V ECCO 5.12 KWH Lithium Battery



6.2 Kva 620000w Hybrid Inverter 48v Mppt 120A Inverter Pure Sine Wave - Ecco


The main difference between PWM and MPPT charge control devices is that the MPPT devices are more efficient. MPPT charge control devices have 30 % more efficient in charge efficiency according to PWM type. Panel voltage and battery voltage should be matched in PWM systems.


Features
- Dual output for smart load management
- Lithium battery activation function by PV or Utility - Compatible work with LiFePO4 battery via RS485 - PV Input 500 Vdc Max
- Built-in MPPT 120A
- Capable to work without battery
- Detachable dust cover for harsh environment
- Wifi remote monitoring optional
- Support multiple output priority: UTL, SOL, SBU, SUB - EQ function to optimize battery performance and extend lifecycle

Specifications:

Dimensions ; 438 x 312 x 122
Weight : 11kg

It is recommended to use ECCO Batteries and Solar Panels for Quality Guaranteed Results.

Important Note: This product requires installation by a qualified PV installer, the PV installer must be able to issue a Certificate of Compliance. This is to ensure that the installation is safe and correct, as well as, within the scope of relevant regulations.

What's in the box
1 x ECCO 6.2KW Inverter
1 x Connecting Cables
1 x User Guide

  • 5-Year Repair Warranty

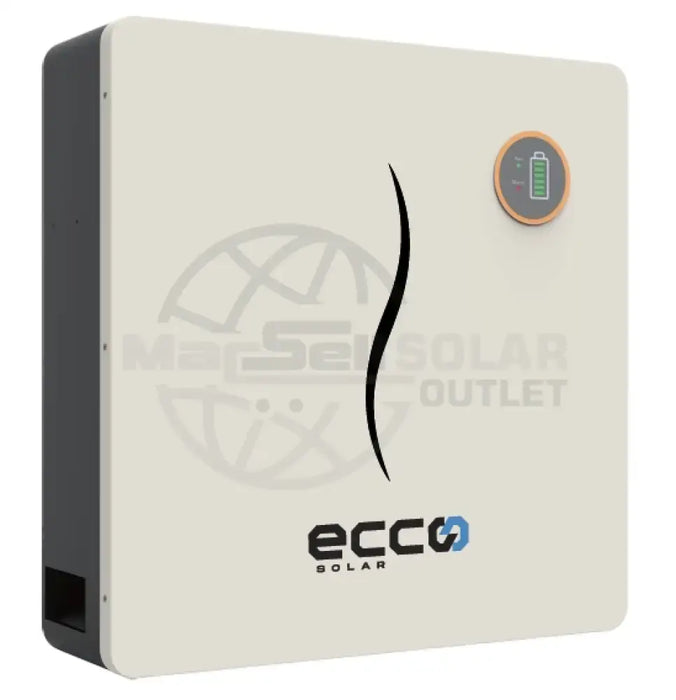

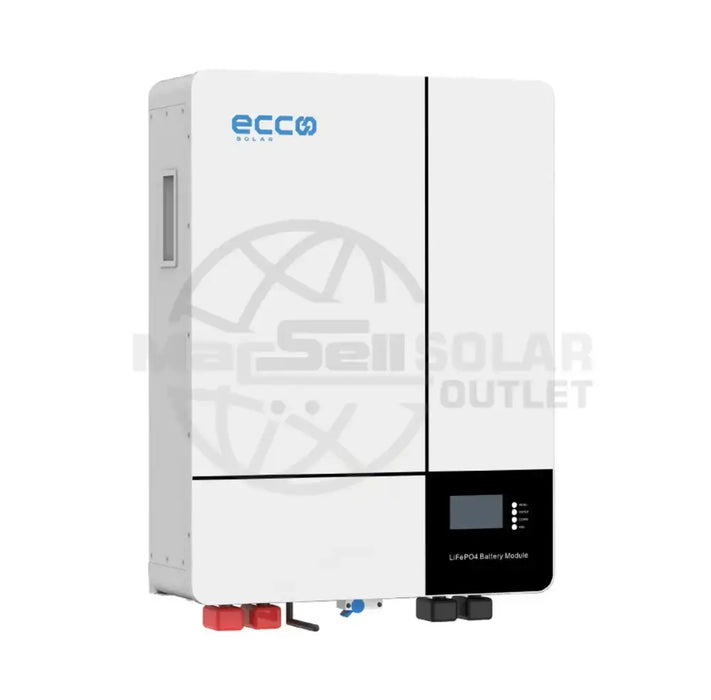

5.12kWh Lithium Battery Ecco 51.2v 100ah ME51100 Wall-Mounted


The ME Series offers a versatile and reliable power solution. Combine up to 40 units for energy capacities ranging from 2560Wh to 15360Wh. With WiFi Remote Monitoring, stay connected and in control. Whether it's wall- mounted convenience, stacked-mounting (up to 5 units) for space efficiency, or rack-mounted for industrial power management, this series offers seamless adaptability.

- Vertical-mounted only for ME51300 & ME51320
- Large capacity, high power output
- Safest lithium iron phosphate battery cell with high energy density
- Modular design: supports up to 40 units in parallel
- Support CAN & RS485 communication with mainstream inverters Local monitoring via LCD monitor
- Built-in WiFi Smart BMS Module

    Specifications:

    Nominal Voltage (V) 51.2
    Nominal Capacity (Ah) 100
    Total Power (kWh) 5.12
    Best Charging Voltage (V) 58.4 (recommended)
    Maximum Continuous Output Power (A) 100A
    Maximum Momentary Output Power (A) 100A


    Package Size (mm) 442 X 625.5 X 177
    Weight (kg) 45

    Warranties:

    5 Years Warranty
    All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
