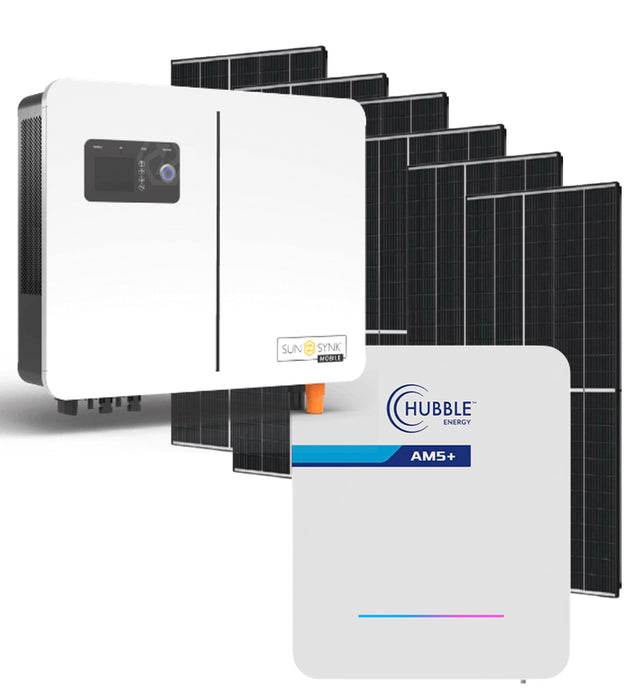

6Kw Sunsynk and Hubble AM5+ 5.12 kWh Combo Power Kit Including 6x Solar 620w JA Solar Panels
Available Online & In-Store, Pay on Collection
Delivery Estimate 1-2 Business Days
6Kw Sunsynk and Hubble AM2 5.5 kWh Combo Power Kit Including 6x Solar 620w JA Solar Panels
Sunsynk 6kW Lynks Hybrid Inverter + Wifi Dongle
With Twin MPPT technology, it maximize solar energy harvest by adjusting the power output to match the peak efficiency of your solar panels throughout the day. Supporting both lithium-ion and lead-acid batteries, the Sunsynk Mobile Lynks offers flexible battery compatibility to suit your needs. Additionally, its IP41 rating ensures protection against solid objects such as dust, safeguarding your
Battery Input Parameters
Supported Battery Type: Li-Ion or Lead-acid
Nominal Battery Voltage: 48V
Battery Input Voltage Range: 40-60V
Max. Charge Voltage: ≤60V (Configurable)
Max. Charge Current: 100A (Configurable)
Max. Discharge Current: 130A (Configurable)
Battery Capacity (Recommended): 100-2000Ah
Charge for Li-Ion Battery Pack: Communicating with BMS of Battery Pack
PV String Input Parameters
Max. DC Input Power: 4000W x 2 = 8000W
DC Input Voltage: 500V
MPPT Voltage Range: 120-450V
Start-Up Voltage: 150V
Max. Input Current: 15 x 2 = 30A (2 MPPT Channels)
AC Output Parameters (Back-Up)(Feed to Essential Load)
Max. Output Power: 6000W
Max. Output Apparent Power: 6000VA
Peak Output Apparent Power: 12000VA
Max. Output Current: 26A
Nominal Output Voltage: 220/230/240Vac Single-Phase (Configurable)
Nominal Output Frequency: 50/60Hz (+/-0.2%) (Configurable)
Max. Bypass Current: 40A
Shift Time (Bypass and Inverter): 10ms
Output THDv (Resistor Load): <3%
AC Input Parameter (On-Grid) (Bypass to Essential Load & Charge the Battery/Feed to Home Load)
Max. Input Power: 6000W
Max. Output Power (Feed to Home Load): 6000W
Max. Apparent Input Power: 6000VA
Max. Apparent Output Power: 6000VA
Nominal Input/Output Voltage: 220/230/240Vac (Auto Adjusted to Fit Home Grid)
Nominal Input/Output Frequency: 50/60Hz (Auto Adjusted to Fit Home Grid)
Max. Bypass Current: 40A
Shift Time (Bypass and Inverter): 10ms
Hubble AM-5+ LiFePO4 5.12kWh 51.2V Lithium Battery (Unlimited Cycles)
Features:
+ Unlimited Cycle Warranty (Ts & Cs Apply)
+ Prismatic LiFePO4 Cells
+ 1C high Performance Lithium Battery
+ Advanced BMS With Current Limiting Function
+ Easy Wall Mount Or Shelf Rack Installation
+ Informative LED Display Strip
+ High Cycle And Service Life
+ Compatible With Most Inverters And Chargers
+ Heavy Duty Side Handles For Easy Handling
And Mounting On The Wall
+ Built In Protection For Over-Charge, OverDischarge And Over-Temperature
+ CAN Bus, Fully Integrates And Communicates
With Leading Inverter Brands
+ Integrated Cloudlink 24/7 Monitoring Included
+ Compatible with AM5 (with Cloudlink)
Technical Specifications:
Model Hubble AM5+
*Rated Capacity (5HR) 100 Ah
Nominal Voltage 51.2 V
Design Capacity 5.12 kWh
Equalized Charge Voltage 55.2 V
Max. Continuous Charging Current 100 A
Max. Continuous Discharging Current 100 A
C Rating 1.0 C
Depth of Discharge 100%
Weight Approx. 53 Kg
Monitoring Built in Cloudlink
Parallel Parallel connection up to 225 packs with full communications
Dimensions (WxDxH) mm 500mm x 153mm x 600mm (W x D x H)
Ports CAN-bus, Battery Link Ports
Cells Prismatic LiFePO4
Design Life +/- 15 Years
Cycle Life @ 1C Unlimited cycles within the Hubble Lithium 10 year warranty (Ts & Cs Apply)
Certification CE IEC UN38.3
Outer Package Material White bake lacquer steel case
Operating Temperature Charging: -10 to +50°C | Humidity: 15% to 75% | Storage: 10 to +50°C
Protection Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting
Combo includes:
- 1x Hubble AM-5+ LiFePO4 5.12kWh 51.2V Lithium Battery (Unlimited Cycles) 10 Years Warranty
-
1x Sunsynk Inverter 6kW Lynks Hybrid Inverter + Wifi Dongle (5 Years Warranty)

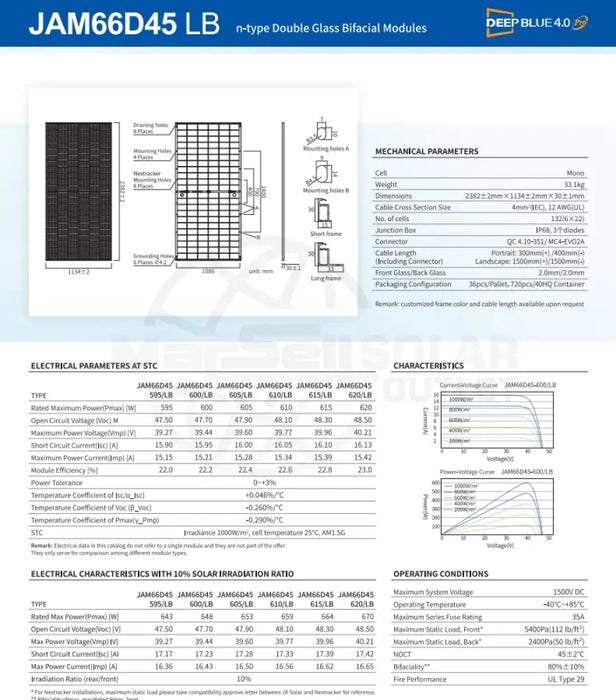

- 6X JA 620W Tier 1 Bifacial Mono Solar Panel
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC, and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
