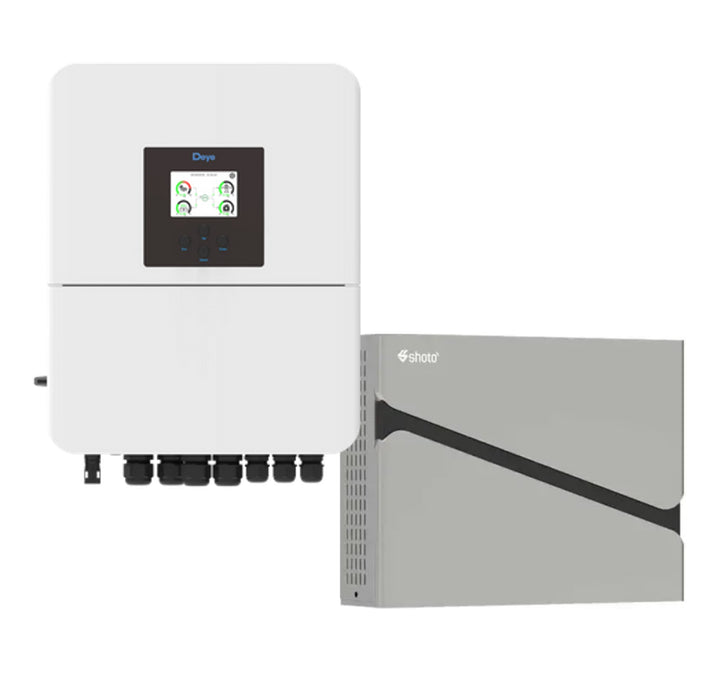

Deye 5KW MPPT and Shoto 5.12 KWh Combo Backup Power Kit+Wifi
Available Online & In-Store, Pay on Collection
Delivery Estimate 1-2 Business Days
Deye 5KW MPPT and Shoto 5.12 KWh Combo Backup Power Kit+Wifi

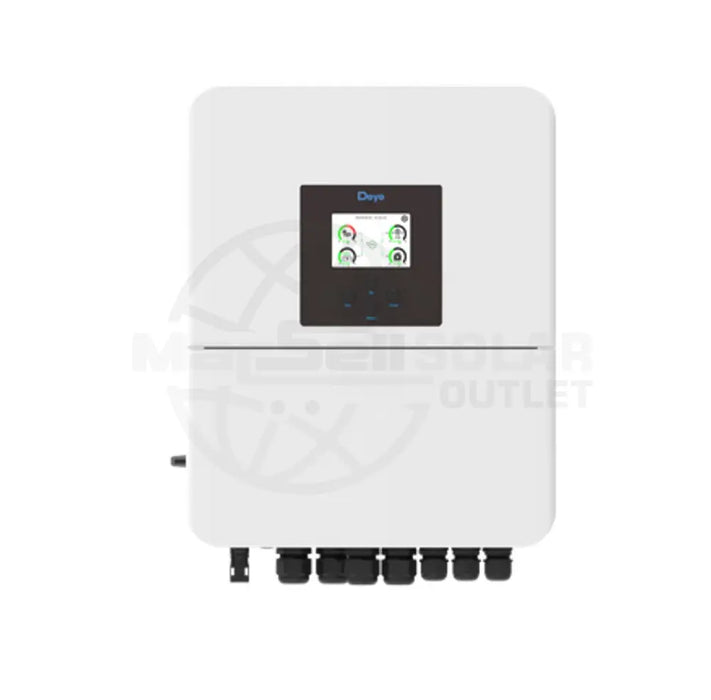

Deye 5KW Hybrid Inverter with Wifi Dongle
Colorful touch LCD, IP65 protection degree AC couple to retrofit existing solar system Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel Max. charging/discharging current of 140A 6 time periods for battery charging/discharging Support storing energy from diesel generator
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range(V): 40-60
Max.Charging Current(A): 120
Max.Discharging Current(A): 120
Charging Strategy for Li-ion Battery: Self-adaption to BMS
PV String Input Data
Max. PV Access Power (W):10000
Max PV Input Power(W): 8000
Max PV Input Voltage(V): 500
Start-up Voltage(V): 125
MPPT Voltage Range(V): 150-425
Rated PV Input Voltage(V): 370
Max Input Short-Circuit Current(A): 27+27
Max Operating PV Input Current(A): 18+18
No.of MPP Trackers/No.of String Per MPP Tracker: 2/1+1
Height (mm) | 470 |
Width (mm) | 376 |
Depth (mm) | 241.5 |
Weight (kg) | 19 |

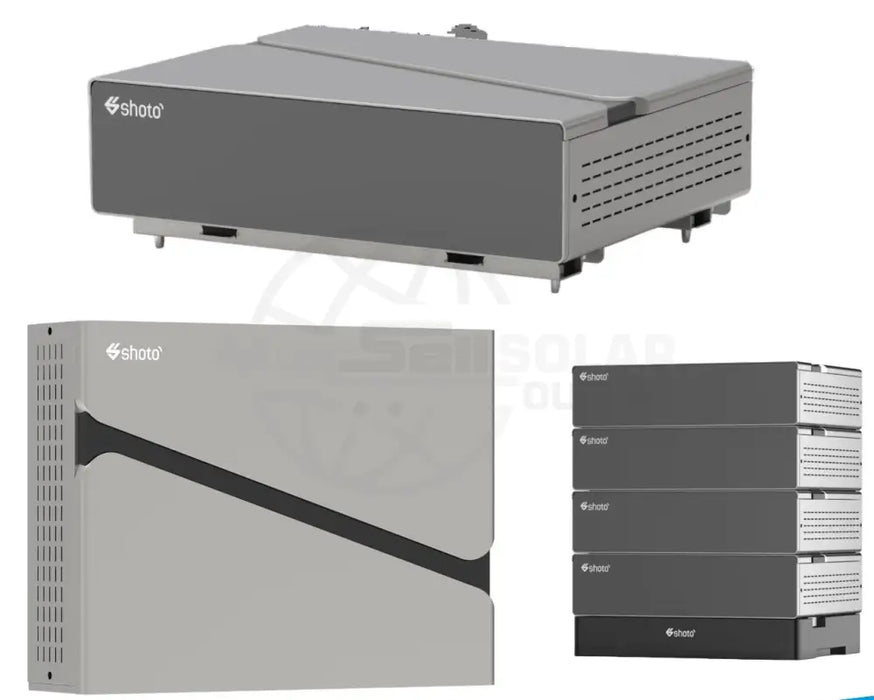

Shoto Lithium Iron Phosphate LiFePO4 51.2V 5.12KWH HP10-box5 Pro
- Advanced LiFePO₄ Battery Technology
- High Energy Density & Scalable Design
- Intelligent Battery Management System (BMS) for Safety & Optimization
- High Efficiency & Fast Charging
- Seamless Integration & Wide Compatibility
- Nominal Capacity (kWh): 5.12
- Rated capacity: 100AH
- Reliable Performance
- Long Lifespan
Charge / Discharge Current • Max 100A (1C) • Recommended 50A (0.5C)
Compatible Inverters • Deye / Goodwe / Luxpower / Victron / SMA / Growatt / Sofar / SRNE / TBB / Megarevo / Soruide / Sungrow / Solis / Voltronic / Epever .
Technical Specifications
- Battery Chemistry: LiFePO₄ (Lithium Iron Phosphate)
- Nominal Voltage: 48V
- Capacity: 100Ah
- Energy Storage: 5.12kWh
- Cycle Life: >6000 cycles at 80% DoD
- Max Charge Voltage: 54V
- Discharge Cutoff Voltage: 42V
- Maximum Charge/Discharge Current: 100A
- Round-Trip Efficiency: >95%
- Communication Protocols: RS485, CAN
- Operating Temperature: -20°C to 55°C
- Scalability: Parallel & Series connections supported
Combo includes:
-
1x Deye 5kwh Hybrid Inverter Including Wifi Dongle
(5 Years Warranty) -
Shoto Lithium Iron Phosphate LiFePO4 51.2V 5.12KWH HP10-box5 Pro (10 Years Warranty)
- Battery cables and brackets included
