LuxPower 12kW (SNA12000) and Dyness 14.3KW Lithium Battery Plus 8 X 610W JA Solar Panels - MacSell Solar Outlet

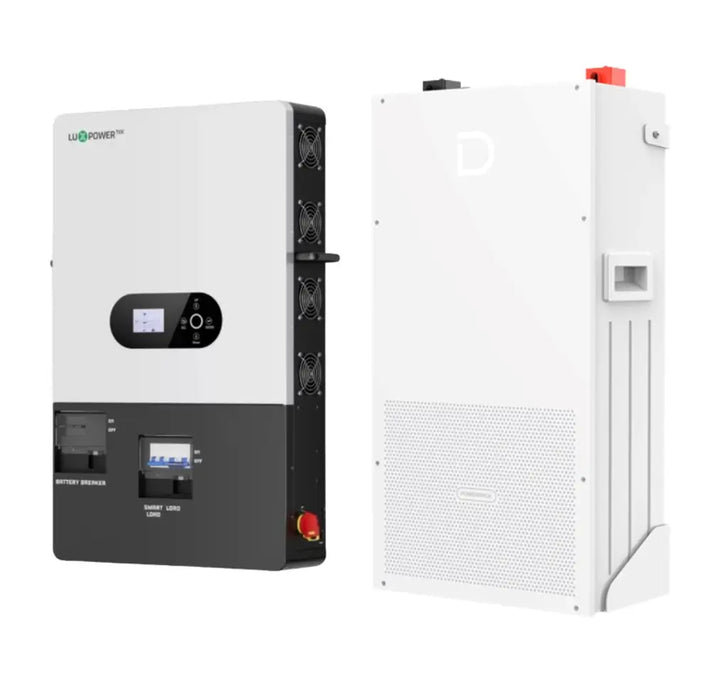

LuxPower 12kW (SNA12000) and Dyness 14.3KW Lithium Battery Power Combo

Save R 1,900.00 Save R 1,900.00
R 52,100.00
R 52,100.00 - R 52,100.00
R 52,100.00
R 50,200.00
R 50,200.00 - R 50,200.00
R 50,200.00
    Visa Mastercard mobicred Zapper Maestro PayFast Instant EFT
Availability:
in stock, ready to be shipped

Available Online & In-Store, Pay on Collection

Delivery Estimate 1-2 Business Days

LuxPower 12kW (SNA12000) and Dyness 14.3KW Lithium Battery Power Combo

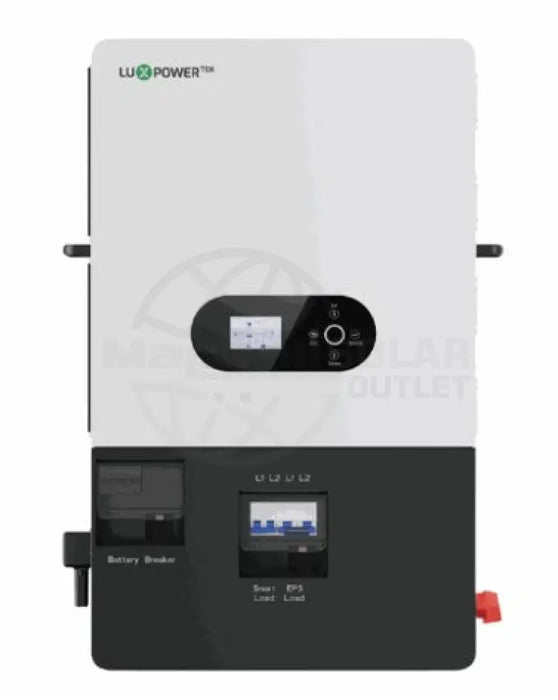

LuxPower 12kW (SNA12000) Single Phase Hybrid Inverter

General Data
• 2 MPPT with 4 Strings, Maximum 24kW PV input
• Maximum Charging / Discharging Current 250A
• Off-Grid application with 12kW Output Power
• Dual AC Ooutput Ports for multiple load connections
• Integrated Load and Battery Breaker
• PV, AC & Generator wake up Battery
• Supports up to 16 Units in Parallel
• Dedicated Generator Port
• Up to 19.2kW Gen / AC Coupling Input
• Auto Generator Start and Stop control

General

  • Model: SNA 14000 Eco Hybrid
  • Battery voltage: 48VDC.

Features:

  • 2 MPPTs with 4 strings, Max. 24kW PV input
  • Max. charging and discharging current: 250A
  • Off-grid application for high demand with 12kW output power
  • Dual AC output ports for multiple load connections
  • Separate GEN port
  • -Up to 19.2kW Gen/AC coupling input
  • -Auto generator start and stop control
  • Integrated Design with Load and Battery Breaker
  • PV or AC or Generator wake up battery

Inverter Output

  • Waveform: Pure Sinewave
  • Rated Power: 14000W
  • Parallel Capability: Yes
  • AC Voltage Regulation (Battery Mode): 230VAC ± 5% @ 50/60Hz
  • Surge Power: 24000w
  • Efficiency (Peak): 93.5%
  • Transfer Time: <10ms @ Single and Parallel

Solar Charger

  • Maximum PV Array Power: 24000W.(12000w per MPPT)
  • 2 MPPT Controllers with 2 Inputs each
  • MPPT Range @ Operating Voltage: 120VDC ~44O VDC.
  • Maximum PV Array Open Circuit Voltage: 480VDC.
  • Start Up Voltage: 100vdc
  • Maximum Efficiency: 98%.
  • Maximum Solar Charge Current: 35A/35A.

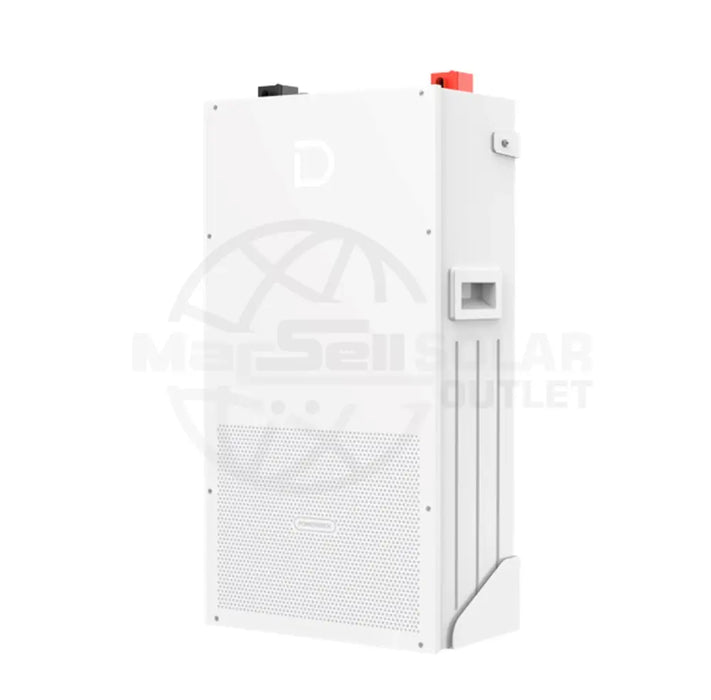

Dyness 14.3KW Lithium Battery Power Brick

The Dyness PowerBrick 14.3kWh Lithium Battery is a high-performance energy storage solution designed for residential applications. It utilizes advanced LiFePO4 technology, ensuring maximum safety and longevity with an unlimited cycle life warranty over 10 years. Experience the Dyness Power Brick difference. Order your Dyness 14.3kW system now!

Dyness 14.3KW Lithium Battery Features

  • Continuous discharge current 200A, maximum continuous discharge power 10kW.
  • Unlimited Cycles / 10Years.
  • Maximum can be expanded to 716.8kWh（no HUB).
  • WIFI Module.
  • Power Supply Systems,&nbsp;Solar Energy Storage Systems.

 Combo includes:

  • 1x Dyness 14.3KW Lithium Battery Power Brick (10-year warranty)
  • 1x LuxPower 12kW (SNA12000) Single Phase Hybrid Inverter (2 year warranty)
  • Battery Cables And Brackets Included
    Warranties:
    All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC, and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
