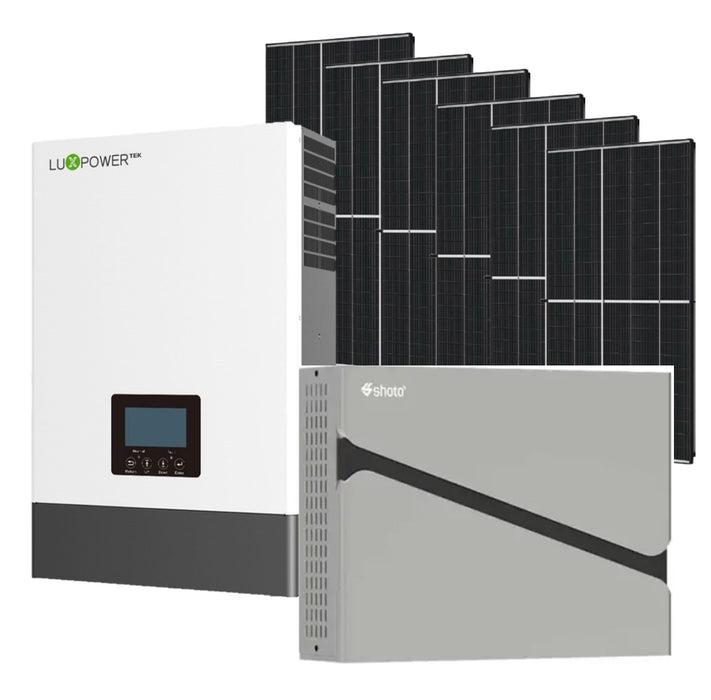

Luxpower 5KVA Inverter and Battery Combo Shoto 5.12KW Lithium Battery + 6X 460W Canadian Solar Panels - MacSell Solar Outlet

Luxpower 5KVA Inverter and Battery Combo Shoto 5.12KW Lithium Battery + 6X 460W Canadian Solar Panels

Save R 2,300.00 Save R 2,300.00
R 31,500.00
R 31,500.00 - R 31,500.00
R 31,500.00
R 29,200.00
R 29,200.00 - R 29,200.00
R 29,200.00
    Visa Mastercard mobicred Zapper Maestro PayFast Instant EFT
Availability:
in stock, ready to be shipped

Available Online & In-Store, Pay on Collection

Delivery Estimate 1-2 Business Days

Luxpower 5KVA Inverter and Battery Combo Shoto 5.12KW Lithium Battery + 6X 460W Canadian Solar Panels

LuxPower 5kW Inverter – SNA5000 Hybrid Inverter

General:
Model: SNA 5000 WPV
Warranty: 2years.
Battery voltage: 48VDC.

Output:
Rated power: 5000W/5000VA.
Parallel capacity: YES.
Normal output voltage: 230/240, Split phase 220/110 Vac.
Normal output frequency: 50/60Hz.
Surge power: 10000VA.
Switch time: 10ms.
Waveform: Pure sine wave.

Battery:
Battery Type: Lithium/Lead-Acid.
Normal Voltage: 51.2V/48V.
Max. Charge Voltage: 59V.

Solar:
Max. Recommended PV Power: 3200W/3200W.
MPPT Tracker: 2.
Max. PV Open Circuit Voltage: 480Vdc.
MPPT Voltage Range: 100-385Vdc.
Max. Solar Charge Current: 100A.
Max. Solar Input Current: 13A/13A.
Max. MPPT Eiciency: >98%.
Parallel MPPT Charger: YES.

Shoto Lithium Iron Phosphate LiFePO4 51.2V 5.12KWH HP10-box5 Pro

  • Battery Chemistry: LiFePO₄ (Lithium Iron Phosphate)
  • Nominal Voltage: 48V
  • Capacity: 100Ah
  • Energy Storage: 5.12kWh
  • Cycle Life: >6000 cycles at 80% DoD
  • Max Charge Voltage: 54V
  • Discharge Cutoff Voltage: 42V
  • Maximum Charge/Discharge Current: 100A
  • Round-Trip Efficiency: >95%
  • Communication Protocols: RS485, CAN
  • Operating Temperature: -20°C to 55°C
  • Scalability: Parallel & Series connections supported

 Combo includes:



ADD A Solar Installation Kit:

Solar Installation Kit for 6 Solar Panels, Inverter and Battery



    Warranties:
    All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC, and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
