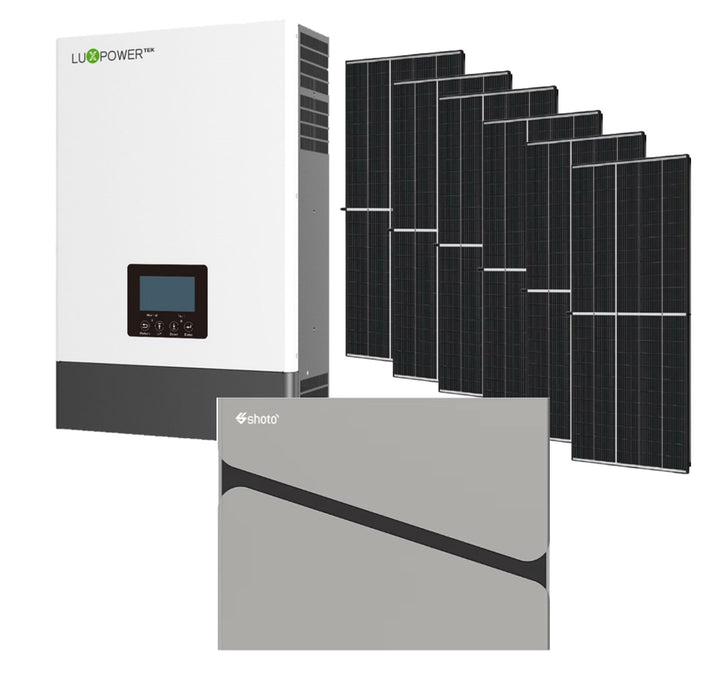

Luxpower 6KVA Inverter and Battery Combo Shoto 5.12KW Lithium Battery + 6X 460W Canadian Solar Panels
Save R 4,100.00
Original price
R 34,000.00
Original price
R 34,000.00
-
Original price
R 34,000.00
Original price
R 34,000.00
Current price
R 29,900.00
R 29,900.00
-
R 29,900.00
Current price
R 29,900.00
Availability:
in stock, ready to be shipped
Available Online & In-Store, Pay on Collection
Delivery Estimate 1-2 Business Days
Luxpower 6KVA Inverter and Battery Combo Shoto 5.12KW Lithium Battery + 6X 460W Canadian Solar Panels
Luxpower SNA6000 Solar Inverter Offgrid WPV(with CT) 6000w 48v+ Wifi Dongle
- Waveform: Pure Sine-Wave.
- Rated Power: 6000W.
- Parallel Capability: Yes, 16 units.
- AC Voltage Regulation (Battery Mode): 230VAC ± 5% @ 50/60Hz.
- Surge Power: 9000w.
- Efficiency (Peak): 93%.
- Transfer Time: 10 ms (For Personal Computers); 20 ms (For Home Appliances).
Solar Charger
- Maximum PV Array Power: 8000W.(4000w per MPPT)
- 2 MPPT Controllers
- MPPT Range @ Operating Voltage: 120VDC ~385 VDC.
- Maximum PV Array Open Circuit Voltage: 480VDC.
- Start Up Voltage: 100vdc
- Maximum Efficiency: 98%.
- Maximum Solar Charge Current: 17A/17A.
AC Charger
- Charge Current: 80A.
- AC Input Voltage: 230 VAC.
- Selectable Voltage Range: 110-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances).
- Frequency Range: 50Hz/60Hz (Auto sensing)
Shoto Lithium Iron Phosphate LiFePO4 51.2V 5.12KWH HP10-box5 Pro
Technical Specifications
- Battery Chemistry: LiFePO₄ (Lithium Iron Phosphate)
- Nominal Voltage: 48V
- Capacity: 100Ah
- Energy Storage: 5.12kWh
- Cycle Life: >6000 cycles at 80% DoD
- Max Charge Voltage: 54V
- Discharge Cutoff Voltage: 42V
- Maximum Charge/Discharge Current: 100A
- Round-Trip Efficiency: >95%
- Communication Protocols: RS485, CAN
- Operating Temperature: -20°C to 55°C
- Scalability: Parallel & Series connections supported
Combo includes:
- 1x Shoto Lithium Iron Phosphate LiFePO4 51.2V 5.12KWH HP10-box5 Pro (10-year warranty)
- 1x Luxpower SNA6000 Solar Inverter Offgrid WPV(with CT) 6000w 48v+ Wifi Dongle (2 year warranty)
- 6x Canadian 460w Mono Solar Panel HiKu6 Mono
-
(Courier for panels are at your own risk)
ADD A Solar Installation Kit:
Solar Installation Kit for 6 Solar Panels, Inverter and Battery
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC, and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
