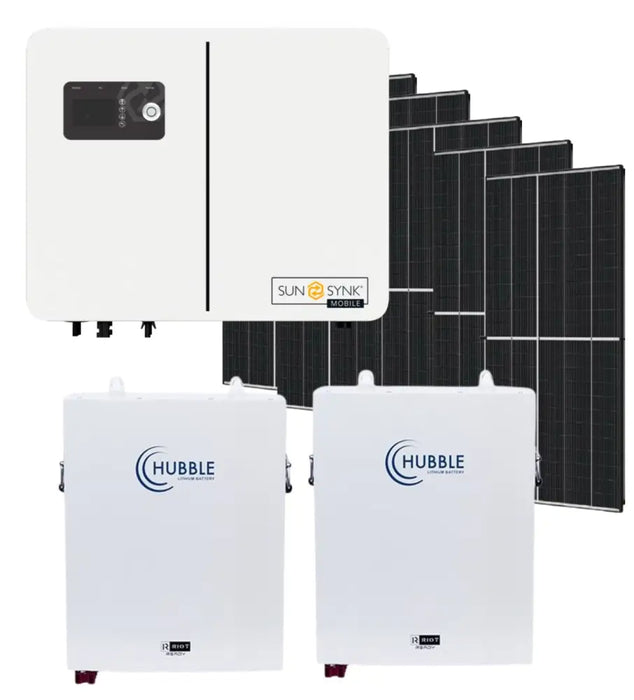

Sunsynk 8KVA & 2X Hubble AM5 5.12 KWh Combo Kit 6x Solar 620W Solar Panels

Sunsynk 8KVA & 2X Hubble AM5 5.12 KWh Combo Kit 6x Solar 620W Solar Panels

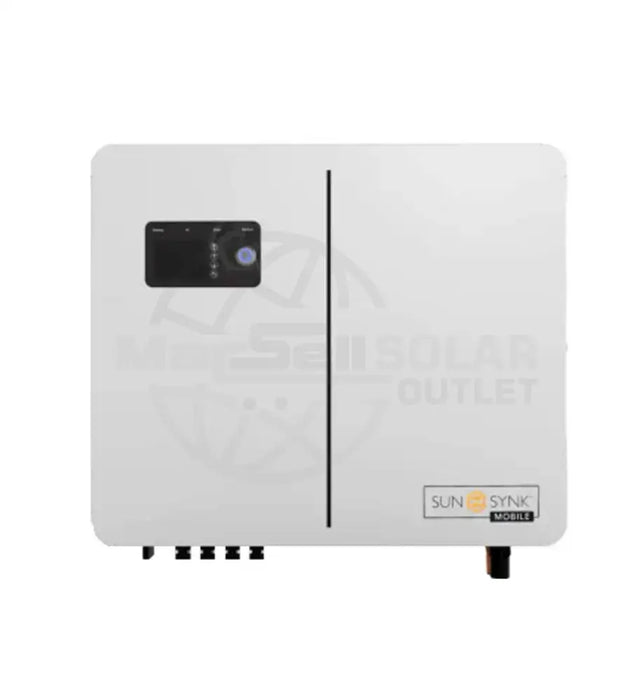

Sunsynk 8kW Lynks Hybrid Inverter

Model Lynks 8kW
Battery Input Parameters
Supported Battery Type Li-Ion or Lead-acid
Nominal Battery Voltage 48V
Battery Input Voltage Range 40~60V
Max. Charge Voltage ≤60V (Configurable)
Max. Charge Current 150A (Configurable)
Max. Discharge Current 180A (Configurable)
Battery Capacity (Recommended) 100~2000Ah
Charge for Li-Ion Battery Pack Communicating with BMS of Battery Pack
PV String Input Parameters
Max. DC Input Power 10000W
DC Input Voltage 500V
MPPT Voltage Range 120-450V
Start-up Voltage 150V
Max. Input Current 23A x 2 = 46A (2 MPPT Channels)
AC Output Parameters (Back-Up)(Feed to Essential Load)
Max. Output Power 8000W
Max. Output Apparent Power 8000VA
Peak Output Apparent Power 16000VA
Max. Output Current 36A
Nominal Output Voltage 220/230/240Vac Single-Phase (Configurable)
Nominal Output Frequency 50/60Hz (+/-0.2%) (Configurable)
Max. Bypass Current 42A
Shift Time (Bypass and Inverter) 10ms
Output THDv (Resistor Load) <3%
AC Input Parameter (On-Grid)(Bypass to Essential Load & Charge the Battery/Feed to Home Load)
Max. Input Power 8000W
Max. Output Power (Feed to Home Load) 8000W
Max. Apparent Input Power 8000VA
Max. Apparent Output Power 8000VA
Nominal Input/Output Voltage 220/230/240Vac (Auto Adjusted to Fit Home Grid)
Nominal Input/Output Frequency 50/60Hz (Auto Adjusted to Fit Home Grid)
Max. Bypass Current 42A
Shift Time (Bypass and Inverter) 10ms
Efficiency
Max. Efficiency 97.6%
Max. Battery to Load Efficiency 94.0%
Europe Efficiency 97.6%
MPPT Efficiency 99.9%

Hubble AM-5+ LiFePO4 5.12kWh 51.2V Lithium Battery (Unlimited Cycles)

Features:

+ Unlimited Cycle Warranty (Ts & Cs Apply)
+ Prismatic LiFePO4 Cells
+ 1C high Performance Lithium Battery
+ Advanced BMS With Current Limiting Function
+ Easy Wall Mount Or Shelf Rack Installation
+ Informative LED Display Strip
+ High Cycle And Service Life
+ Compatible With Most Inverters And Chargers
+ Heavy Duty Side Handles For Easy Handling
And Mounting On The Wall
+ Built In Protection For Over-Charge, OverDischarge And Over-Temperature
+ CAN Bus, Fully Integrates And Communicates
With Leading Inverter Brands
+ Integrated Cloudlink 24/7 Monitoring Included
+ Compatible with AM5 (with Cloudlink)

Technical Specifications:

Model Hubble AM5+
*Rated Capacity (5HR) 100 Ah
Nominal Voltage 51.2 V
Design Capacity 5.12 kWh
Equalized Charge Voltage 55.2 V
Max. Continuous Charging Current 100 A
Max. Continuous Discharging Current 100 A
C Rating 1.0 C
Depth of Discharge 100%
Weight Approx. 53 Kg
Monitoring Built in Cloudlink
Parallel Parallel connection up to 225 packs with full communications
Dimensions (WxDxH) mm 500mm x 153mm x 600mm (W x D x H)
Ports CAN-bus, Battery Link Ports
Cells Prismatic LiFePO4
Design Life +/- 15 Years
Cycle Life @ 1C Unlimited cycles within the Hubble Lithium 10 year warranty (Ts & Cs Apply)
Certification CE IEC UN38.3
Outer Package Material White bake lacquer steel case
Operating Temperature Charging: -10 to +50°C | Humidity: 15% to 75% | Storage: 10 to +50°C
Protection Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting

Combo includes:

-1x Sunsynk 8kW Lynks Hybrid Inverter

-2x Hubble AM-5+ LiFePO4 5.12kWh 51.2V Lithium Battery (Unlimited Cycles) 10 Year Warranty

-6x JA Solar 620W Mono (12 Years Product Warranty)

-Battery Cables And Brackets Included
