Sunsynk 8KW MPPT Plus 2X Shoto 5.12 KWh Lithium Batteries

Sunsynk 8KW MPPT Plus 2X Shoto 5.12 KWh Lithium Batteries Combo

R 49,300.00 - R 49,300.00
R 49,300.00
R 49,300.00 - R 49,300.00
R 49,300.00
    Visa Mastercard mobicred Zapper Maestro PayFast Instant EFT
Availability:
in stock, ready to be shipped

Available Online & In-Store, Pay on Collection

Delivery Estimate 1-2 Business Days

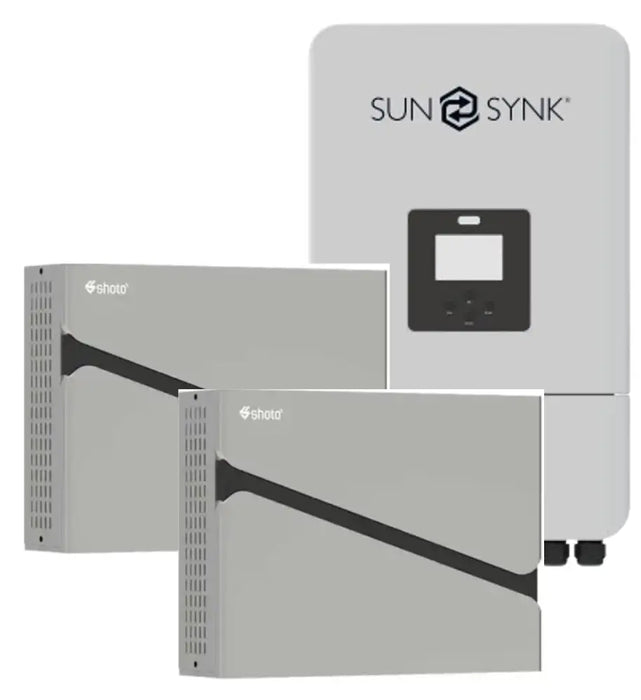

Sunsynk  8KW MPPT Plus 2X Shoto 5.12 KWh Lithium Batteries Combo



8KW MPPT Sunsynk Load Shedding 2X Shoto 5.12 KWh Combo Backup Power Kit+Wifi

HYBRID INVERTER SOLAR KIT COMBO

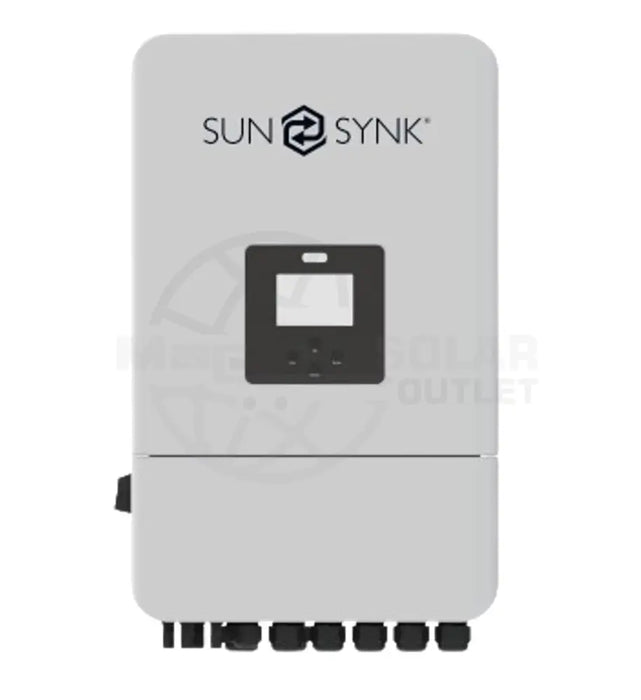

Inverter Specifications:

Sunsynk 8Kw Lv Hybrid Inverter 8KW SG05LP1 EU SM2

attery Input Date
Battery Type :  Lead-acid or Li-Ion
Battery Voltage Range : 40Vd.c ~ 60Vd.c
Max. Charging/Discharging Current : 190Ad.c (max.)

PV String Input Data
Max. PV Access Power : 16000W
Max. PV Input Power  : 12800W
Max. PV Input Voltage : 500V
Start-up Voltage : 125V
PV Input Voltage Range : 125~500V
MPPT Voltage Range : 150-425V
Full Load MPPT Voltage Range  : 200-425V
Max. Operating PV Input Current : 32A+32A
No. of MPPT/No. of Strings per MPPT : 2/2+2

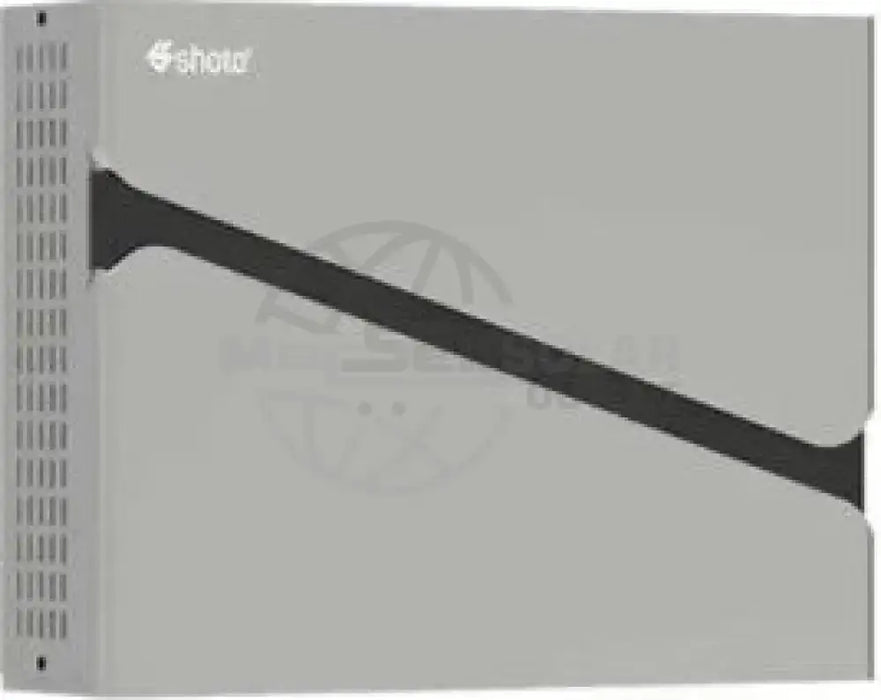

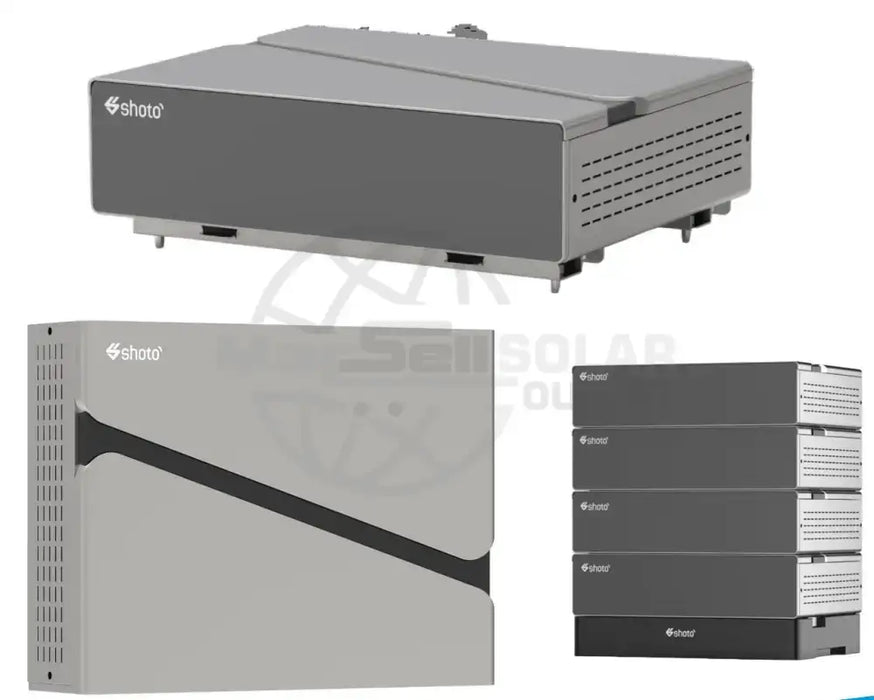

Battery Specifications:

  • Battery Chemistry: LiFePO₄ (Lithium Iron Phosphate)
  • Nominal Voltage: 48V
  • Capacity: 100Ah
  • Energy Storage: 5.12kWh
  • Cycle Life: >6000 cycles at 80% DoD
  • Max Charge Voltage: 54V
  • Discharge Cutoff Voltage: 42V
  • Maximum Charge/Discharge Current: 100A
  • Round-Trip Efficiency: >95%
  • Communication Protocols: RS485, CAN
  • Operating Temperature: -20°C to 55°C
  • Scalability: Parallel & Series connections supported

Combo includes:

  • 2x Shoto Lithium Iron Phosphate LiFePO4 51.2V 5.12KWH HP10-box5 Pro (10-years warranty)

  • 1x Sunsynk 8Kw Lv Hybrid Inverter 8KW SG05LP1 EU SM2 ( 5 Years Warranty)

  • Battery cables and brackets included
