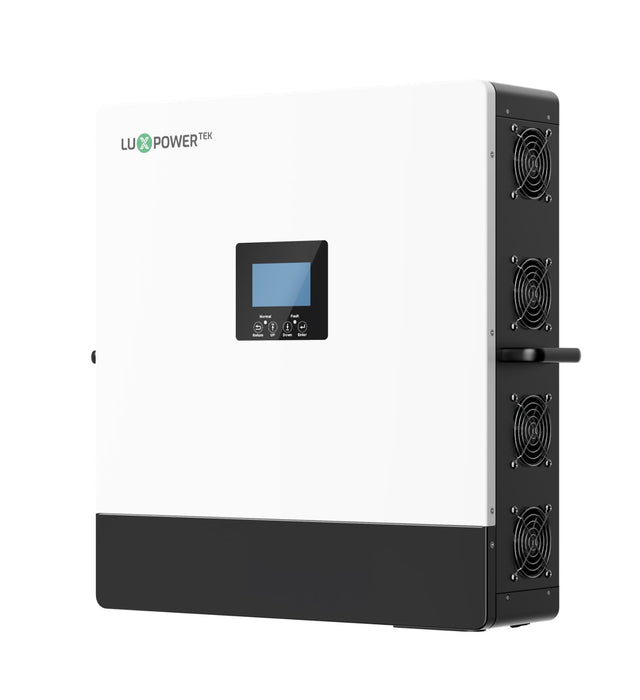

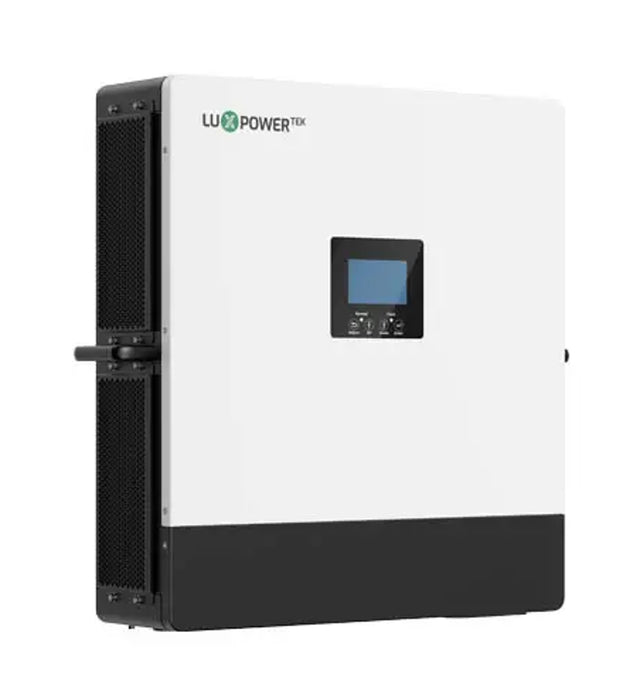

Luxpower 14kW Single Phase Eco Hybrid Inverter SNA2-EU-LT 14K
Available Online & In-Store, Pay on Collection
Delivery Estimate 1-2 Business Days
Luxpower 14kW Single Phase Eco Hybrid Inverter SNA2-EU-LT 14K
General Data :
Max. PV input: 24kW with 2 MPPTs
Max. charging and discharging current: 250A
Support up to 16 units in parallel for on/off grid
Lite Design for Easier Installation
Support Hybrid Working Modes
Intelligent Operating Mode to Lower Energy Costs & Quick ROI
Separate Gen Port for
- Auto start-stop
- Working with the existing grid-tied system
- Smart load management

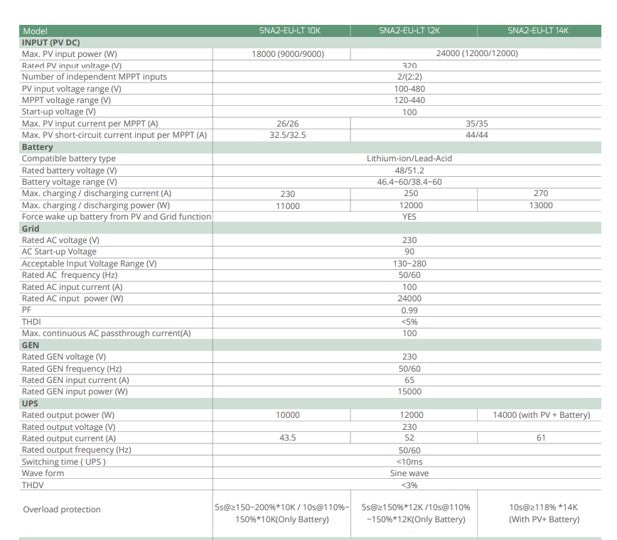

Specifications :
INPUT (PV DC)
Max. PV input power (W) : 24000 (12000/12000)
Rated PV input voltage (V) : 320
Number of independent MPPT inputs : 2/(2:2)
PV input voltage range (V) : 100-480
Grid
Rated AC voltage (V) : 230
AC Start-up Voltage : 90
Acceptable Input Voltage Range (V) : 130~280
Battery
Compatible battery type : Lithium-ion/Lead-Acid
Rated battery voltage (V) ; 48/51.2
Battery voltage range (V) : 46.4~60/38.4~60

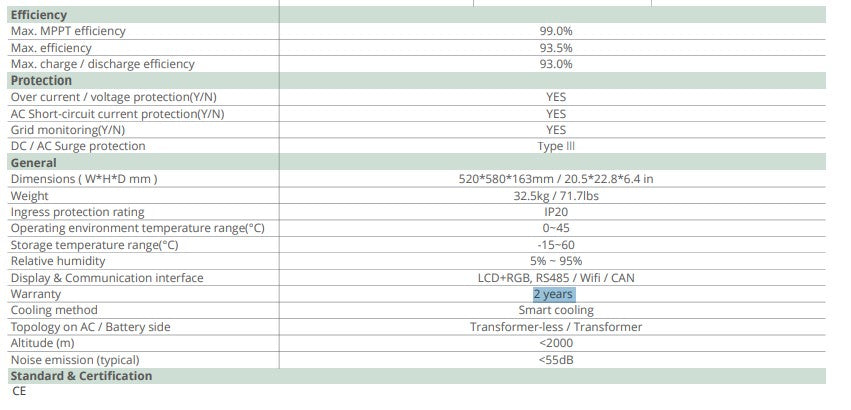

General
Dimensions ( W*H*D mm ) : 520*580*163mm / 20.5*22.8*6.4 in
Weight : 32.5kg / 71.7lbs
Warranty : 2 years
