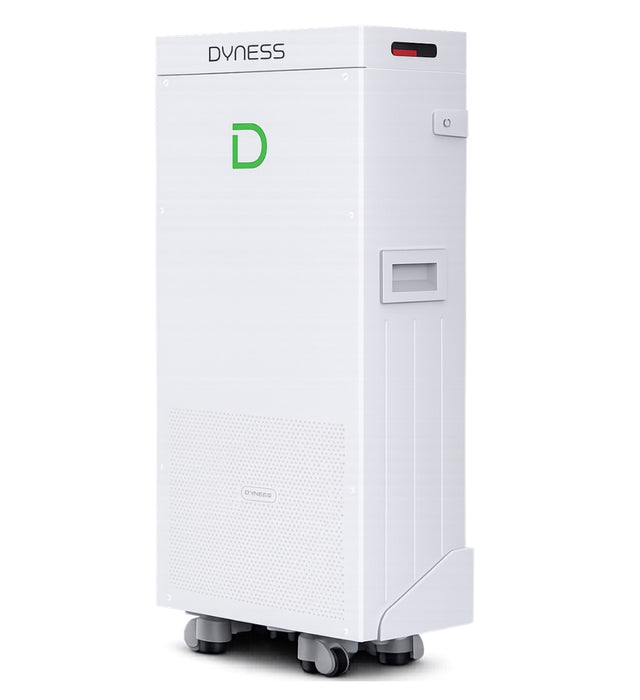

DYNESS PowerBrick Max 16.076kWh LV Lithium Battery(51.2V/314Ah)
Available Online & In-Store, Pay on Collection
Delivery Estimate 1-2 Business Days
DYNESS PowerBrick Max 16.076kWh LV Lithium Battery(51.2V/314Ah)
Powerbrick 14kwh & 16kwh can be mixed without LV link

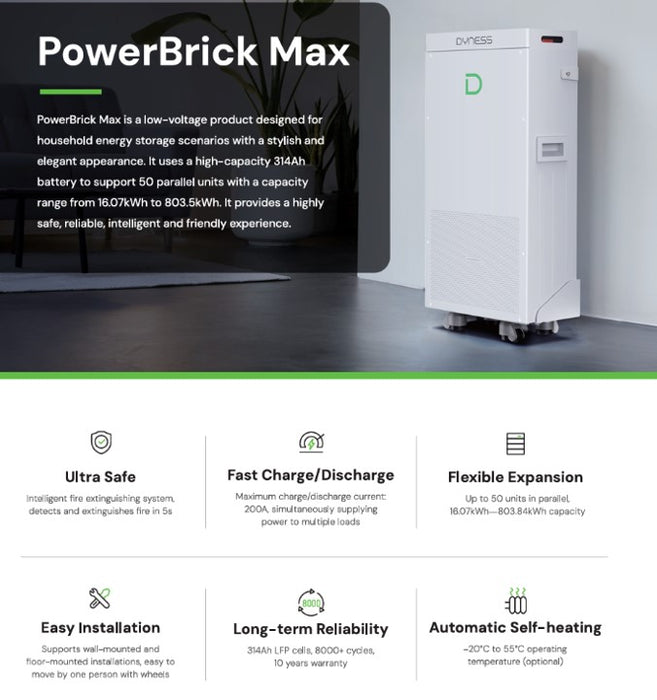

PowerBrick Max is a low-voltage product designed for household energy storage scenarios with a stylish and elegant appearance. It uses a high-capacity 314Ah battery to support 50 parallel units with a capacity range from 16.07kWh to 803.5kWh. It provides a highly safe, reliable, intelligent and friendly experience

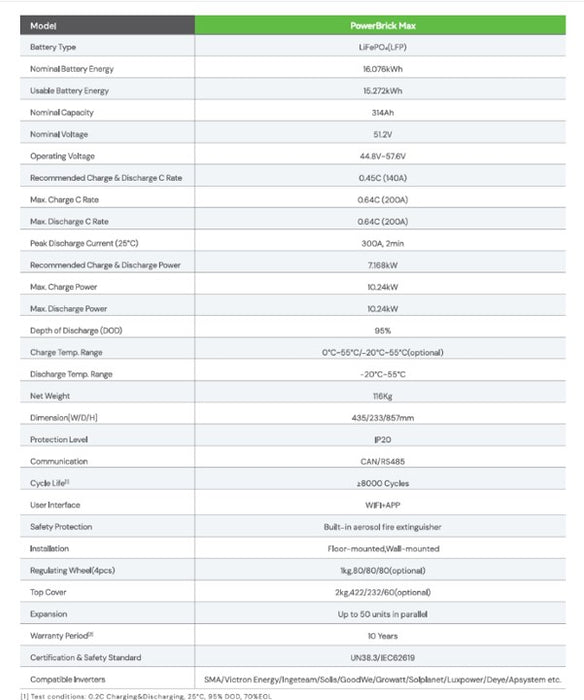

Model: PowerBrick Max
Battery Type: LiFePO₄ (LFP)
Nominal Battery Energy: 16.076 kWh
Usable Battery Energy: 15.272 kWh
Nominal Capacity: 314 Ah
Nominal Voltage: 51.2 V
Operating Voltage: 44.8 V – 57.6 V
Recommended Charge & Discharge C Rate: 0.45C (140 A)
Max. Charge C Rate: 0.64C (200 A)
Max. Discharge C Rate: 0.64C (200 A)
Peak Discharge Current (25°C): 300 A, 2 min
Recommended Charge & Discharge Power: 7.168 kW
Max. Charge Power: 10.24 kW
Max. Discharge Power: 10.24 kW
Depth of Discharge (DOD): 95%
Charge Temp. Range: 0°C – 55°C / -20°C – 55°C (optional)
Discharge Temp. Range: -20°C – 55°C
Net Weight: 116 kg
Dimension (W/D/H): 435 / 233 / 857 mm
Protection Level: IP20
Communication: CAN / RS485
Cycle Life: ≥ 8000 cycles
User Interface: WiFi + APP
Safety Protection: Built-in aerosol fire extinguisher
Installation: Floor-mounted / Wall-mounted
Regulating Wheel (4 pcs): 1 kg, 80 / 80 / 80 (optional)
Top Cover: 2 kg, 422 / 232 / 60 (optional)
Expansion: Up to 50 units in parallel
Warranty Period: 10 years
Certification & Safety Standard: UN38.3 / IEC62619
Compatible Inverters:
SMA / Victron Energy / Ingeteam / Solis / GoodWe / Growatt / Solplanet / Luxpower / Deye / Apsystem etc.
10 Years Warranty
