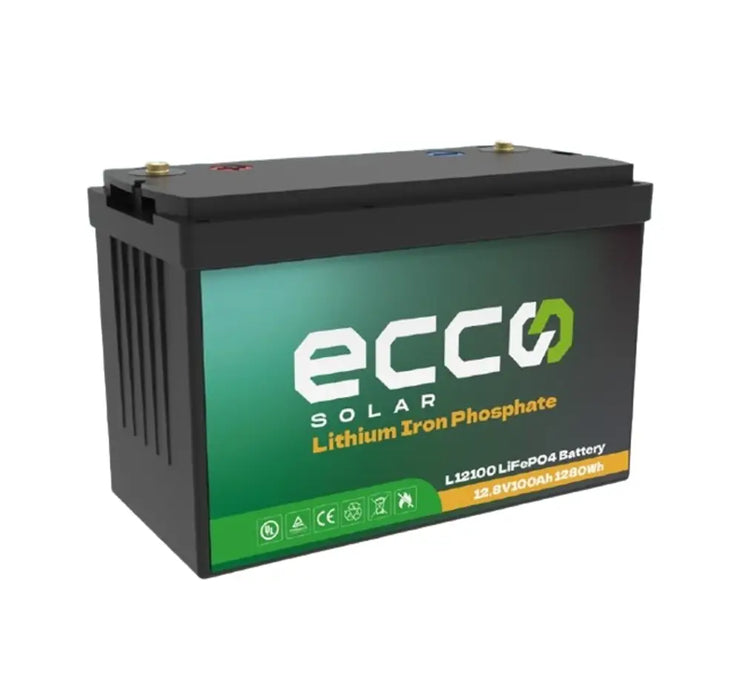

12V 100ah Lithium Battery 1.28Kwh Ecco

12.8v 100ah Lithium Battery 1.28Kwh Ecco Solar

Longer Cycle Life: Offers up to 20 times longer cycle life
and five times longer float/calendar life than lead acid
battery, helping to minimize replacement cost and
reduce total cost of ownership.
Lighter Weight: About 40% of the weight of a comparable lead acid battery. A 'drop in' replacement for lead
acid batteries.
Higher Power: Delivers twice power of lead acid battery,
even high discharge rate, while maintaining high energy
capacity.
Superior Safety: Lithium iron phosphate chemistry
eliminates the risk of explosion or combustion due to
high impact, overcharging or short circuit situation.
It can parallel up to 4 units or series up to 4 units

SPECIFICATIONS

• High-Capacity Energy Storage: 1.28kWh nominal energy output for reliable power supply.
• Longer Cycle Life:
  • Up to 5,000 cycles at 50% Depth of Discharge (DoD).
  • Lasts up to 20 times longer than traditional lead-acid batteries.
• Lightweight & Compact:
  • Weighs only 13kg, approximately 40% lighter than lead-acid alternatives.
  • Compact 330×172×220mm size for easy installation.
• High Discharge & Charge Efficiency:
  • 1.5C discharge rate for high power demand.
  • 97% charge efficiency for optimal energy usage.
• Safe & Reliable:
  • Built-in protection against overcharging, over-discharging, and short circuits.
  • LiFePO4 chemistry eliminates the risk of explosion or combustion.
• Scalable Power Expansion:
  • Supports up to 4 batteries in series or parallel for increased energy capacity.
• Rugged Durability:
  • IP65-rated enclosure protects against dust and water.

Technical Specifications:

• Battery Type: Lithium Iron Phosphate (LiFePO4)
• Nominal Voltage: 12.8V
• Nominal Capacity: 100Ah
• Total Energy Storage: 1.28kWh
• Cycle Life: 5,000 cycles @ 50% DoD (35°C)
• Self-Discharge: Minimal over long periods
• Efficiency: 97% charge efficiency
• Standard Discharge Cut-Off Voltage: 10.8V
• Recommended Charging Voltage: 14.2V
• Recommended Charging Current: 50A
• Max Continuous Discharging Current: 100A
• Peak Discharging Current: 150A
• IP Rating: IP65
• Dimensions: 330mm x 172mm x 220mm
• Weight: Approx. 13kg

What’s in the Box?

• 1 x Ecco 1.28kWh 12.8V 100Ah LiFePO4 Battery

Storage & Maintenance Recommendations:

• Storage: Maintain 50% charge if left idle for extended periods. Recharge every three months to maintain battery health.
• Operating Environment: Store in a dry, well-ventilated location at -20°C to 55°C, with 5% to 85% relative humidity. Keep away from corrosive substances, fire, and heat sources.

Warranty & Installation Requirements:

• 3-Year Warranty included.

Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
