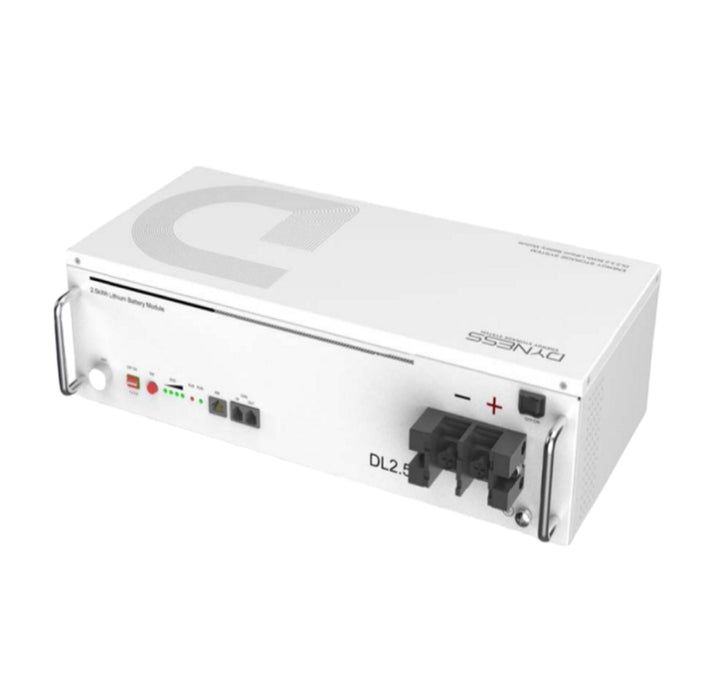

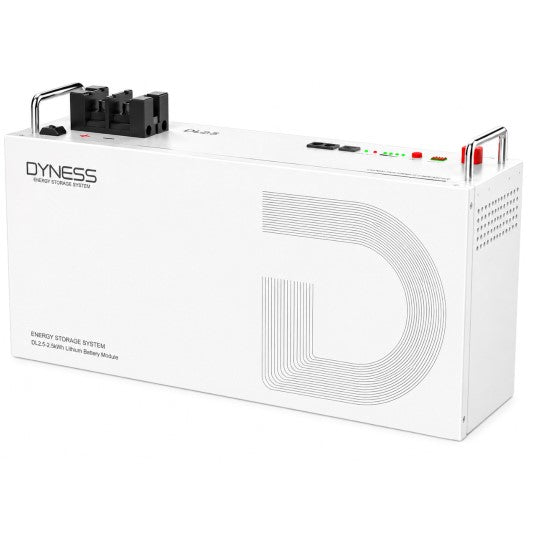

Dyness 24V 2.56Kw 100Ah DL2.5 Lithium Battery

Dyness 24V 2.56Kw 100Ah  DL2.5 Lithium Battery

Dyness DL2.5 is a good alternative for lead-acid batteries and a perfect match for on/off-grid applications in areas with limited or no grid access. It is scalable from 2.56kWh to 40.96kWh (up to 16 units in parallel), ensuring you sufficient capacity to meet different requirements.

Compared to most Lithium batteries, the Dyness DL 2.5 - 25.6V 100Ah Battery offers a higher energy density, longer life span, and faster charging. Its Lithium Iron Phosphate (LFP) technology ensures enhanced safety features, reducing the risk of overheating or fire. This makes it a better choice for homeowners and businesses looking for a durable, low-maintenance energy storage solution. Additionally, its compact design allows it to fit in tight spaces, making it more versatile than other bulky options.

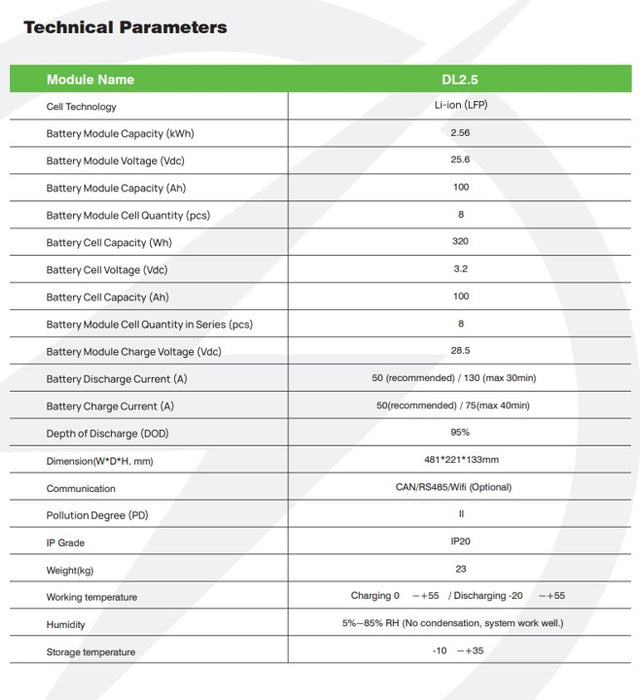

Specifications:

Energy: 2.56kWh
Installation Type: Wall Mounted
Battery Type-Chemistry: Li-ion (LFP)
Nominal Voltage: 25.6V
Nominal Capacity: 100Ah
Energy Density: 2560 Wh
Battery Life Cycles: 4000
Battery Discharge Current (A): 50 (recommended) / 130 (max 30min)
Battery Charge Current (A): 50(recommended) / 75(max 40min
Dimensions (LxWxH): 481 x 221 x 133 mm
Weight (Approx.): 23 Kgs
Depth of Discharge (DOD): 95%
Communication: CAN/RS485/Wifi (Optional)
IP Grade: IP20
Working temperature:Charging 0℃~+55℃ / Discharging -20℃~+55℃
Humidity: 5%~85% RH (No condensation, system works well.)
Storage temperature: -10℃~+35℃
Max. Parallel Connection: 16

Electrical Parameters:

Operating Voltage Range: 28-28.5V
Recommend Charge Voltage: 24-25V
Max Charge Voltage: 28.5V
Recommend Charge Current: 20A
Max Continuous Charge Current: 75A
Max Continuous Discharge Current: 100A
Peak Discharge Current: 130A

Dimensions (LxWxH): 481 x 221 x 133 mm
Weight (Approx.): 23 Kgs

What's In the Box:

1 x Dyness DL2.5 24V 100Ah 2.56Kw Lithium Battery
1 x Red (Positive) Battery Cable
1 x Black (Negative) Battery Cable
1 x Communication cable
1 x Wall-mounted Shelf
1 x Manual

Warranty:
10 Years Warranty
