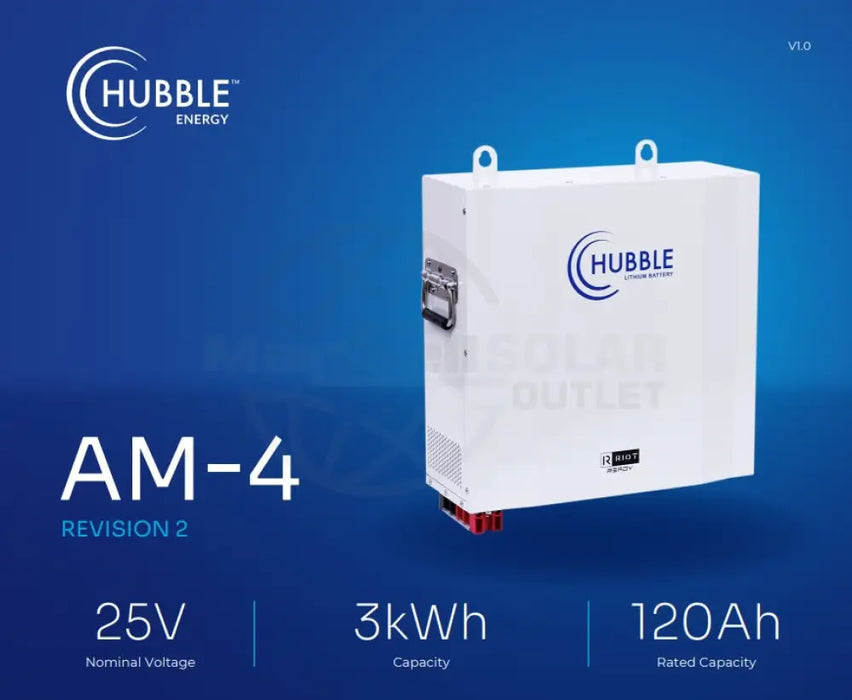

Hubble Lithium Battery Wallmount 25.5V 2.56KWh AM-4

Hubble Lithium Battery Wallmount 25.56V 2.6KWh AM-4

The AM-4 is a 25.5V Lithium battery are produced to cater for the 24V inverter market. The AM-4 is the perfect fit for 24V inverters where you still have the need to install lithium.

Hubble Lithium Battery Specifications:

SPECIFICATIONS

Nominal Energy 2.56 kWh
*Rated Capacity 100 Ah
Nominal Voltage 25.6 V
Equalized Charge Voltage 27.6 V
Max. Continuous Charging Current 100 A
Max. Continuous Discharging Current 100 A
Depth of Discharge 100%
C Rating 1.0 C
Cells LiFePO4 (LFP)
Cycle Life @ 1C +/- 6000 Cycles @ 50% DOD, Above 3000 cycles @ 100% DOD
Design Life +/- 15 Years
Parallel Parallel connection up to 15 packs with full communications
Ports 1x CAN-bus, 2x Battery Link Ports
Protection Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting
Operating Temperature
Charging: 0 to +55°C
Discharging: -10 to +55°C
Storage: -10 to +55°C
Weight Approx. 25 Kg
Dimensions (WxDxH) mm 420mm x 153mm x 490mm
Outer Package Material White bake lacquer steel case
Certification CE, UN38.3, GBT31484-2015, GBT31485-2015, GBT31486-2015

Battery Warranty:

The warranty period commences on the date of purchase from Hubble Lithium (Pty) Ltd (“Hubble Lithium”) as reflected in the relevant Hubble Lithium tax invoice. Hubble Lithium warrants that the Battery cells will achieve at least 10 years’ service life or deliver at least 3000 charge-discharge cycles as counted by the BMS, which ever event occurs first.
