100A MPPT Solar Charge Controller 12/24/48V TD41020F Ecco Solar
Available Online & In-Store, Pay on Collection
Delivery Estimate 1-2 Business Days
100A MPPT Solar Charge Controller 12/24/48V TD41020F Ecco Solar

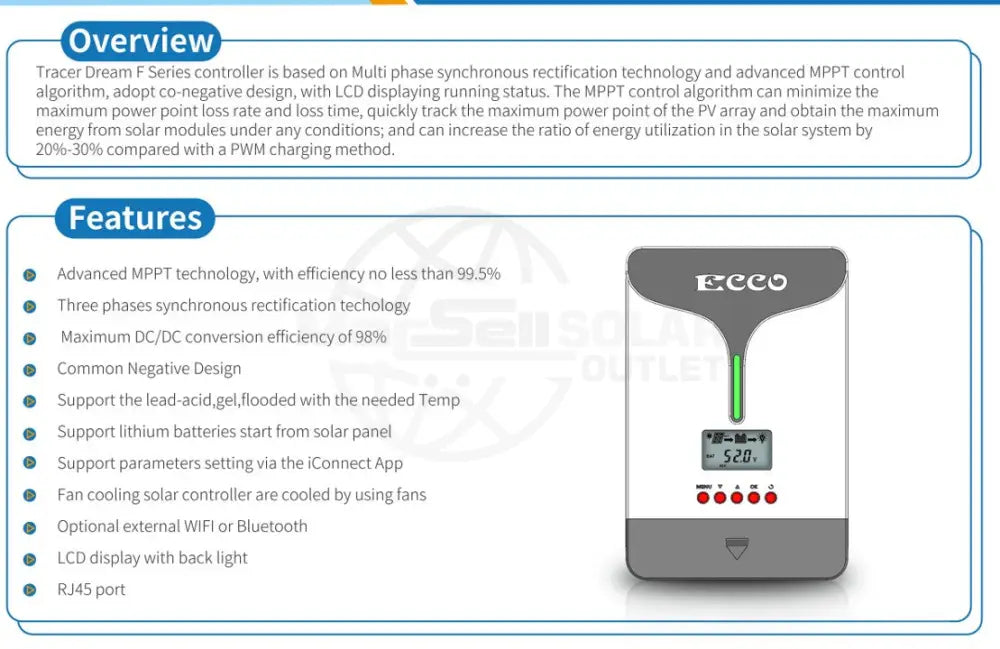

Tracer Dream F Series controller is based on Multi phase synchronous rectification technology and advanced MPPT control
algorithm, adopt co-negative design, with LCD displaying running status. The MPPT control algorithm can minimize the
maximum power point loss rate and loss time, quickly track the maximum power point of the PV array and obtain the maximum
energy from solar modules under any conditions; and can increase the ratio of energy utilization in the solar system by
20%-30% compared with a PWM charging method.
-Advanced MPPT technology, with efficiency no less than 99.5%
-Three phases synchronous rectification techology
-Maximum DC/DC conversion efficiency of 98%
-Common Negative Design
-Support the lead-acid,gel, flooded with the needed Temp
-Support lithium batteries start from solar panel
-BAT 52.0 Support parameters setting via the iConnect App
-Fan cooling solar controller are cooled by using fans
-Optional external WIFI or Bluetooth
-LCD display with back light
-RJ45 port

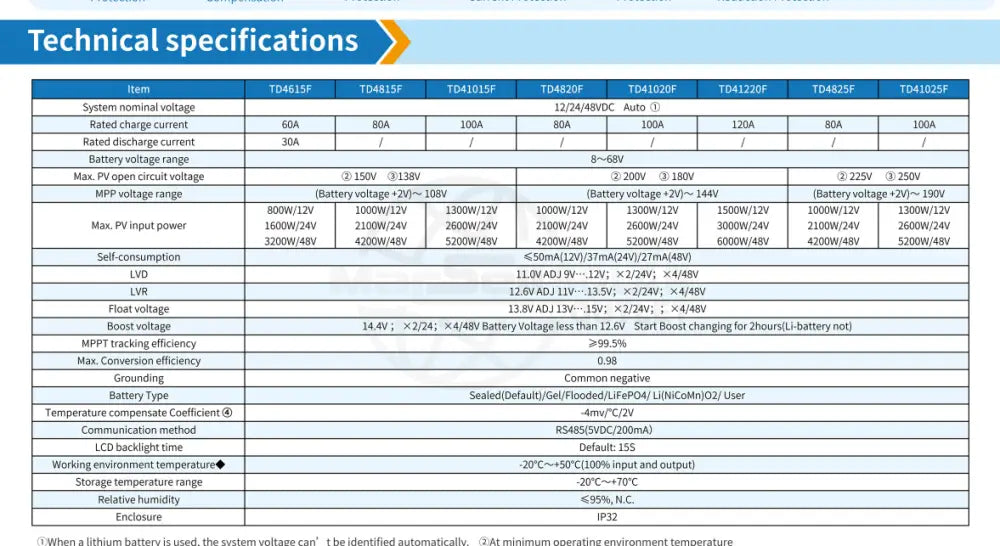

Specifications :
- Rated Voltage 12/24/48v
- Rated Current 100A
- MAX PV Input Voltage 200V
- MAX PV Input Power 1300W (12V) - 2600W (24V) - 5200W (48V)
Inside the Box
1 x 100A MPPT Solar Controller
1 x User manual Book
