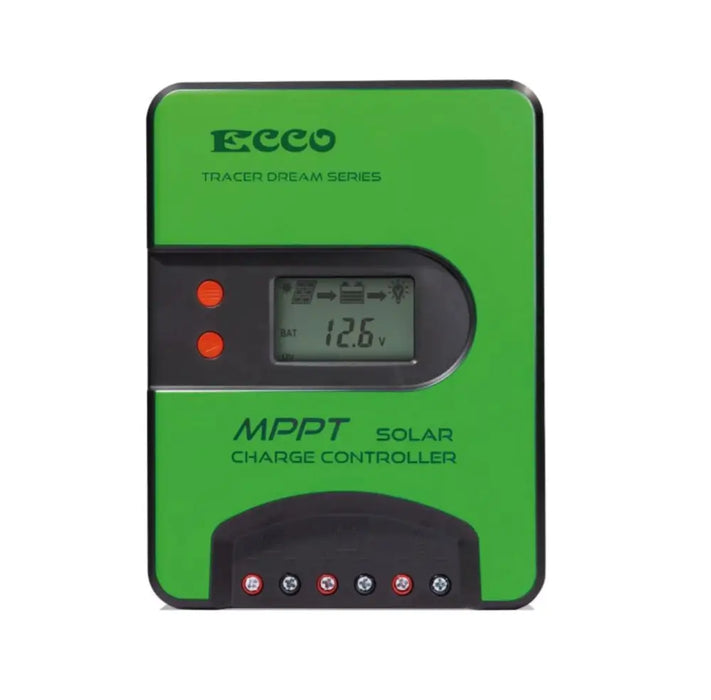

30A MPPT Solar Charge Controller 12/24V TD2310 Ecco Solar

30A MPPT Solar Charge Controller 12/24V TD2310 Ecco Solar

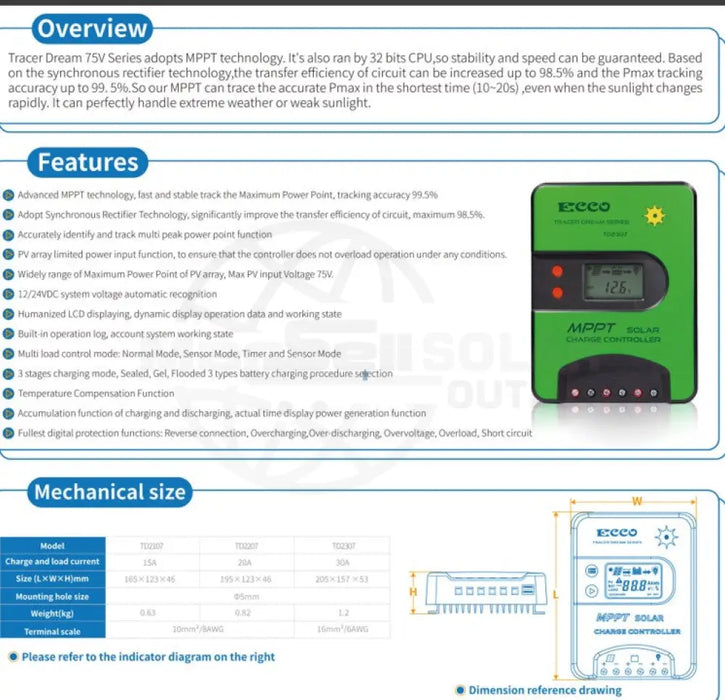

Tracer Dream 75V Series adopts MPPT technology. It's also ran by 32 bits CPU,so stability and speed can be guaranteed. Based
on the synchronous rectifier technology,the transfer efficiency of circuit can be increased up to 98.5% and the Pmax tracking
accuracy up to 99. 5%.So our MPPT can trace the accurate Pmax in the shortest time (10~20s), even when the sunlight changes
rapidly. It can perfectly handle extreme weather or weak sunlight.

Specifications :

• Rated Voltage 12/24v
• Rated Current 30A
• USB Output 5V 2A
• MAX PV Input Voltage 100V
• MAX PV Input Power 390W (12V) - 780W (24V)

Inside the Box

1 x 30A MPPT Solar Controller

1 x User manual Book
