6.2KVA ECCO Hybrid Inverter and Battery 48V ECCO 5.12 KWH Lithium Battery Plus 6 X 460w Canadian Solar Panels
Available Online & In-Store, Pay on Collection
Delivery Estimate 1-2 Business Days
6.2KVA ECCO Hybrid Inverter and Battery 48V ECCO 5.12 KWH Lithium Battery Plus 6 X 460w Canadian Solar Panels
6.2 Kva 6200w Hybrid Inverter 48v Mppt 120A Inverter Pure Sine Wave - Ecco
This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Features
- Dual output for smart load management
- Lithium battery activation function by PV or Utility - Compatible work with LiFePO4 battery via RS485 - PV Input 500 Vdc Max
- Built-in MPPT 120A
- Capable to work without battery
- Detachable dust cover for harsh environment
- Wifi remote monitoring optional
- Support multiple output priority: UTL, SOL, SBU, SUB - EQ function to optimize battery performance and extend lifecycle
What's in the box
1 x Inverter
1 x User Manual

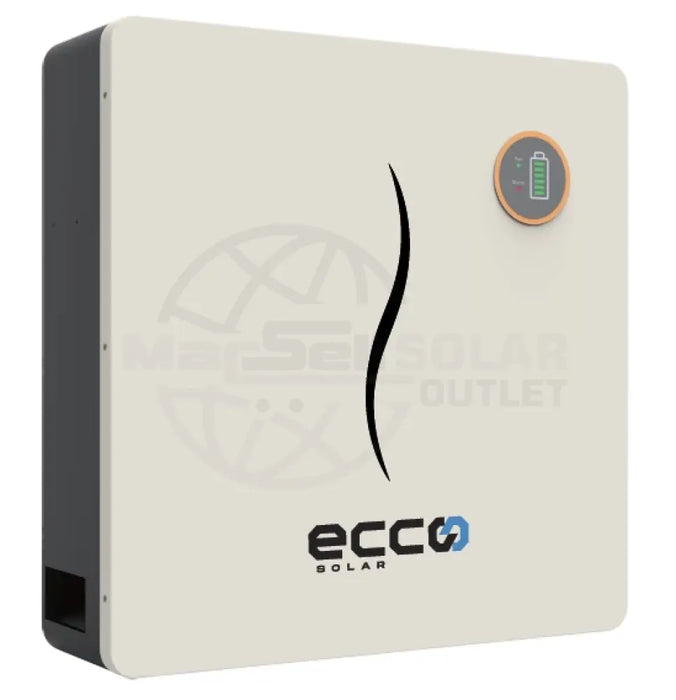

Ecco 51.2v 100ah 5.12 kWh Lithium Battery ELV51100 Wall-Mounted
ELV51100 has built-in BMS (Battery Management System), which can manage and monitor cells information including voltage, current and temperature. Besides that, BMS can balance cells charging to extend cycle life. BMS has protection functions including over-discharge, over-charge, over-current and high/low temperature; the system can automatically manage charge state, discharge state and balance state.
Multiple ELV51100 can be connected in parallel to expand capacity and power, 15 ELV51100 can be connected in parallel at most.
Specifications:
Nominal Voltage (V) 51.2
Nominal Capacity (Ah) 100
Total Power (kWh) 5.12
Charge Voltage (V) 56.16 V
Discharge Voltage (V) 44.8 V
Dimensions (mm) 500 X 494 X 145
Weight (kg) 45

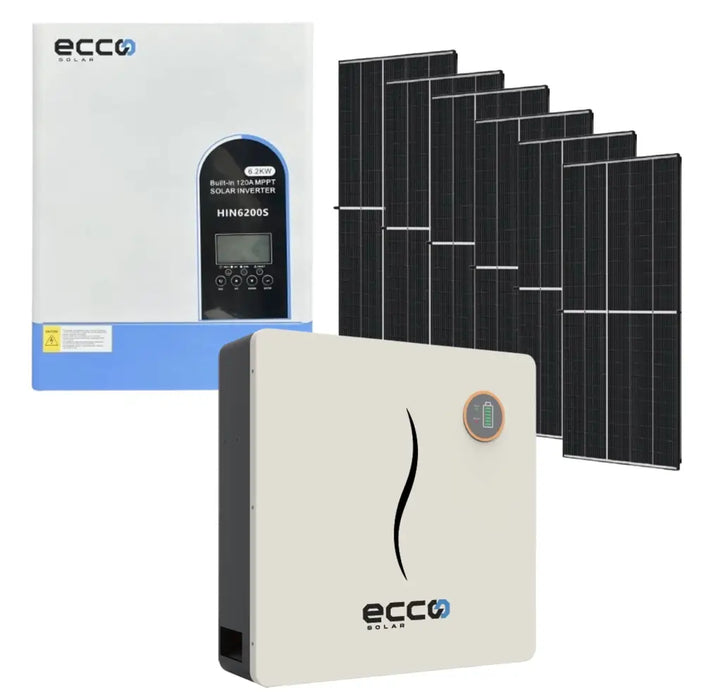

Combo Includes:
1x ECCO Lithium Ion Battery 51.2V 100AH 5.1KWH Wall Mounted ( 5 Years Warranty)
1x Hybrid Inverter Ecco 6.2KVA 6200W Watt MPPT(5 Years Warranty)
6x Canadian 460w Mono Solar Panel HiKu6 Mono
PLEASE NOTE COURIER FOR SOLAR PANELS ARE AT YOUR OWN RISK
Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
- PLEASE NOTE COURIER FOR SOLAR PANELS ARE AT YOUR OWN RISK
ADD A Solar Installation Kit:
Solar Installation Kit for 6 Solar Panels, Inverter and Battery
