Deye 12KW Single Phase Hybrid Inverter Deye
The Deye 12kW single phase hybrid inverter is a powerful device designed for large residential and small commercial solar systems. It combines solar power generation, battery storage, and grid connectivity, supporting both on-grid and off-grid applications. This inverter allows for efficient energy management, storing excess solar energy in batteries and ensuring a reliable power supply even during outages. With features like remote monitoring, high efficiency, and smart energy management, the Deye 12kW hybrid inverter optimizes solar energy use and enhances energy independence.
Description
General Data
• Colorful touch LCD with IP65 Protection Degree
• AC Couple to retrofit existing Solar System
• Maximum 16 Units Parallel for On-Grid and Off-Grid operation
• Supports Multiple Batteries in Parallel
• Maximum Charging / Discharging Current of 290A
• 6 Time Periods for Battery Charging / Discharging
• Support for storing Energy from Diesel Generator
• Self-Consumption and Feed-In to Grid
• Auto Restart while AC is recovering
• Programmable Supply-Priority for Battery or Grid
• Programmable multiple operation modes: On-Grid, Off-Grid and UPS
• Configurable Battery Charging: Current / Voltage based on applications by LCD Setting
• Configurable AC / Solar / Generator Charger priority by LCD Setting
• Compatible with Mains Voltage or Generator Power
• Overload / Over Temperature / Short Circuit protection
• Smart Battery Charger design for optimized Battery performance
• Limit Function to prevent excess power overflow to the Grid
• Supports WIFI monitoring and 2 Strings of each MPPT
• Smart settable three stages MPPT Charging for optimized Battery performance
• Time-Of-Use Function
• Smart-Load Function

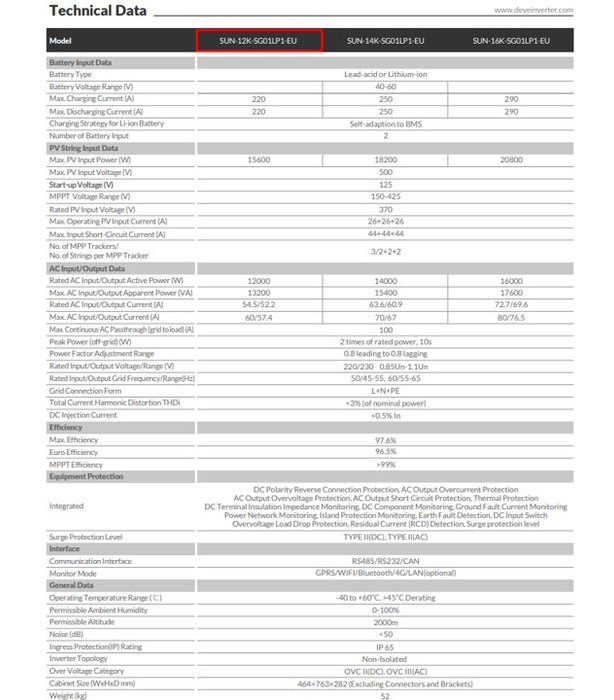

GRID/AC OUTPUT:
Grid Type: Single Phase
Protection Degree: IP65
Maximum Charge/Discharge Current: 240A
Charging Strategy for Lithium Ion Battery: Self-adaption to BMS
AC Output & UPS Power: 12000W
Maximum AC Output Power: 13200W
AC Output Rated Current: 54.5/52.2
Maximum AC Current: 60/57.4
Maximum Efficiency: 97.60%
PV INPUT:
Maximum DC Input Power: 19200W
Max. PV Input Voltage: 500V
Rated PV Input Voltage: 370V
3/2 x MPPT
Start-up Voltage: 125V
PV Input Current: 26A + 26A + 26A
BATTERY:
Battery Type: Lead-acid or Lithium-ion (Not Included – Sold Separately)
Battery Voltage Range: 40-60V
Communication with BMS: CAN/RS485
