Deye 5KW MPPT and Dyness 5.12 KWh Combo Backup Power Kit+Wifi
Available Online & In-Store, Pay on Collection
Delivery Estimate 1-2 Business Days

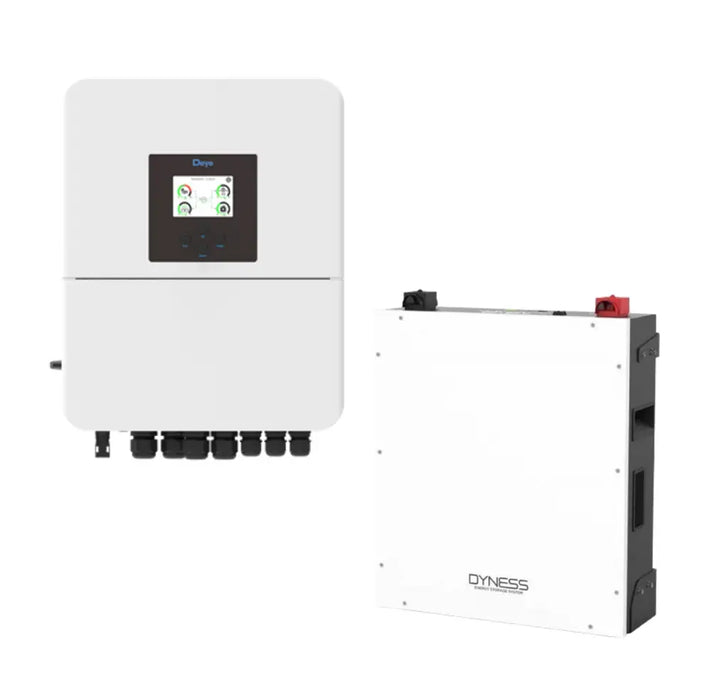

Deye 5KW MPPT and Dyness 5.12 KWh Combo Backup Power Kit+Wifi

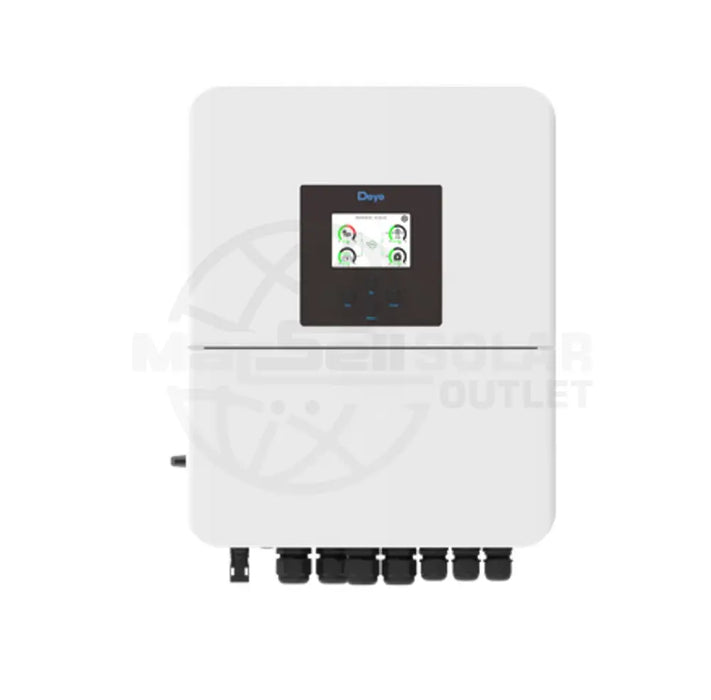

Deye 5kw hybrid inverter (SUN-5K-SG04LP1-EU-SM2)
Colorful touch LCD, IP65 protection degree AC couple to retrofit existing solar system Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel Max. charging/discharging current of 140A 6 time periods for battery charging/discharging Support storing energy from diesel generator
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range(V): 40-60
Max.Charging Current(A): 120
Max.Discharging Current(A): 120
Charging Strategy for Li-ion Battery: Self-adaption to BMS
PV String Input Data
Max. PV Access Power (W):10000
Max PV Input Power（W）: 8000
Max PV Input Voltage（V): 500
Start-up Voltage（V）: 125
MPPT Voltage Range（V）: 150-425
Rated PV Input Voltage(V): 370
Max Input Short-Circuit Current（A）: 27+27
Max Operating PV Input Current（A）: 18+18
No.of MPP Trackers/No.of String Per MPP Tracker: 2/1+1
| Height (mm) | 470 |
| Width (mm) | 376 |
| Depth (mm) | 241.5 |
| Weight (kg) | 19 |

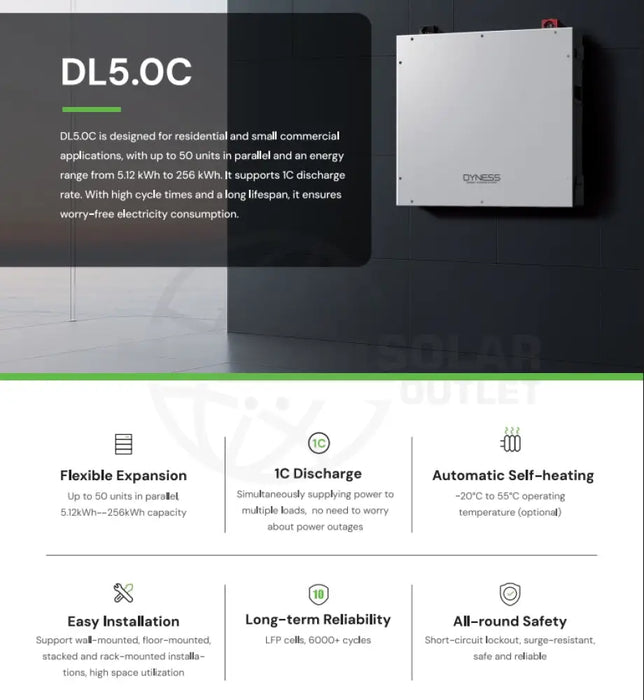

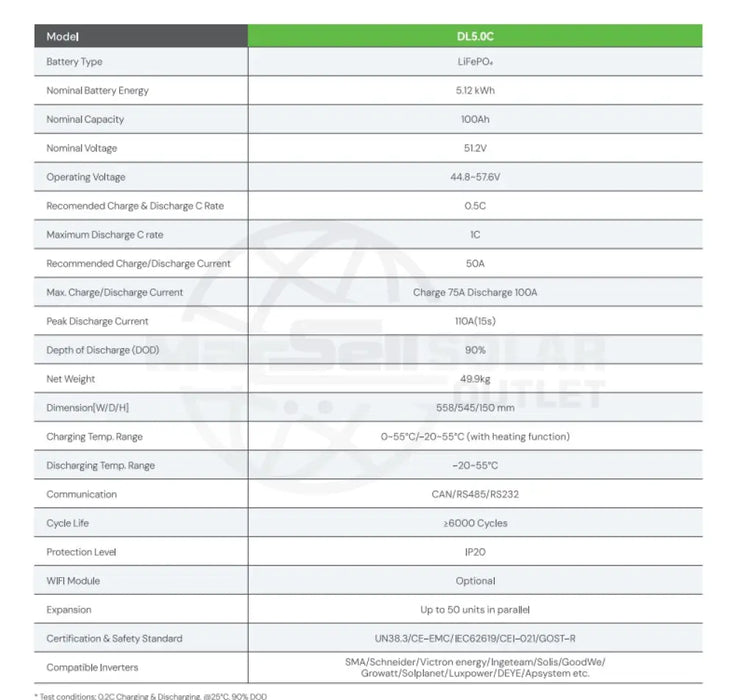

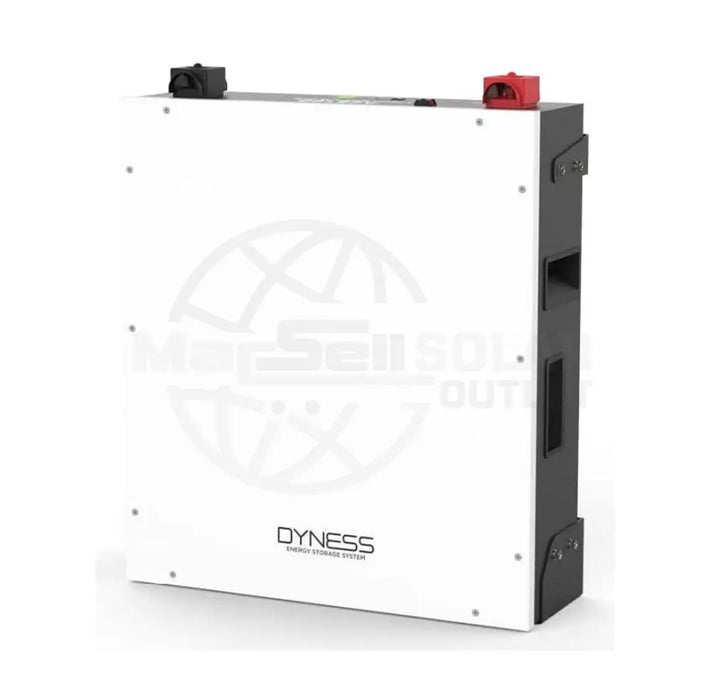

DYNESS Lithium Battery DL5.0C 5.12 kWh 51.2v
DYNESS DL5.0C adopts economic design, and is tailor-made for residential & small commercial application. This LFP battery module supports remote update and APP monitoring,and provides multiple installation methods. It is scalable from 5.12 -256 kWh (max. 50 modules in parallel), providing various energy storage options to meet different requirements.
Key Specifications:
- Capacity: 5.12kWh
- Battery Type: Lithium-ion
- Continuous Output Power
- Battery Management System (BMS): Yes
- Protection Features: Overcharging, Over-discharging, Short Circuit Protection
- Cycle Life: Ensuring a long-lasting energy solution
Combo includes:
-
1x Deye 5kwh Hybrid Inverter Including Wifi Dongle
(5 Years Warranty) -
DYNESS Lithium Battery DL5.0C 5.12 kWh 51.2v (7 Years Warranty)
- Battery cables and brackets included
