Luxpower 5KVA Hybrid Inverter and Battery Combo Shoto 5.12

Luxpower 5KVA Hybrid Inverter and Battery Combo Shoto 5.12 Kwh Lithium Battery

Save R 1,900.00 Save R 1,900.00
R 22,500.00
R 22,500.00 - R 22,500.00
R 22,500.00
R 20,600.00
R 20,600.00 - R 20,600.00
R 20,600.00
    Visa Mastercard mobicred Zapper Maestro PayFast Instant EFT
Availability:
in stock, ready to be shipped

Available Online & In-Store, Pay on Collection

Delivery Estimate 1-2 Business Days

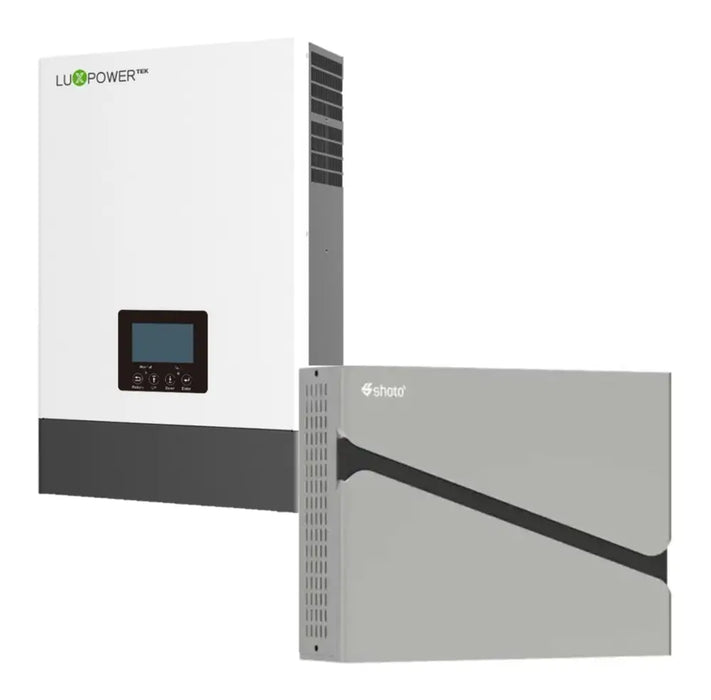

Luxpower 5KVA Hybrid Inverter and Battery Combo Shoto 5.12 Kwh Lithium Battery


LuxPower 5kW Inverter – SNA5000 Hybrid Inverter

General:
Model: SNA 5000 WPV
Warranty: 2years.
Battery voltage: 48VDC.

Output:
Rated power: 5000W/5000VA.
Parallel capacity: YES.
Normal output voltage: 230/240, Split phase 220/110 Vac.
Normal output frequency: 50/60Hz.
Surge power: 10000VA.
Switch time: 10ms.
Waveform: Pure sine wave.


Battery Type: Lithium/Lead-Acid.
Normal Voltage: 51.2V/48V.
Max. Charge Voltage: 59V.

Solar:
Max. Recommended PV Power: 3200W/3200W.
MPPT Tracker: 2.
Max. PV Open Circuit Voltage: 480Vdc.
MPPT Voltage Range: 100-385Vdc.
Max. Solar Charge Current: 100A.
Max. Solar Input Current: 13A/13A.
Max. MPPT Eiciency: >98%.
Parallel MPPT Charger: YES.

What's in the box

1 x Inverter
1 x User Manual
1 x Wifi Dongle

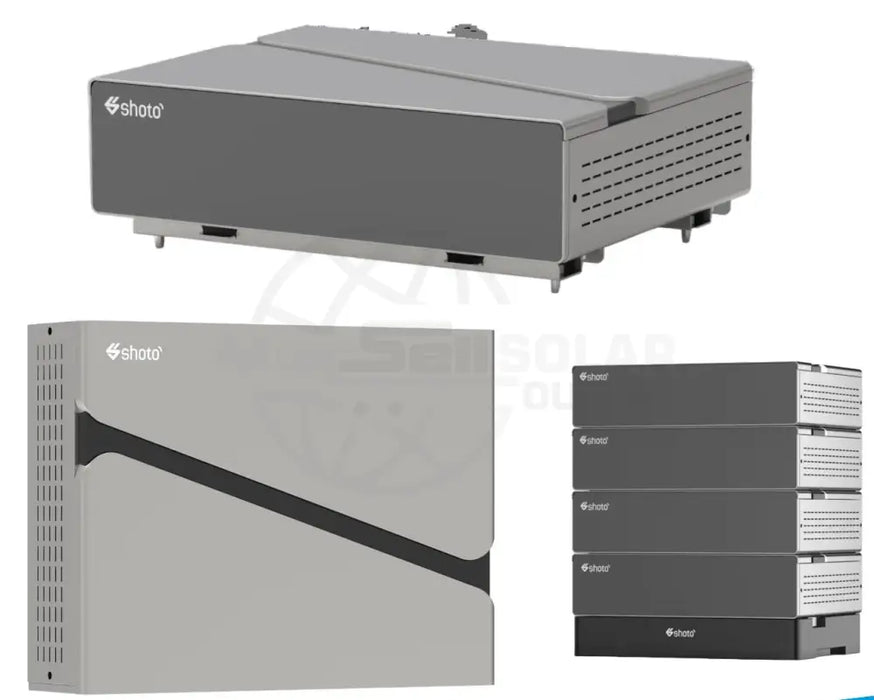

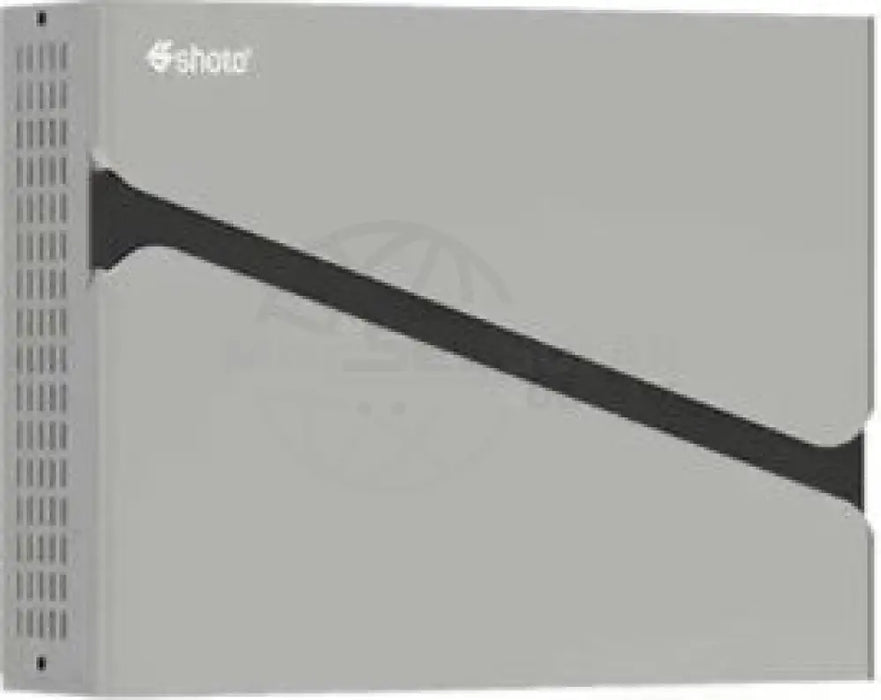

Shoto Lithium Iron Phosphate LiFePO4 51.2V 5.12KWH HP10-box5 Pro



Technical Specifications
Battery Chemistry: LiFePO₄ (Lithium Iron Phosphate)
Nominal Voltage: 48V
Capacity: 100Ah
Energy Storage: 5.12kWh
Cycle Life: >6000 cycles at 80% DoD
Max Charge Voltage: 54V
Discharge Cutoff Voltage: 42V
Maximum Charge/Discharge Current: 100A
Round-Trip Efficiency: >95%
Communication Protocols: RS485, CAN
Operating Temperature: -20°C to 55°C
Scalability: Parallel & Series connections supported

 Combo includes:

  • 1x Shoto Lithium Iron Phosphate LiFePO4 51.2V 5.12KWH HP10-box5 Pro(10-year warranty)
  • 1x Luxpower 5kw + Wifi Dongle Inverter (2 year warranty)
  • Battery Cables And Brackets Included
    Warranties:
    All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC, and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
