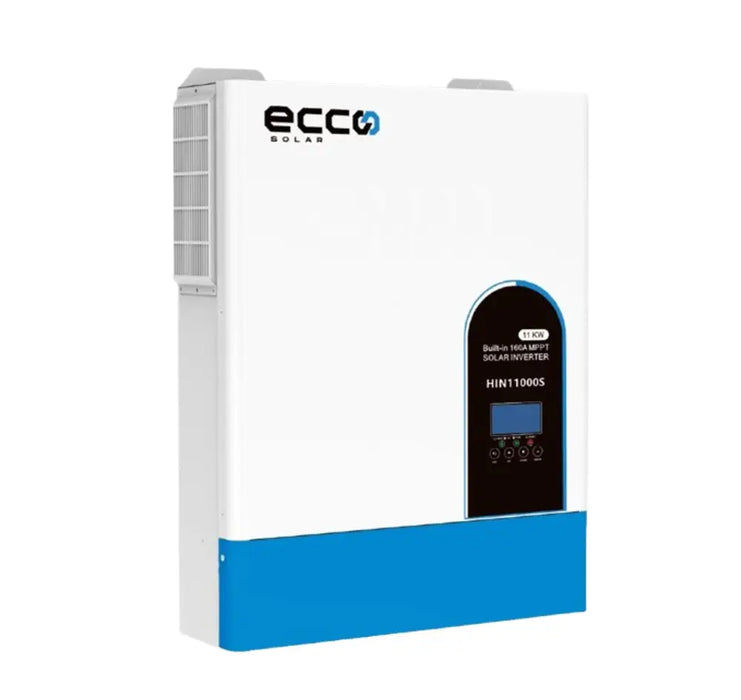

11 Kva 11000w Hybrid Inverter 48v MPPT 160A Inverter Pure Sine Wave - Ecco
Features:
Built-in 2 MPPT
Lithium battery activation function by PV or Utility • Compatible work with LiFePO4 battery via RS485
Pure Sine Wave
Power factor 1.0
PV Input 500Vdc Max
Built-in MPPT 160A
Capable to work without battery
Detachable dust cover for harsh environment
Wifi remote monitoring optional
Support multiple output priority: SUB,SBU, SUF
EQ function to optimize battery performance and extend lifecycle

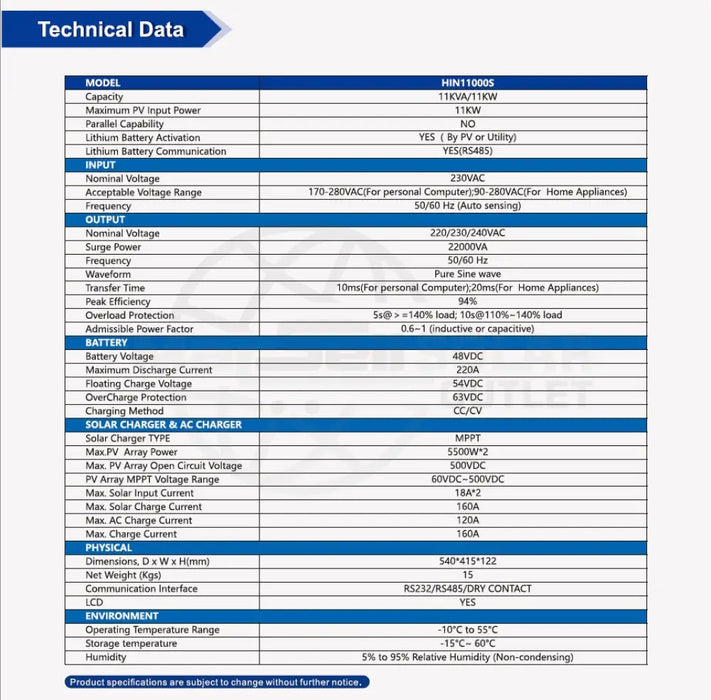

Specifications:
MODEL : HIN11000S
Capacity : 11KVA/11KW
Maximum PV Input Power : 11KW
Parallel Capability : NO
Lithium Battery Activation : YES (BY PV OR UTILITY)
Lithium Battery Communication : YES(RS485)
INPUT
Nominal Voltage : 230VAC
Acceptable Voltage Range : 170-280VAC(For Personal Computer) : 90-280VAC (For Home Appliances)
Frequency : 50/60 Hz (Auto Sensing)
OUTPUT
Nominal Voltage : 220/230/240VAC
Surge Power : 2200VA
Frequency : 50/60 Hz
Waveform : Pure Sine Wave
Transfer Time : 10ms(For Computers) 20ms(For Home Appliances)
Peak Efficiency : 94%
Overload Protection : 5s @ 140% Load
BATTERY
Battery Voltage : 48V
Maximum Discharge Current : 220A
Floating Charge Voltage : 54VDC
OverCharge Protection : 63VDC
Charging Method : CC/CV
SOLAR CHARGER & AC CHARGER
Solar Charger TYPE : MPPT
Max.PV Array Power : 5500W*2
Max. PV Array Open Circuit Voltage : 500VDC
PV Array MPPT Voltage Range : 60VDC-500VDC
Max. Solar Input Current : 18A*2
Max. Solar Charge Current : 160A
Max. AC Charge Current : 120A
Max. Charge Current : 160A
PHYSICAL
Dimensions, D x W x H(mm) 540 X 415X 122
Net Weight (Kgs) 15KG
Communication Interface RS232/RS485/DRY CONTACT
LCD
ENVIRONMENT
Operating Temperature Range -10C TO 55C
Storage temperature Humidity -15 - 60C
HUMIDITY 5% TO 95%
What's in the box1 x ECCO 11KW Inverter
1 x Communication Cable
1 x User Guide
2x Mc4 Connectors
1x 200A Fuse
5-Year Repair Warranty
Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
