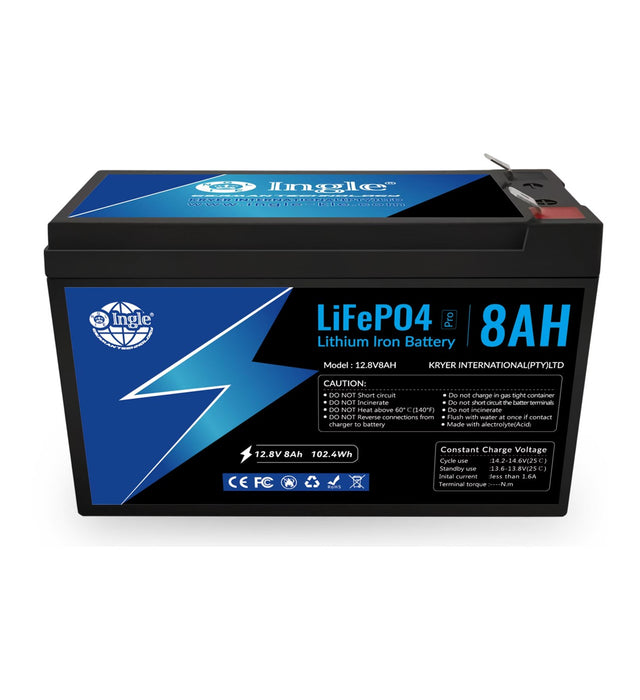

12V 8AH Ingle Lithium Li-ion Battery

12V 8AH Ingle Lithium Li-ion Battery

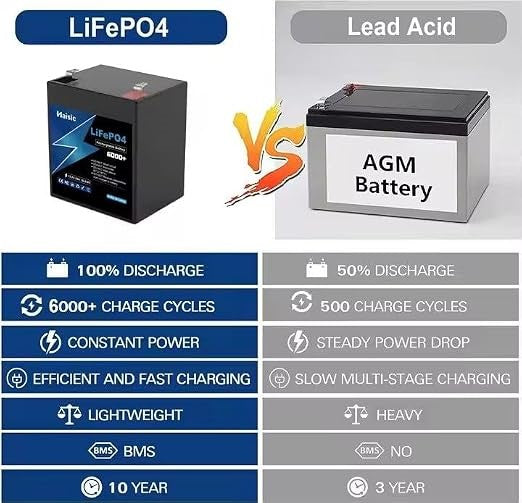

Longer Cycle Life: Provides up to 20 times longer cycle life and five times longer
float/calendar life than lead acid, helping to minimize replacement costs and
reduce total cost of ownership.
Lighter Weight: Approximately 40% of the weight of same capacity lead acid
battery. Easy replacement for lead acid batteries.
Higher Power: Delivers twice power of lead acid battery, even high discharge rate,
while maintaining high energy capacity; Supports 4 parallel or series groups.
Superior Safety: Eliminates the risk of explosion or combustion due to high
impact, overcharging or short circuit situation with safe lithium iron phosphate
chemistry.

SPECIFICATIONS

• 12V 8Ah LiFePo4 Single Battery Module
• Nominal Voltage 12.8V
• Charge cut-off voltage 14.6v
• Discharge cut-off voltage 10v
• Max Discharge Current 8A
• Discharge Pulse Current 24A
• Charging working temperature 0-45C
• Dimensions (LxWxH): 151x 65 x 94
• Weight: Approx. 0.77kg
• Can Be Connected in Series & Parallel
• 4 series 4 parallel

24 Months Warranty
