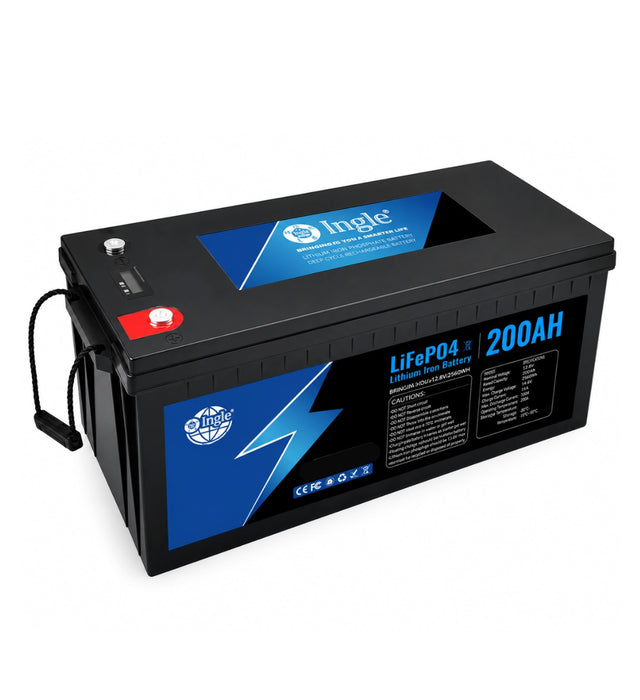

25.6v 200ah 5.12Kwh Ingle Lithium Battery

25.6v 200ah 5.12Kwh Ingle Lithium Battery

R 12,500.00 - R 12,500.00
R 12,500.00
R 12,500.00 - R 12,500.00
R 12,500.00
    Visa Mastercard mobicred Zapper Maestro PayFast Instant EFT Google Pay
Availability:
in stock, ready to be shipped

Available Online & In-Store, Pay on Collection

Delivery Estimate 1-2 Business Days

25.6v 200ah 5.12Kwh Ingle Lithium Battery



The 25.6V 200Ah Lithium Iron Phosphate (LiFePO₄) battery module delivers reliable power storage in a durable wall-mounted format. Designed for advanced energy systems, this 5.12kWh battery is ideal for residential, solar backup, and hybrid storage applications. Supporting both series and parallel configurations (up to 4S4P), it offers excellent scalability and installation flexibility.

Built to outperform traditional battery technologies, this unit provides up to 4000 cycles at 50% Depth of Discharge, extending system longevity while reducing replacement costs. Housed in a robust casing and weighing approximately 27.8kg, it delivers powerful, maintenance-free performance with minimal space requirements.

Key Features:

  • Stable Voltage Platform: 25.6V nominal with 29.2V charge cut-off

  • Extended Cycle Life: Up to 4000 cycles at 50% Depth of Discharge

  • High Energy Output: 5.12kWh storage capacity per module

  • Wall Mountable Design: Efficient use of vertical space for clean installs

  • Expandable System: Supports 4 series and 4 parallel connections

  • Durable Construction: Engineered for long-term stability and safety

  • Maintenance-Free: No acid, fume emissions, or fluid level checks required

  • 24-Month Warranty: Backed by manufacturer protection for peace of mind

Technical Specifications:

  • Battery Type: Lithium Iron Phosphate (LiFePO₄)

  • Nominal Voltage: 25.6V

  • Rated Capacity: 200Ah

  • Energy Output: 5.12kWh

  • Charge Cut-Off Voltage: 29.2V

  • Cycle Life: 4000+ (at 50% DOD)

  • Installation Type: Wall-mountable

  • Scalability: Up to 4S4P configuration

  • Dimensions (mm): 522 x 240 x 222

  • Weight: ~27.8kg

What’s in the Box:

  • 1 x 25.6V 200Ah Wall-Mount LiFePO₄ Battery Module

24 Months Warranty

Not recommended for outdoor or water-based applications. Contains internal circuit boards susceptible to water damage, which may affect performance and safety.

Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
