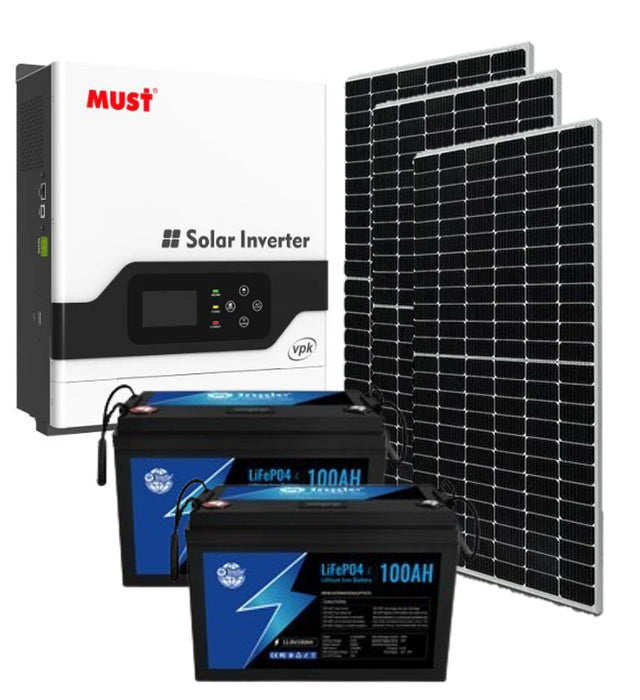

3000W Must 3KW MPPT 100A 2.56 KwH Lithium 3X 460W Mono Solar Panels Combo Kit
Available Online & In-Store, Pay on Collection
Delivery Estimate 1-2 Business Days
3000W Must 3KW MPPT 100A 2.56 KwH Lithium 3X 460W Mono Solar Panels Combo Kit
Hybrid Inverter Specifications:
Must 3kw 3000W 100A 24V MPPT Solar Hybrid Inverter PV18-3024-ECO
PV1800 ECO is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support in portable size. PV1800 ECO Series can run without battery.
The Maximum PV input voltage can reach 400V/450V/500V, which can help customers make full use of solar energy.
■ Pure sine wave output
■ Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).
■ Built-in MPPT solar charge controller
■ Wide PV input voltage range
■ Can provide the power to the load without battery
■ Combining solar system, AC utility, and battery power source to supply continuous power
■ Overload, short circuit and Deep discharge protection
■ Cold start function
■ Support RS485,CAN monitoring function
■ Dual outputs for smart load management
■ Can communicate with lithium batteries (CAN port)
Solar Charger :
MPPT 100A
MPPT Voltage Range : 30-320 VDC.
Max Solar Voltage : 400 VOC
Max MPPT Power : 4000w
2X 12.8v 100ah 1.28Kwh Lithium Battery Ingle
- 12V 100Ah LiFePo4 Single Battery Module
- Rated Capacity 1.28kwh
- Nominal Voltage 12.8V
- Charge cut-off voltage 14.6v
- Discharge cut-off voltage 10v
- Max Discharge current 100A
- Design Life: -/+ 3-5 Years
- Charging working temperature 0-45C
- Dimensions (LxWxH): 329 x 173 x 216 mm
- Weight: Approx. 10.5kg
- Can Be Connected in Series & Parallel
- 4 series 4 parallel
- 3000 cycles @ 80% Depth Of Discharge (DOD)
Combo includes:
-
2x 12.8v 100ah 1.28Kwh Ingle Lithium Battery (2 Years Warranty)
- 1x Must 3kw 3000W 100A 24V MPPT Solar Hybrid Inverter PV18-3024-ECO (2 Years Warranty)
-
3x Megatron 460w Mono Solar Panel (25 Year Product Warranty)
- PLEASE NOTE COURIER FOR SOLAR PANELS ARE AT YOUR OWN RISK
-
Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
