3600W Growtech Hybrid Inverter & 2.56 KwH Lithium Battery Plus 3X 460W Mono Solar Panels Combo Kit

3600W Growtech Hybrid Inverter & 2.56 KwH Lithium Battery Plus 3X 460W Mono Solar Panels Combo Kit

R 13,950.00 - R 13,950.00
R 13,950.00
R 13,950.00 - R 13,950.00
R 13,950.00
    Visa Mastercard mobicred Zapper Maestro PayFast Instant EFT Google Pay
Availability:
in stock, ready to be shipped

Available Online & In-Store, Pay on Collection

Delivery Estimate 1-2 Business Days

3600W Growtech Hybrid Inverter & 2.56 KwH Lithium Battery Plus 3X 460W Mono Solar Panels Combo Kit

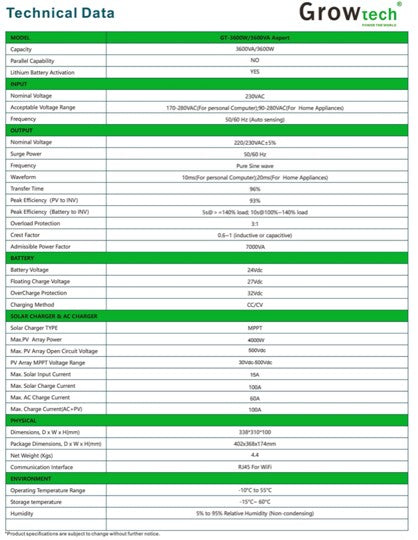

Hybrid Inverter Specifications:

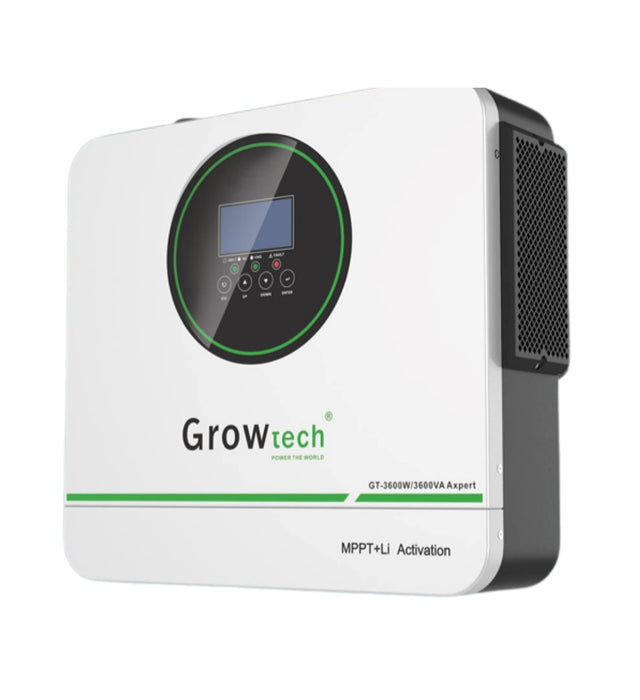

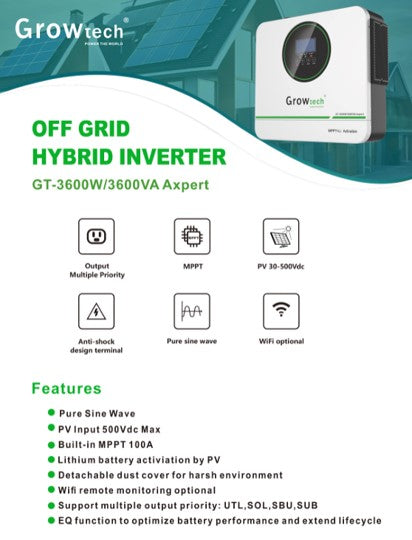

Growtech 3600W 24V MPPT Solar Hybrid Inverter


Output Specifications

  • Nominal Voltage: 220/230VAC ±5%
  • Surge Power: 7000VA
  • Frequency: 50/60 Hz
  • Waveform: Pure Sine Wave
  • Transfer Time:
    • 10ms (For Personal Computers)
    • 20ms (For Home Appliances)
  • Efficiency:
    • PV to Inverter: 96%
    • Battery to Inverter: 93%
  • Overload Protection: 3:1
    • 5s @ ≥140% Load
    • 10s @ 100%-140% Load
  • Crest Factor: 0.6 ~ 1 (Inductive or Capacitive)
  • Admissible Power Factor: 7000VA

Battery Specifications

  • Battery Voltage: 24VDC
  • Floating Charge Voltage: 27VDC
  • Overcharge Protection: 32VDC
  • Charging Method: CC/CV (Constant Current / Constant Voltage)

2X 12.8v 100ah 1.28Kwh Lithium Battery Ingle

  • 12V 100Ah LiFePo4 Single Battery Module
  • Rated Capacity 1.28kwh
  • Nominal Voltage 12.8V
  • Charge cut-off voltage 14.6v
  • Discharge cut-off voltage 10v
  • Max Discharge current 100A
  • Design Life: -/+ 3-5 Years
  • Charging working temperature 0-45C
  • Dimensions (LxWxH): 329  x  173 x 216 mm
  • Weight: Approx. 10.5kg
  • Can Be Connected in Series & Parallel
  • 4 series 4 parallel
  • 3000 cycles @ 80% Depth Of Discharge (DOD)

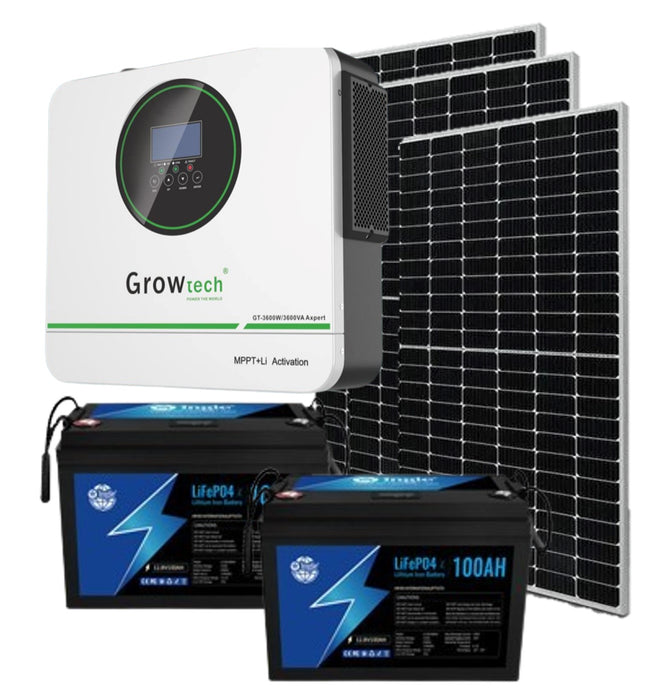

Combo includes:

  • 2x 12.8v 100ah 1.28Kwh Ingle Lithium Battery (2 Years Warranty)
  • 1x Growtech 3600W 24V MPPT Solar Hybrid Inverter (1 Years Warranty)

  • 3x Megatron 460w Mono Solar Panel (25 Year Product Warranty)

  • PLEASE NOTE COURIER FOR SOLAR PANELS ARE AT YOUR OWN RISK
  • Warranties:
    All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
