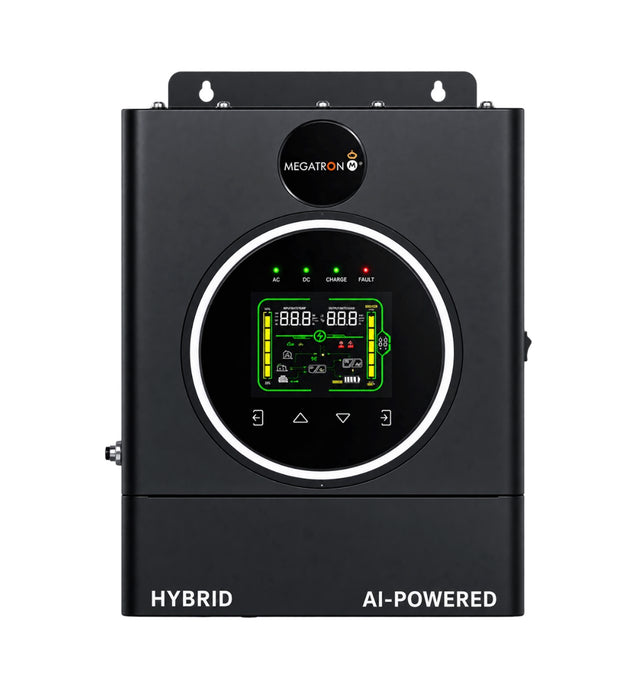

3Kw 24v Hybrid Inverter Megatron MT-3K1P-G2

3Kw 24v Hybrid Inverter Megatron MT-3K1P-G2

Features :

-Built in Al for energy management.
-Built in WiFi for remote monitoring.
-You can talk to inverter through megatron Al app.
-Works without battery as grid tie.
-Built in 2 AC output, 1 for essential load and 1 for non essential load.
-Battery equalisation function.
-Built in communication port for BMS.
-Parallel up to 9 units.
-Can feed back to grid.

Product Details:

Model Number: MT-3K1P-G2

Brand: MEGATRON

Main PV Input:

• Max PV Input Power: 3300W
• Max PV Input Voltage: 500V d.c.
• MPPT Voltage Range: 60-450V d.c.
• Recommend MPPT Voltage: 240-340V d.c.
• Max PV Input Current: 18A d.c.

Battery Specifications:

• Battery Type: Li-ion or Lead-acid
• Battery Voltage Range: 20-30V d.c.
• Max Charge/Discharge Current: 120A d.c. / 137A d.c.

AC Input:

• Rated Voltage: 230V a.c.
• Max Continuous Current: 25A a.c.
• Rated Frequency: 50/60Hz

AC Output (Back-up):

• Max Apparent Power: 3000VA
• Rated Voltage: 230V a.c.
• Max Current: 13A a.c.
• Frequency: 50/60Hz

Physical & Environmental:

Operating Temperature Range: -10...+60°C

Ingress Protection: IP20

• 3-Years Repair Warranty

Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
