6.2KVA ECCO Hybrid Inverter and Battery 48V ECCO 5.12 KWH Lithium Battery Plus 6 X 455w Canadian Solar Panels
Available Online & In-Store, Pay on Collection
Delivery Estimate 1-2 Business Days
6.2KVA ECCO Hybrid Inverter and Battery 48V ECCO 5.12 KWH Lithium Battery Plus 6 X 455w Canadian Solar Panels

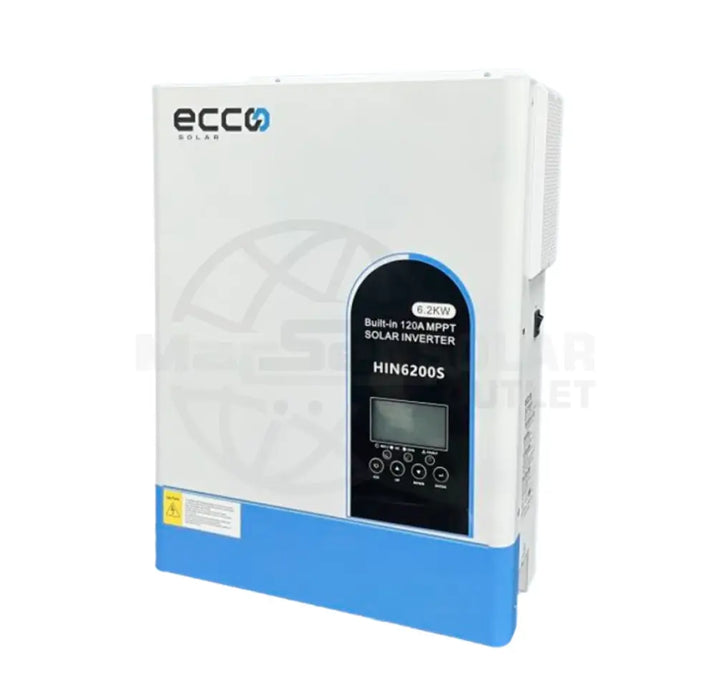

6.2 Kva 6200w Hybrid Inverter 48v Mppt 120A Inverter Pure Sine Wave - Ecco
This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Features
- Dual output for smart load management
- Lithium battery activation function by PV or Utility - Compatible work with LiFePO4 battery via RS485 - PV Input 500 Vdc Max
- Built-in MPPT 120A
- Capable to work without battery
- Detachable dust cover for harsh environment
- Wifi remote monitoring optional
- Support multiple output priority: UTL, SOL, SBU, SUB - EQ function to optimize battery performance and extend lifecycle
What's in the box
1 x Inverter
1 x User Manual

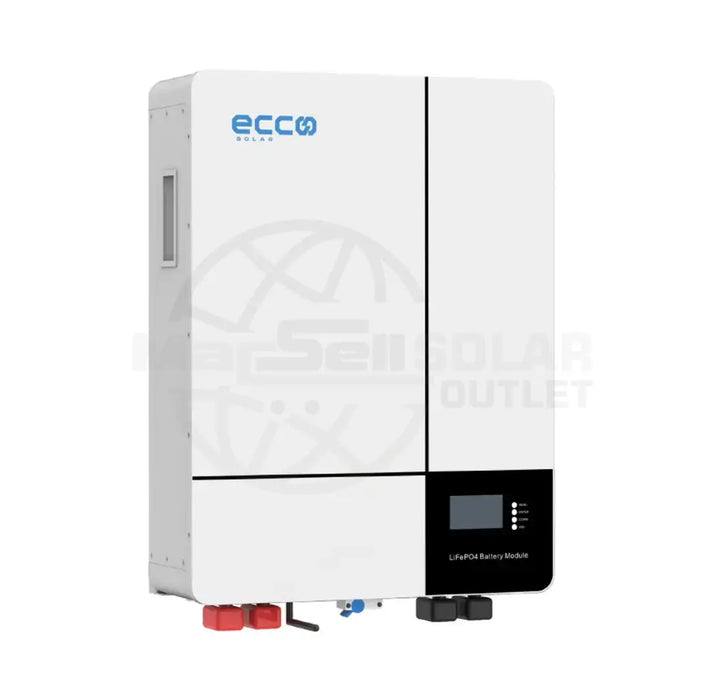

5.12kWh Lithium Battery Ecco 51.2v 100ah ME51100 Wall-Mounted
The ME Series offers a versatile and reliable power solution. Combine up to 40 units for energy capacities ranging from 2560Wh to 15360Wh. With WiFi Remote Monitoring, stay connected and in control. Whether it's wall- mounted convenience, stacked-mounting (up to 5 units) for space efficiency, or rack-mounted for industrial power management, this series offers seamless adaptability.
- Vertical-mounted only for ME51300 & ME51320
- Large capacity, high power output
- Safest lithium iron phosphate battery cell with high energy density
- Modular design: supports up to 40 units in parallel
- Support CAN & RS485 communication with mainstream inverters Local monitoring via LCD monitor
- Built-in WiFi Smart BMS Module

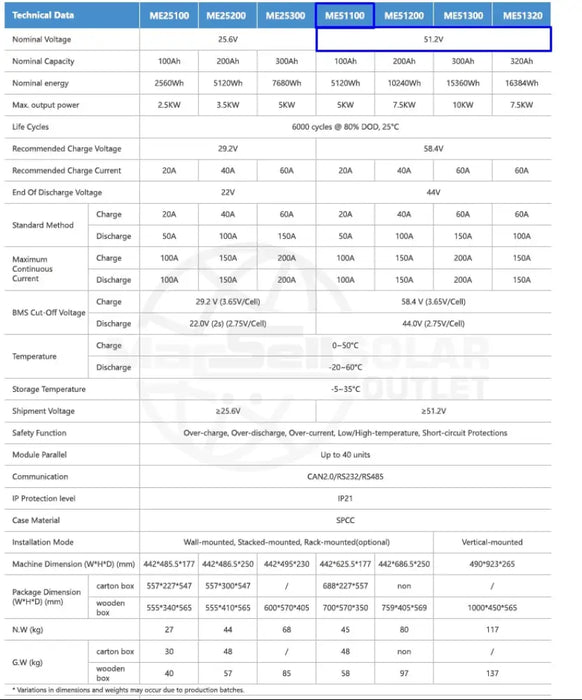

Specifications:
Nominal Voltage (V) 51.2
Nominal Capacity (Ah) 100
Total Power (kWh) 5.12
Best Charging Voltage (V) 58.4 (recommended)
Maximum Continuous Output Power (A) 100A
Maximum Momentary Output Power (A) 100A
Package Size (mm) 442 X 625.5 X 177
Weight (kg) 45

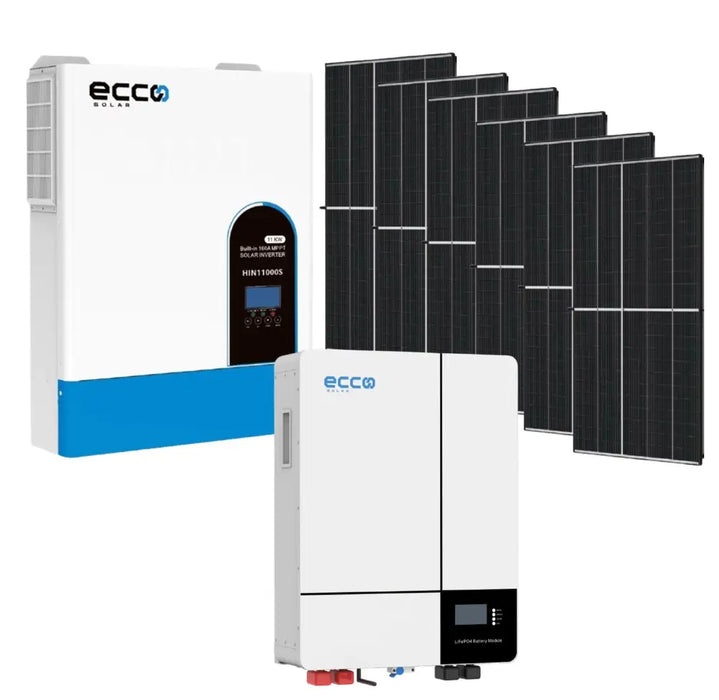

Combo Includes:
1x 5.12kWh Lithium Battery Ecco 51.2v 100ah ME51100 Wall-Mounted ( 5 Years Warranty)
1x Hybrid Inverter Ecco 6.2KVA 6200W Watt MPPT(5 Years Warranty)
6x Canadian 455w Mono Solar Panel HiKu6 Mono
PLEASE NOTE COURIER FOR SOLAR PANELS ARE AT YOUR OWN RISK
Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
- PLEASE NOTE COURIER FOR SOLAR PANELS ARE AT YOUR OWN RISK
ADD A Solar Installation Kit:
Solar Installation Kit for 6 Solar Panels, Inverter and Battery
