6.2KVA Ecco Solar Inverter and Battery Combo 51.2V 5.12 KWH Lithium Battery
Available Online & In-Store, Pay on Collection
Delivery Estimate 1-2 Business Days
6.2KVA Ecco Solar Inverter and Battery Combo 51.2V 5.12 KWH Lithium Battery

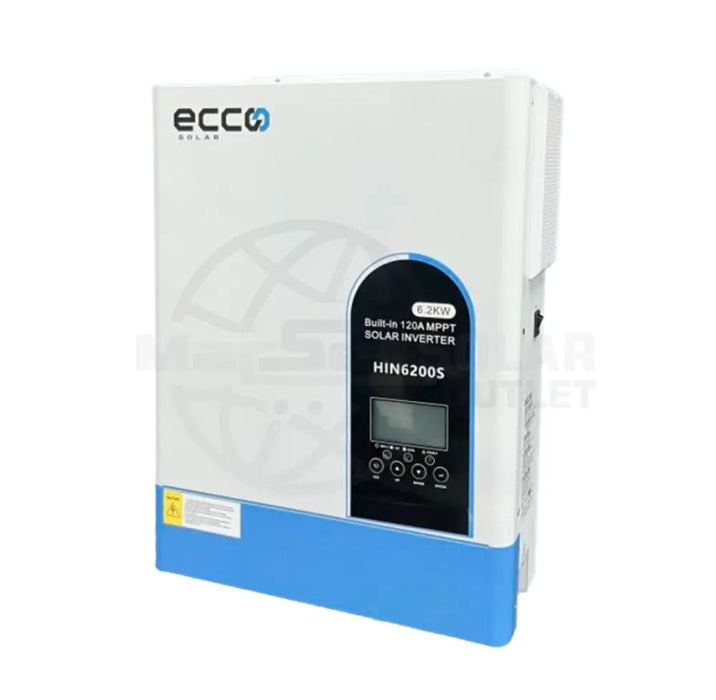

6.2 Kva 620000w Hybrid Inverter 48v Mppt 120A Inverter Pure Sine Wave - Ecco
Features
- Dual output for smart load management
- Lithium battery activation function by PV or Utility - Compatible work with LiFePO4 battery via RS485 - PV Input 500 Vdc Max
- Built-in MPPT 120A
- Capable to work without battery
- Detachable dust cover for harsh environment
- Wifi remote monitoring optional
- Support multiple output priority: UTL, SOL, SBU, SUB - EQ function to optimize battery performance and extend lifecycle
Specifications:
Dimensions ; 438 x 312 x 122
Weight : 11kg
It is recommended to use ECCO Batteries and Solar Panels for Quality Guaranteed Results.
Important Note: This product requires installation by a qualified PV installer, the PV installer must be able to issue a Certificate of Compliance. This is to ensure that the installation is safe and correct, as well as, within the scope of relevant regulations.
What's in the box
1 x ECCO 6.2KW Inverter
1 x Connecting Cables
1 x User Guide
- 5-Year Repair Warranty

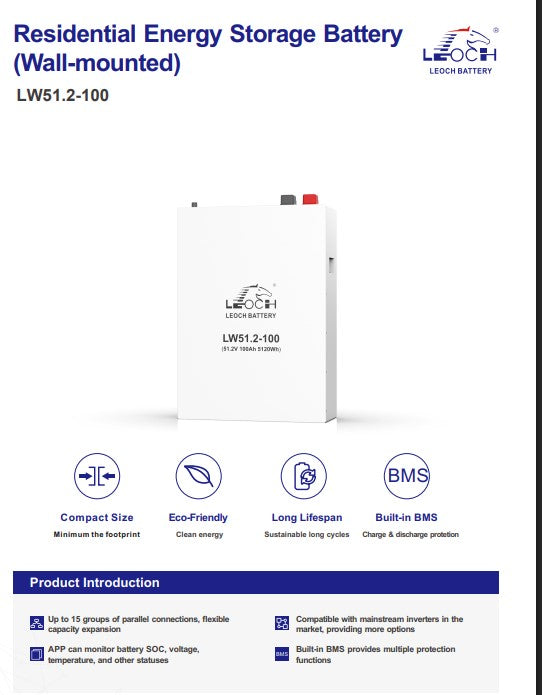

100ah 5.12kWh Lithium Battery LW51.2-100 Wall-Mounted Leoch 51.2V
Features
- Compact Size
- Eco-Friendly
- Long Lifespan
- Built-in BMS
- Can be used in parralel with Ecco W51100 & ELV51100 Battery.
Product Introduction
Up to 15 groups of parallel connections, flexible
capacity expansion
APP can monitor battery SOC, voltage,
temperature, and other statuses
Compatible with mainstream inverters in the
market, providing more options
Built-in BMS provides multiple protection
functions
Specifications :
Model : LW51.2-100
Nominal Voltage : 51.2 V
Rated Capacity : 100 Ah
Energy : 5.12 kWh
Discharge Ending Voltage : 43.2 V
Charging Limited Voltage : 58.4 V
Max. Charge/Discharge Current : 100 A
Weight Approx. 48 Kg
Dimensions (W*D*H) mm (inches) : 400 *560 *150 mm
Protocol : RS485/RS232/CAN
Max number of parallel connections : 15
Design life : More than 15 years
Cycle Life : More than 6000 cycles @ 80% DOD
IP Class : IP30
Case Material : SPCC
Operating Temperature Charging : 0 to +45℃ Discharging: -10 to +55℃ Storage: -20 to +60℃
Fuction : Bluetooth & WiFi
Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
1x Hybrid Inverter 48v 6.2 Kva 6200w MPPT 120A Inverter Pure Sine Wave - Ecco (5 Years Repair Warranty)
