Deye 12KW Three Phase Hybrid Inverter Deye

Save R 3,250.00 Save R 3,250.00
Original price R 46,000.00
Original price R 46,000.00 - Original price R 46,000.00
Original price R 46,000.00
Current price R 42,750.00
R 42,750.00 - R 42,750.00
Current price R 42,750.00
    Visa Mastercard mobicred Zapper Maestro PayFast Instant EFT
Availability:
in stock, ready to be shipped

Available Online & In-Store, Pay on Collection

Delivery Estimate 1-2 Business Days

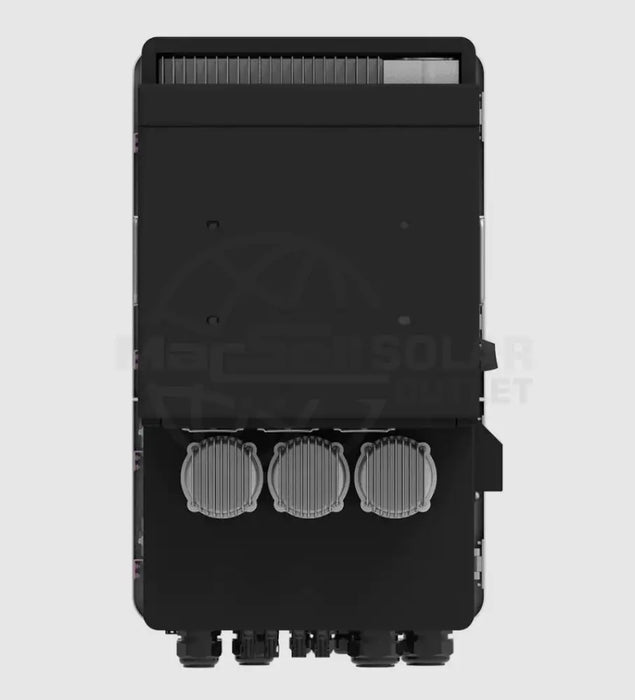

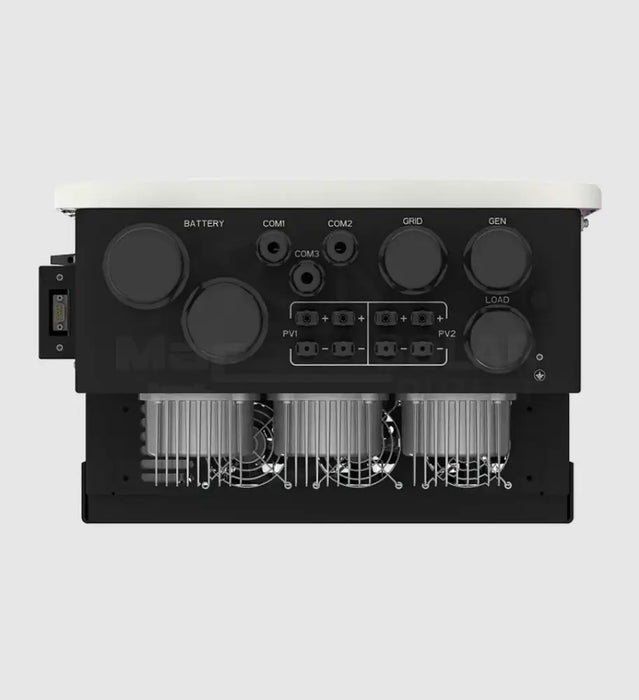

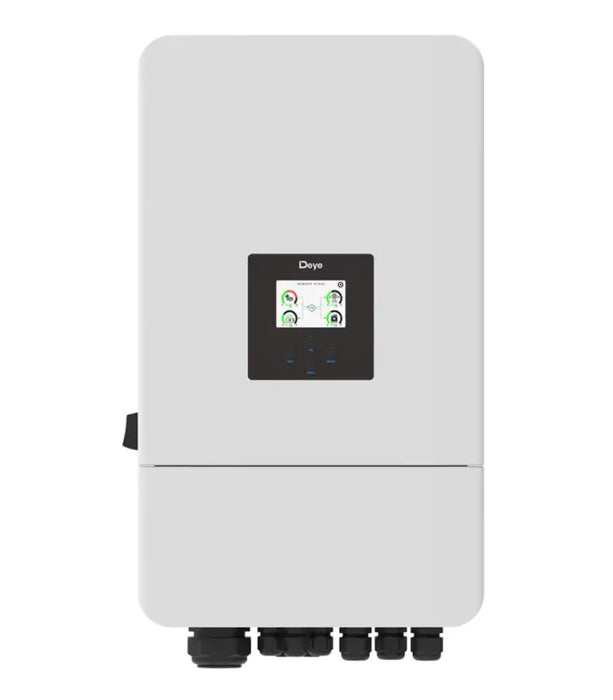

Deye 12KW Three Phase Hybrid Inverter Deye



  • Deye’s 3phase hybrid inverter with a battery voltage range of 40~60V is expected to bring an end to the problem that the DC high voltage causes fires.
  • The Deye 12Kw 3 Phase Hybrid Inverter is a hybrid inverter for both wind turbines and solar panel.
  • This hybrid inverter is highly reliable and cost-effective.
  • It automatically switches from AC mode to DC mode within five milliseconds.

Deye 12Kw Hybrid inverter adopts the latest “battery management system” (BMS), which is a critical part of hybrid inverter system to ensure the safety and stability of the whole system.



Deye 12KW Hybrid Solar Inverter Features:

  • 48V low voltage battery, transformer isolation design.
  • 6 time periods for battery charging/discharging.
  • Max. charging/discharging current of 240A.
  • Frequency droop control, Max.16pcs parallel.
  • DC couple and AC couple to retrofit the existing solar system.
  • Support storing energy from a diesel generator.
  • Supports three-phase unbalanced output.
  • Unique Smart Load application and Grid peak-shaving function.

100% Unbalanced Output.

  • The series inverter supports unbalanced output.
  • Each phase Max. output power is up to 50%Pn. E.g. for the 12KW hybrid inverter, the A-phase Max. output power can reach 6KW.

Droop Control.

  • Adopts frequency droop control technology to ensure system reliability and stability.
  • With the droop characteristics of traditional diesel generators, and it can adjust the output power by changing the frequency and voltage.

Support Max. Number of Parallel of 16pcs.

Higher yields.

  • Improve self-consumption ratio up to 80%, reducing your electricity bill.
  • DC/AC ratio up to 1.3, completely suitable for double-side PV modular.
  • Two MPPT designs, Max. efficiency of 97.6%.

User-friendly.

  • LCD Touch screen and buttons, easy operation.
  • Compatible with a lithium-ion battery and lead-acid battery.
  • Web browser and mobile App monitoring supported.

Reliable.

  • PV lighting protection, Anti-islanding protection, Leakage current protection etc.
  • Support store energy from DG when needed, ensure the system working within 7*24H.
  • IP65 protection degree, adapt to indoor and outdoor using.
  • Automatically switch from on-grid to off-grid mode within 5ms.
  • Zero exporting function, fast reaction within 200ms in zero export mode.

Smart.

  • Programmable charging and discharging schedule.
  • Both wind turbines and solar panels can be connected as DC input power.
  • Max. 16 units can be paralleled for higher system power.
  • Retrofitting of existing solar system to energy storage system.
  • 5-Year Warranty
  • Warranties: All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC, and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at the void.
