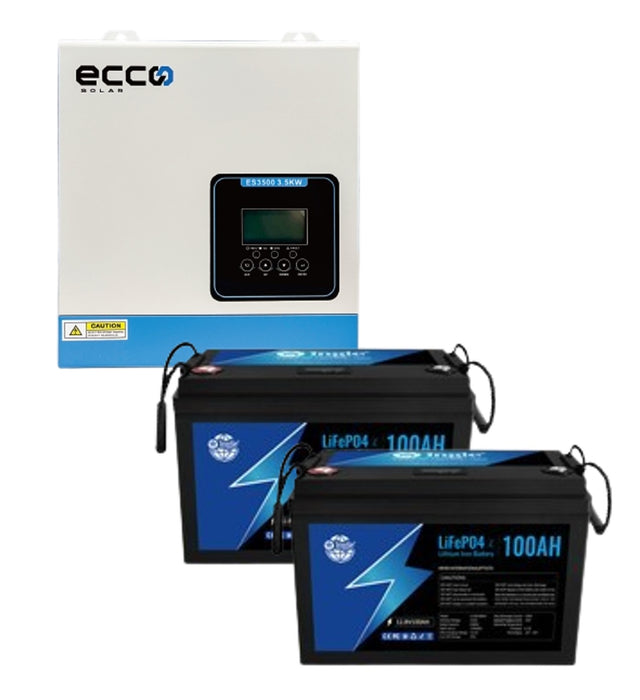

Ecco Solar 3.5kva Mppt 100A & 2X Lithium Battery 2X 100AH 1.28kwh LiFePO4 Combo Kit - MacSell Solar Outlet

Ecco Solar 3.5kva Mppt 100A & 2X Lithium Battery 2X 100AH 1.28kwh LiFePO4 Combo Kit

Save R 4,250.00 Save R 4,250.00
R 13,500.00
R 13,500.00 - R 13,500.00
R 13,500.00
R 9,250.00
R 9,250.00 - R 9,250.00
R 9,250.00
    Visa Mastercard mobicred Zapper Maestro PayFast Instant EFT Google Pay
Availability:
in stock, ready to be shipped

Available Online & In-Store, Pay on Collection

Delivery Estimate 1-2 Business Days

Ecco Solar 3.5kva Mppt 100A & 2X Lithium Battery 2X 100AH 1.28kwh LiFePO4 Combo Kit



Ecco Solar 3.5 Kva Hybrid Inverter 24v 3500w Mppt 100A High Voltage Inverter Pure Sine Wave


The main difference between PWM and MPPT charge control devices is that the MPPT devices are more efficient. MPPT charge control devices have 30 % more efficient in charge efficiency according to PWM type. Panel voltage and battery voltage should be matched in PWM systems.

Features:

Pure sine wave
Power factor 1.0
PV input Voltage 120Vdc~450Vdc
Built-in MPPT 100A
Detachable dust cover for harsh environment
WIFI remote monitoring optional
Support multiple output priority: UTL, SOL, SBU,
RS485 BMS Communication
Lithium battery activation

12.8v 100ah 1.28Kwh Lithium Battery Ingle


SPECIFICATIONS

  • 12V 100Ah LiFePo4 Single Battery Module
  • Rated Capacity 1.28kwh
  • Nominal Voltage 12.8V
  • Charge cut-off voltage 14.4v
  • Discharge cut-off voltage 11.2v
  • Max Discharge current 150A
  • Design Life: -/+ 3-5 Years
  • Charging working temperature 0-45C
  • Dimensions (LxWxH): 329  x  173 x 216 mm
  • Weight: Approx. 10.5kg
  • Can Be Connected in Series & Parallel
  • 4 series 4 parallel
  • 3000 cycles @ 80% Depth Of Discharge (DOD)

General Data

Dimension (mm) W442 * D450 * H133
Weight 25.5
Material LiFePO₄
Design Life 10 years
Outer Package Black aluminum and sheet metal case (battery rack or cabinet is optional)

Size:

442 X 400 X 133 MM

25.5kg

 Combo includes:

  • Warranties:
    All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
