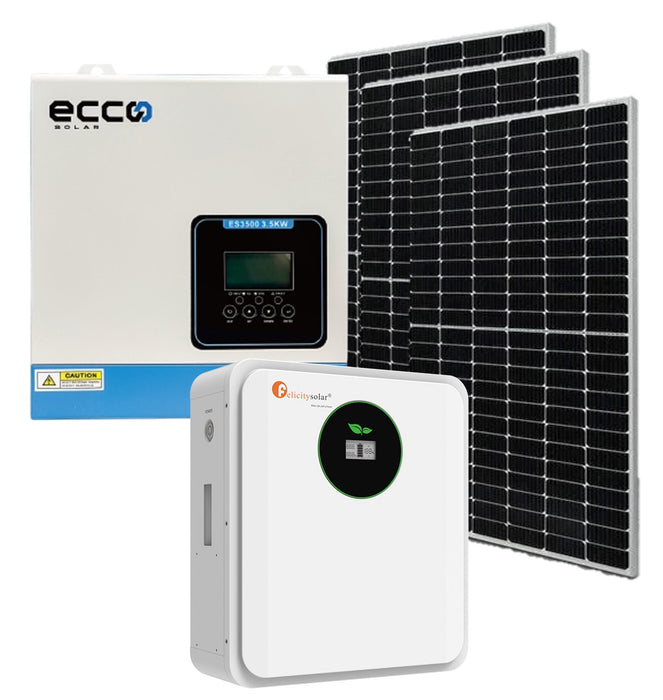

ECCO Solar 3500w Hybrid Inverter and 24V 100Ah 2.56kWh Lithium Battery Plus 3 X 460w Solar Panels

3.5 Kva Hybrid Inverter 24v 3500w Mppt 100A Inverter Pure Sine Wave - Ecco

Model Name : ES3500

Inverter Mode :
Rated Power : 3500VA/3500W
Nominal Voltage : 24V

Ac Charger Mode :
AC Input : 230VAC 50/60HZ
MAX Charge Current : 60A
Max Charger Current AC+PV : 100A
AC Ouptut : 230VAC

Solar Charger Mode:
Max PV Array Power: 4000W
Min Solar Voltage : 30VDC
Max Solar Voltage (VOC) : 500VDC
Max MPPT Charge Current : 100A

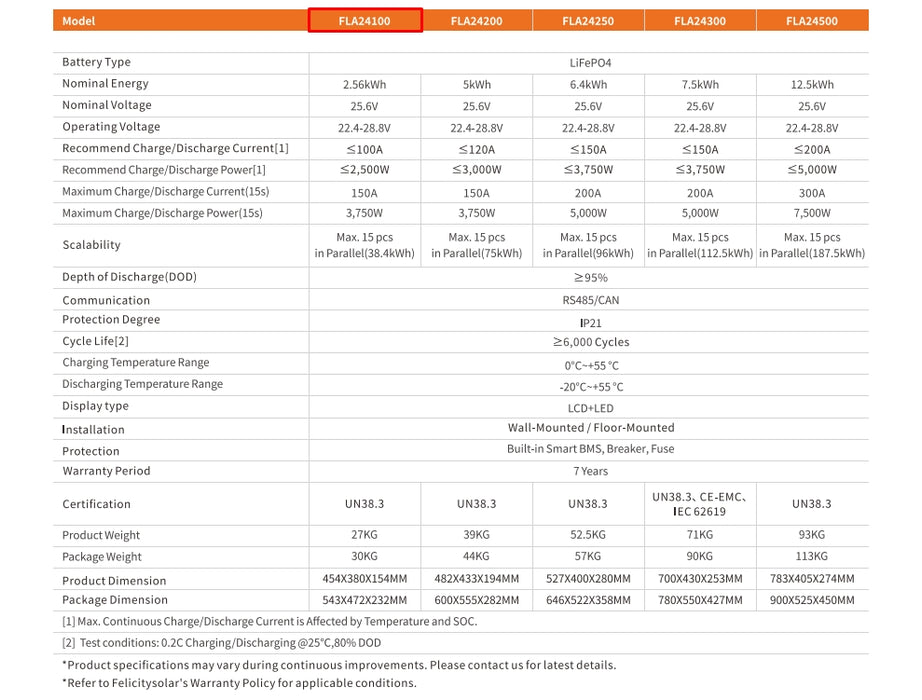

24V Lithium Battery Felicity 25.6v 100Ah 2.56 kWh

Specifications :

Battery Type Nominal Energy : LiFePO4
Nominal Voltage : 25.6V
Operating Voltage : 22.4-28.8V
Max. Continuous Charge/Discharge Current[1] : 100A
Peak Charge/Discharge Current(15s) : 200A
Max. Charge/Discharge Power : 2500W
Scalability : MAX 15 IN PARRALEL
Depth of Discharge (DOD) : 95%
Communication :  RS485/CAN
Protection Degree : IP21
Cycle Life : 6000 CYCLES
Display Type : LCD+LED
Installation :  WALL / FLOOR MOUNTED
Protection :  Built In Smart BMS,FUSE
Warranty Period : 7 Years
Certification : UN38.3
Product Weight : 23KG
Package Weight :  27KG
Product Dimension : 325 X 400 X 180MM
Package Dimension : 462 X 417 X 252MM

Package Includes:

• 1x 24V Lithium Battery Felicity 25.6v 100Ah 2.56 kWh 7 year Warranty

• 1x Hybrid Inverter 24v 3.5 Kva 3500w Mppt 60A Inverter Pure Sine Wave - Ecco (5 Years Warranty)
• 3X 460w Mono Solar Panel Mono Megatron Bifacial
