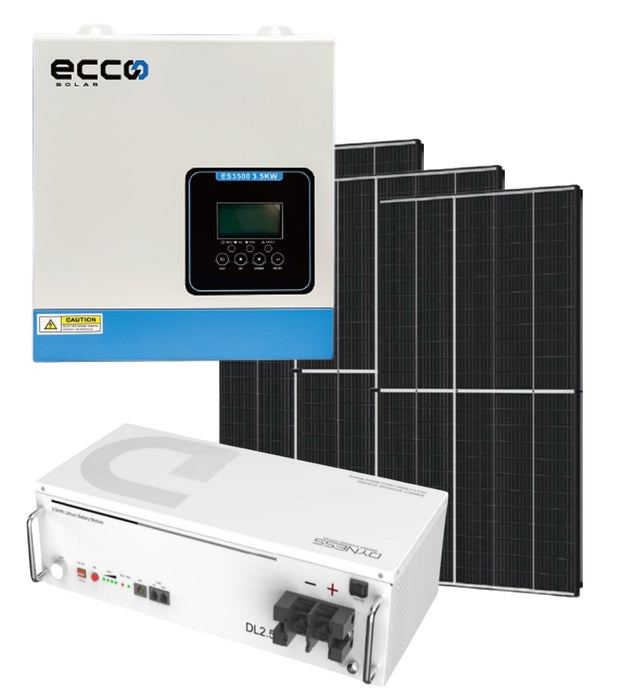

ECCO Solar 3500w Hybrid Inverter and Battery Dyness 24V 100Ah 2.56kWh Lithium Battery Plus 3 X 460w Canadian Solar Panels

3.5 Kva Hybrid Inverter 24v 3500w Mppt 100A Inverter Pure Sine Wave - Ecco

Inverter Mode :
Rated Power : 3500VA/3500W
DC Input : 24VDC 158A
AC Ouput : 230VAC 50/60Hz 15.2A

Ac Charger Mode :
AC Input : 230VAC 50/60 Hz 23.5A
DC Ouput : 27VDC
MAX Charge CUrrent : 80A
Max Charger Current AC+PV : 100A
AC Ouptu : 230vac 50/60 hz 15.2A

Solar Charger Mode:
Max PV Array Power: 4000W
Min Solar Voltage : 60VDC
Max Solar Voltage (VOC) : 500VDC
Max Charge Current : 100A

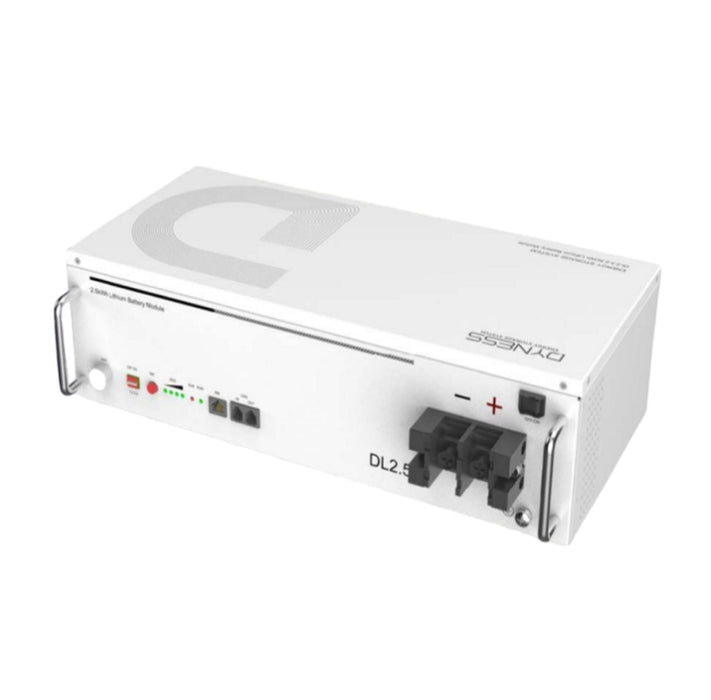

Dyness 24V 2.56Kw 100Ah DL2.5 Lithium Battery

Dyness DL2.5 is a good alternative for lead-acid batteries and a perfect match for on/off-grid applications in areas with limited or no grid access. It is scalable from 2.56kWh to 40.96kWh (up to 16 units in parallel), ensuring you sufficient capacity to meet different requirements.

Specifications:

Energy: 2.56kWh
Installation Type: Wall Mounted
Battery Type-Chemistry: Li-ion (LFP)
Nominal Voltage: 25.6V
Nominal Capacity: 100Ah
Energy Density: 2560 Wh
Battery Life Cycles: 4000
Battery Discharge Current (A): 50 (recommended) / 130 (max 30min)
Battery Charge Current (A): 50(recommended) / 75(max 40min
Dimensions (LxWxH): 481 x 221 x 133 mm
Weight (Approx.): 23 Kgs
Depth of Discharge (DOD): 95%
Communication: CAN/RS485/Wifi (Optional)
IP Grade: IP20
Working temperature:Charging 0℃~+55℃ / Discharging -20℃~+55℃
Humidity: 5%~85% RH (No condensation, system works well.)
Storage temperature: -10℃~+35℃
Max. Parallel Connection: 16

Package Includes:

• 1x Dyness 24V 2.56Kw 100Ah  DL2.5 Lithium Battery(10 Years Warranty)

• 1x Hybrid Inverter 24v 3.5 Kva 3500w Mppt 60A Inverter Pure Sine Wave - Ecco (5 Years Warranty)
• 3X 460W Solar Panel Mono Trina Tier 1 Mono TSM-XXXNEG9R.28 460W (Black Frame)
