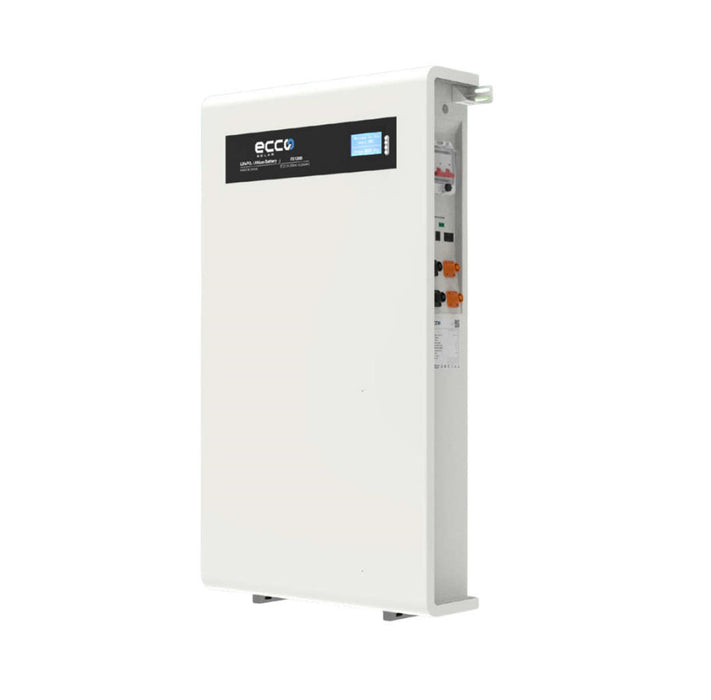

Ecco Solar 51.2v 200ah 10.24Kwh Lithium Battery F51200 LiFeP04

Ecco Solar 51.2v 200ah 10.24Kwh Lithium Battery F51200 LiFeP04

Widely Compatibility: support major leading inverter brands and conventional
VRLA powered system.
Superior Safety: build-in BMS——eliminates the risk of explosion or combustion
due to high impact, overcharging or short circuit situation with safe lithium iron
phosphate chemist.
Flexible Configuration: floor stand design easy to be installed. Optional HMI,
max. 16 sets in parallel supported.
High Performance: support 1C or 100A charge/discharge, widely working
temperature. Cells comply with CE, UL and IEC standards.

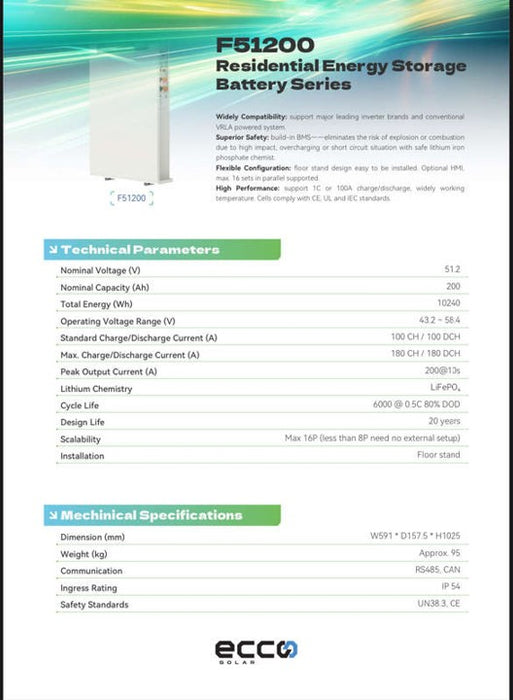

Technical Parameters

Nominal Voltage (V) 51.2
Nominal Capacity (Ah) 200
Total Energy (Wh) 10240
Operating Voltage Range (V)
Standard Charge/Discharge Current (A)
Max. Charge/Discharge Current (A) 180 CH / 180 DCH
Peak Output Current (A) 200@10s
Lithium Chemistry LiFePO₄
Cycle Life 6000 @ 0.5C 80% DOD
Design Life 20 years
Scalability Max 16P (less than 8P need no external setup)
Installation Floor stand

Mechanical Specifications

Dimension (mm) W591 * D157.5 * H1025
Weight (kg) Approx. 95
Communication RS485, CAN
Ingress Rating IP 54
Safety Standards UN38.3, CE

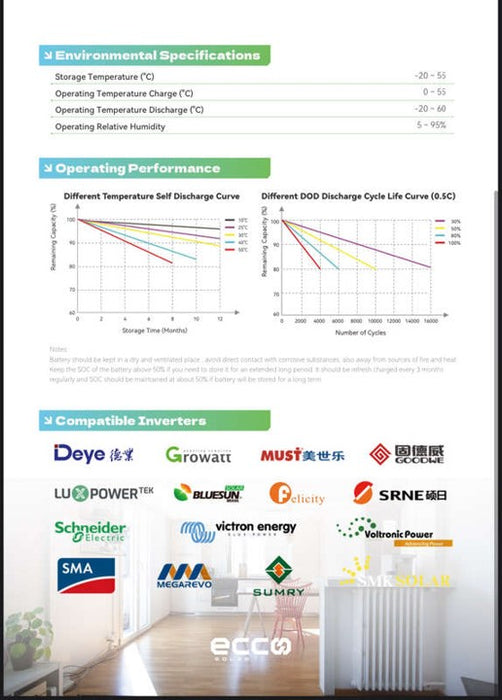

Operating Performance
6000 Cycles & 80% DOD

5 Years Warranty
