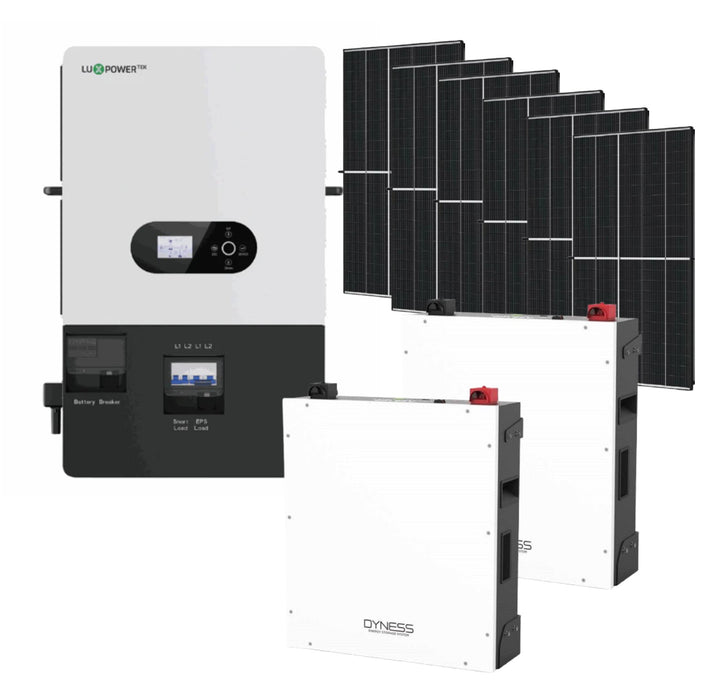

LuxPower 12kW (SNA12000) Plus 2X Dyness 5.12kwh Batteries & 8 X 580W Mono Solar Panel
Available Online & In-Store, Pay on Collection
Delivery Estimate 1-2 Business Days
LuxPower 12kW (SNA12000) Plus 2X Dyness DL5.0C 5.12kwh Batteries & 6 X 580W Mono Solar Panel

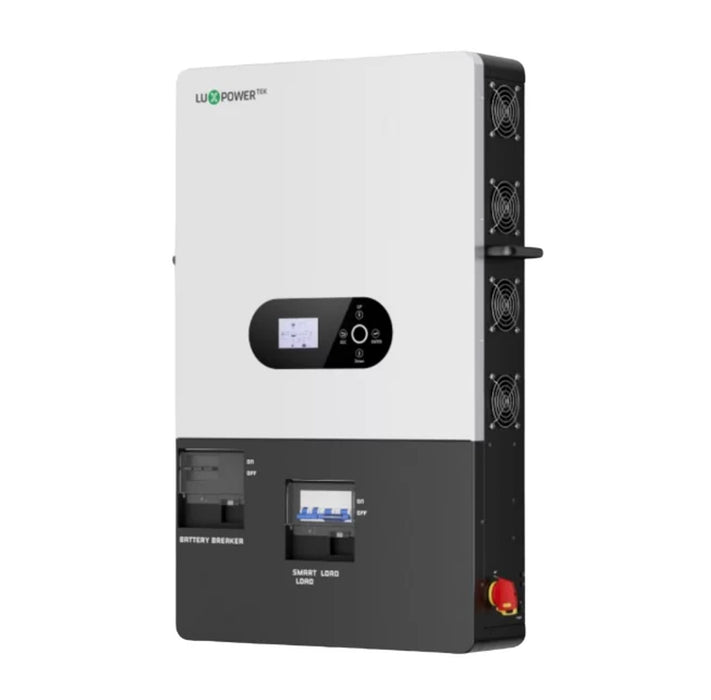

LuxPower 12kW (SNA12000) Single Phase Hybrid Inverter
- Max. PV array power (W): 24000 (12000/12000)
- Rated PV input voltage (V): 320
- Number of independent MPPT inputs: 2/(2:2)
- PV input voltage range (V): 100-480
- MPPT voltage range (V): 120-385
- Start-up voltage (V):100
- Max. PV input current per MPPT (A): 35/35
- Max. PV short-circuit current input per MPPT (A): 44/44
- Compatible battery type: Lithium-ion/Lead-Acid
- Rated battery voltage (V): 48/51.2
- Max. charging / discharging current (A): 250
- Max. charging / discharging power (W):12000
- Force wake up battery from PV and Grid function: Yes
- Dimensions ( W*H*D mm ): 530*830*150mm
- Weight: 40kg
- Warranty: 2Years
DYNESS Lithium Battery DL5.0C 5.12 kWh 51.2v
DYNESS DL5.0C adopts economic design, and is tailor-made for residential & small commercial application. This LFP battery module supports remote update and APP monitoring,and provides multiple installation methods. It is scalable from 5.12 -256 kWh (max. 50 modules in parallel), providing various energy storage options to meet different requirements.
- Capacity: 5.12kWh
- Battery Type: Lithium-ion
- Continuous Output Power
- Battery Management System (BMS): Yes
- Protection Features: Overcharging, Over-discharging, Short Circuit Protection
- Cycle Life: Ensuring a long-lasting energy solution
Thornova 580w Tier 1 Mono Solar Panel TS-SWT272(580)
Nominal Max. Power (Pmax) 580 W
Opt. Operating Voltage (Vmp) 44.48 V
Opt. Operating Current (Imp) 13.04 A
Open Circuit Voltage (Voc) 51.90 V
Short Circuit Current (Isc) 13.61 A
Dimensions: 2278 x 1134 x 30 27.2kg
Super Warranty
- 15 Year product warranty
- 30 Year linear output power warranty
- 0.40% annual degradation
Combo includes:
- 2x DYNESS Lithium Battery DL5.0C 5.12 kWh 51.2v (10-year warranty)
- 1x LuxPower 12kW (SNA12000) Single Phase Hybrid Inverter (2 year warranty)
- 8x Thornova 580w Tier 1 Mono Solar Panel TS-SWT272(580)
- Battery Cables And Brackets Included
-
(Courier for panels are at your own risk)
