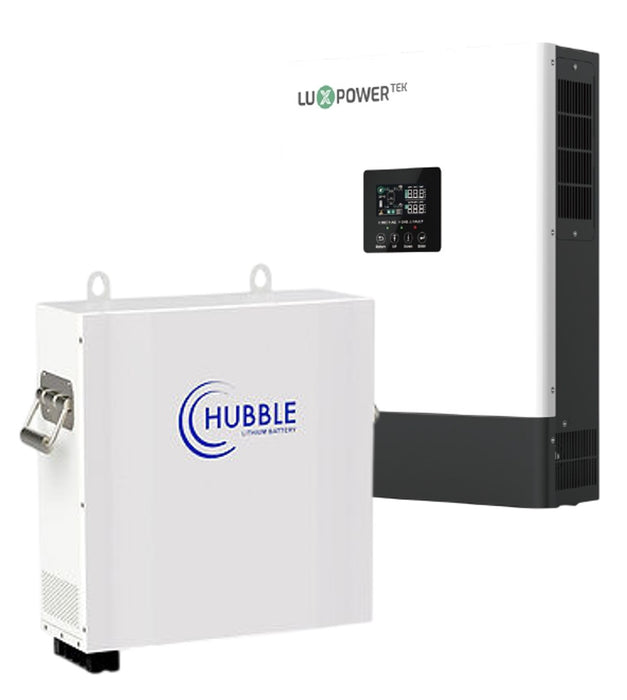

Luxpower 3.6KVA Hybrid Inverter & 2.5 KWh Hubble Lithium Battery Combo
Available Online & In-Store, Pay on Collection
Delivery Estimate 1-2 Business Days
Luxpower 3.6KVA Hybrid Inverter & 2.5 KWh Hubble Lithium Battery Combo
Luxpower GETA-LB-EU 3.6Kw Hybrid Single Phase Inverter Geta 3.6/24V-120
Max. PV input 500V
Dual outputs for intelligent load management
Battery activation via PV and utility grid
Flexible operation modes to meet diverse energy needs
EQ function for enhanced battery performance
and longevity
Remote monitoring possible (WIFI-Dongle not included)
Input (PV DC)
Max. PV array power (W) 4000
Number of independent MPPT inputs 1
Max. PV input voltage (V) 500
MPPT voltage range (V) 100-500
Start-up voltage (V) 55
Max. PV input current per MPPT (A) 18
Battery
Compatible battery type Lithium-ion / Lead-acid
Rated battery voltage (V) 24
Floating Charge Voltage (V) 27
OverCharge Protection (V) 32
Max. PV Charge Current 100
Max. AC Charge Current 60
Max. Charge Current (PV+AC) 100
Force wake up battery from PV function Yes
Force wake up battery from Grid function Yes
UPS
Rated output power (W) 3600
Rated output voltage (V) 120VAC+5%
Rated output current (A) 30
Rated AC output power (W) 3600
General
Dimensions (W × H × D) 307.4 × 418 × 111 mm / 12.1 × 16.5 × 4.4 in
Weight 7KG
Warranty 2 Years
Hubble Lithium Battery Wallmount 25V 2.5kWh 100AH AM-4 V3
SPECIFICATIONS
Nominal Energy 2.56 kWh
*Rated Capacity 100 Ah
Nominal Voltage 25.6 V
Equalized Charge Voltage 27.6 V
Max. Continuous Charging Current 100 A
Max. Continuous Discharging Current 100 A
Depth of Discharge 100%
C Rating 1.0 C
Cells LiFePO4 (LFP)
Cycle Life @ 1C +/- 6000 Cycles @ 50% DOD, Above 3000 cycles @ 100% DOD
Design Life +/- 15 Years
Parallel Parallel connection up to 15 packs with full communications
Ports 1x CAN-bus, 2x Battery Link Ports
Protection Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting
Operating Temperature
Charging: 0 to +55°C
Discharging: -10 to +55°C
Storage: -10 to +55°C
Weight Approx. 25 Kg
Dimensions (WxDxH) mm 420mm x 153mm x 490mm
Outer Package Material White bake lacquer steel case
Certification CE, UN38.3, GBT31484-2015, GBT31485-2015, GBT31486-2015
Combo includes:
1x Luxpower GETA-LB-EU 3.6Kw Hybrid Single Phase Inverter Geta 3.6/24V-120 2 Year Warranty
1x Hubble Lithium Battery Wallmount 25V 2.5kWh 100AH AM-4 V3 (10 Years Warranty)
