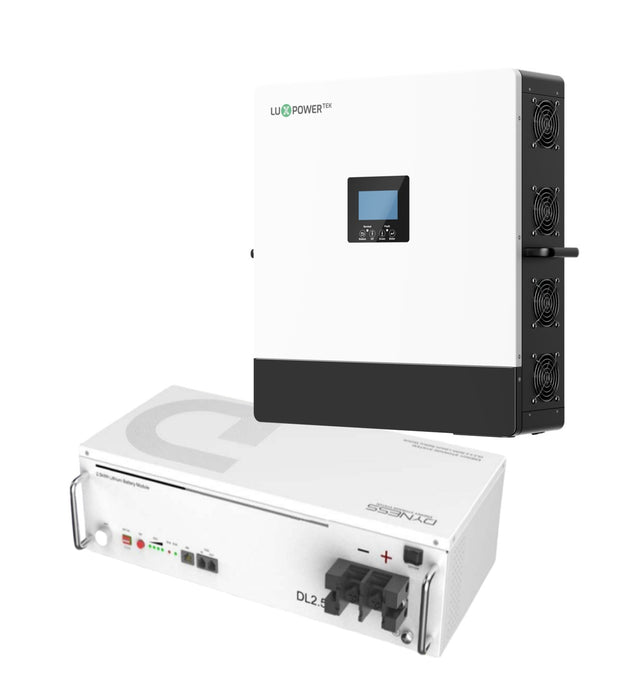

Luxpower 3600w Hybrid Inverter and Battery Dyness 24V 100Ah 2.56kWh Lithium Battery

Luxpower 3.6Kw Hybrid Single Phase Inverter Geta 3.6/24V-120 GETA-LB-EU

Input (PV DC)
Max. PV array power (W) 4000
Number of independent MPPT inputs 1
Max. PV input voltage (V) 500
MPPT voltage range (V) 100-500
Start-up voltage (V) 55
Max. PV input current per MPPT (A) 18

Battery
Compatible battery type Lithium-ion / Lead-acid
Rated battery voltage (V) 24
Floating Charge Voltage (V) 27
OverCharge Protection (V) 32
Max. PV Charge Current 100
Max. AC Charge Current 60
Max. Charge Current (PV+AC) 100
Force wake up battery from PV function Yes
Force wake up battery from Grid function Yes

UPS
Rated output power (W) 3600
Rated output voltage (V) 230VAC+5%
Rated output current (A) 30
Rated AC output power (W) 3600

Dyness 24V 2.56Kw 100Ah DL2.5 Lithium Battery

Dyness DL2.5 is a good alternative for lead-acid batteries and a perfect match for on/off-grid applications in areas with limited or no grid access. It is scalable from 2.56kWh to 40.96kWh (up to 16 units in parallel), ensuring you sufficient capacity to meet different requirements.

Specifications:

Energy: 2.56kWh
Installation Type: Wall Mounted
Battery Type-Chemistry: Li-ion (LFP)
Nominal Voltage: 25.6V
Nominal Capacity: 100Ah
Energy Density: 2560 Wh
Battery Life Cycles: 4000
Battery Discharge Current (A): 50 (recommended) / 130 (max 30min)
Battery Charge Current (A): 50(recommended) / 75(max 40min
Dimensions (LxWxH): 481 x 221 x 133 mm
Weight (Approx.): 23 Kgs
Depth of Discharge (DOD): 95%
Communication: CAN/RS485/Wifi (Optional)
IP Grade: IP20
Working temperature:Charging 0℃~+55℃ / Discharging -20℃~+55℃
Humidity: 5%~85% RH (No condensation, system works well.)
Storage temperature: -10℃~+35℃
Max. Parallel Connection: 16

Package Includes:

• 1x Dyness 24V 2.56Kw 100Ah  DL2.5 Lithium Battery(10 Years Warranty)

• 1x Luxpower 3.6Kw Hybrid Single Phase Inverter Geta 3.6/24V-120 GETA-LB-EU 2 year Warranty
