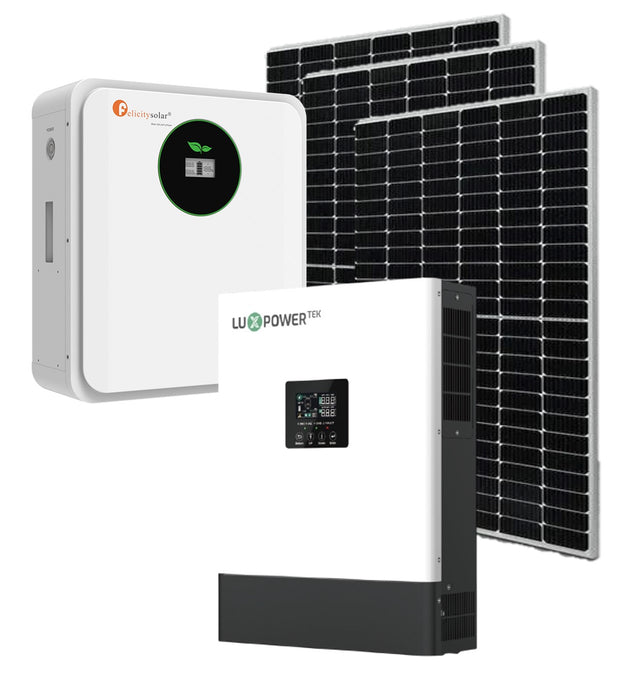

Luxpower 3600w Luxpower Hybrid Inverter + Felicity 24V 100Ah 2.56kWh Lithium Battery + 3 X 460w Solar Panels

Luxpower 3600w Luxpower Hybrid Inverter + Felicity 24V 100Ah 2.56kWh Lithium Battery + 3 X 460w Solar Panels

Luxpower 3.6Kw Hybrid Single Phase Inverter Geta 3.6/24V-120 GETA-LB-EU

Input (PV DC)
Max. PV array power (W) 4000
Number of independent MPPT inputs 1
Max. PV input voltage (V) 500
MPPT voltage range (V) 100-500
Start-up voltage (V) 55
Max. PV input current per MPPT (A) 18

Battery
Compatible battery type Lithium-ion / Lead-acid
Rated battery voltage (V) 24
Floating Charge Voltage (V) 27
OverCharge Protection (V) 32
Max. PV Charge Current 100
Max. AC Charge Current 60
Max. Charge Current (PV+AC) 100
Force wake up battery from PV function Yes
Force wake up battery from Grid function Yes

UPS
Rated output power (W) 3600
Rated output voltage (V) 230VAC+5%
Rated output current (A) 30
Rated AC output power (W) 3600

24V Lithium Battery Felicity 25.6v 100Ah 2.56 kWh

Features :

• Remote Monitoring Via FSolar APP

• Max 15 Units Parallel

• Wall / Floor Mounted Installation

• High Compatibility With Leading Inverter Brands

Specifications :

Battery Type Nominal Energy : LiFePO4
Nominal Voltage : 25.6V
Operating Voltage : 22.4-28.8V
Max. Continuous Charge/Discharge Current[1] : 100A
Peak Charge/Discharge Current(15s) : 200A
Max. Charge/Discharge Power : 2500W
Scalability : MAX 15 IN PARRALEL
Depth of Discharge (DOD) : 95%
Communication :  RS485/CAN
Protection Degree : IP21
Cycle Life : 6000 CYCLES
Display Type : LCD+LED
Installation :  WALL / FLOOR MOUNTED
Protection :  Built In Smart BMS,FUSE
Warranty Period : 7 Years
Certification : UN38.3
Product Weight : 23KG
Package Weight :  27KG
Product Dimension : 325 X 400 X 180MM
Package Dimension : 462 X 417 X 252MM

7 Years Warranty

Package Includes:

• 1x 24V Lithium Battery Felicity 25.6v 100Ah 2.56 kWh 7 Year Warranty

• 1x Luxpower 3.6Kw Hybrid Single Phase Inverter Geta 3.6/24V-120 GETA-LB-EU 2 year Warranty
• 3X 460w Mono Solar Panel Mono Megatron
