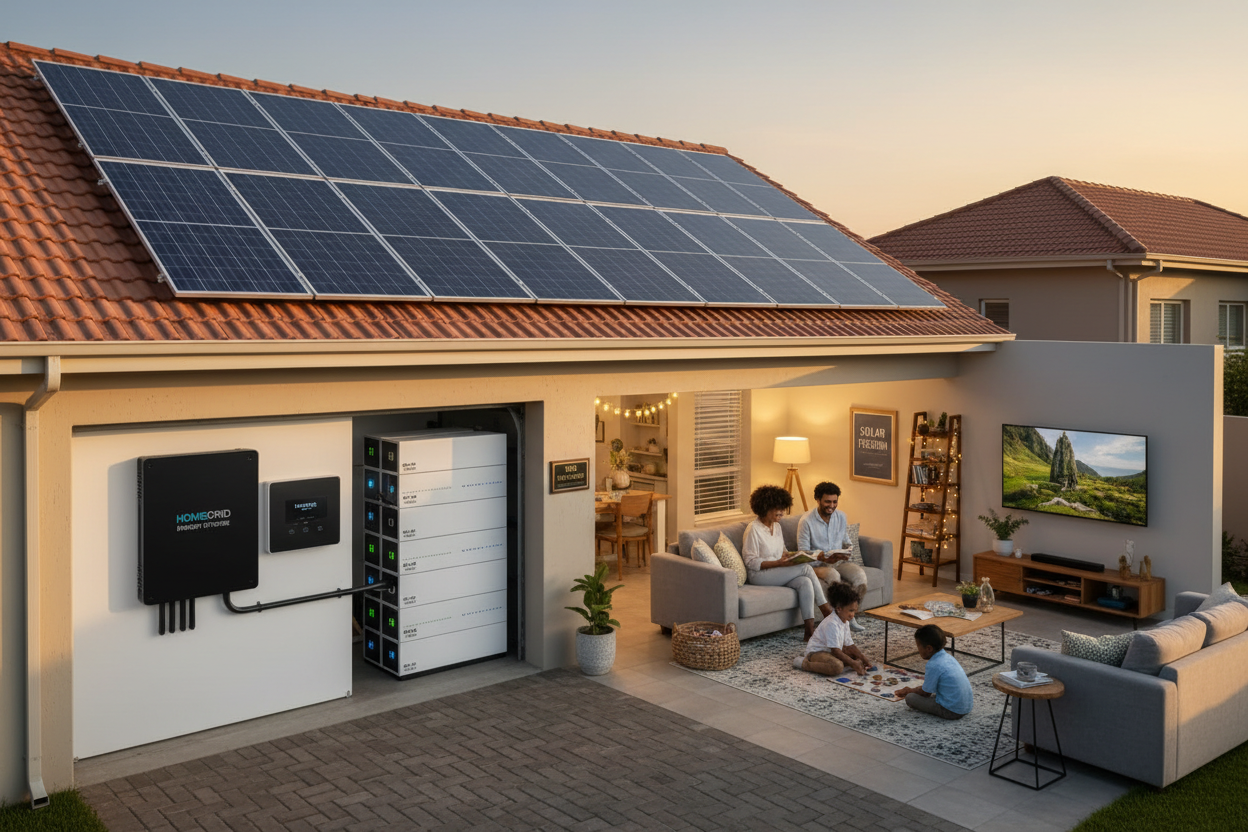

Complete Solar System Setup Guide for South African Homes
Going solar in South Africa is one of the smartest investments a homeowner can make right now. With electricity tariffs rising every year, a well-designed solar system pays for itself — and then keeps saving you money for a decade or more.
This guide covers everything you need to know to plan, choose, and set up a solar system for your home.
The Four Core Components of a Home Solar System
Every home solar system consists of four main parts working together:
- Solar Panels — capture sunlight and convert it to DC electricity
- Hybrid Inverter — converts DC to AC power your home can use, manages battery charging, and interfaces with the grid
- Battery Bank — stores energy for use during load shedding or at night
- Mounting & Wiring — roof mounting rails, DC/AC cabling, isolators, and a distribution board connection
Step 1: Decide What You Want Your System to Do
Before buying anything, get clear on your goal. Most South African homeowners fall into one of three categories:
| Goal | System Type | What You Need |
|---|---|---|
| Load shedding backup only | Hybrid (grid-tied with battery) | Inverter + battery (panels optional) |
| Reduce electricity bill + backup | Hybrid solar system | Panels + inverter + battery |
| Full off-grid independence | Off-grid system | Large panel array + large battery bank + off-grid inverter |
For most urban South African homes, a hybrid solar system is the sweet spot — it gives you load shedding protection, reduces your Eskom bill, and keeps you connected to the grid as a backup.
Step 2: Calculate Your Energy Needs
Work out how much electricity you use daily by checking your monthly bill and dividing by 30. Then decide which loads you want to power during load shedding (essential loads) vs. all the time (full system).
Typical essential loads for a 3-bedroom home:
- Lights: 100W
- Wi-Fi & TV: 150W
- Fridge: 150W
- Laptops & phones: 100W
- Security system: 50W
- Total: ~550W continuous, ~1–2kWh per 2-hour load shedding slot
Step 3: Size Your Inverter
Your inverter must handle your peak load (all appliances running simultaneously) with a 20–30% buffer. For the example above, a 3kVA or 5kVA hybrid inverter is appropriate.
Key specs to check:
- Continuous output (kVA/kW) — must exceed your peak load
- Battery voltage compatibility — 48V is standard for most modern systems
- MPPT rating — limits how many solar panels you can connect
- Grid-tie capability — allows feeding excess power back or drawing from grid when needed
→ Browse Hybrid Solar Inverters
Step 4: Choose Your Battery
For daily load shedding use, lithium (LiFePO4) batteries are the recommended choice. They charge faster, last longer (3,000–6,000+ cycles vs. 300–500 for gel), and give you 80–90% usable capacity vs. 50% for gel.
A good starting point for a 3-bedroom home is a 5kWh lithium battery, which covers 2–3 load shedding slots per day. For Stage 6 or homes with higher loads, consider 10kWh+. The Hubble AM5+ 5.12kWh LiFePO4 battery is a top-rated option for South African residential systems, offering unlimited cycle life and seamless inverter integration.
→ Browse Lithium Batteries | Browse Gel Batteries
Step 5: Size Your Solar Panel Array
Your panels need to recharge your battery and power your daytime loads. Use this formula:
Array size (kW) = Daily usage (kWh) ÷ Peak sun hours × 1.25 (losses buffer)
South Africa averages 5 peak sun hours per day. For a home using 20kWh/day:
20 ÷ 5 × 1.25 = 5kW array (approximately 10 × 550W panels)
Step 6: Plan Your Installation
A proper solar installation involves:
- Roof assessment — check structural integrity, orientation (north-facing is ideal in SA), and shading
- Mounting system — rail-based mounting for pitched roofs, flat-roof frames for flat roofs
- DC wiring — panels to inverter (use UV-rated solar cable)
- AC wiring — inverter to distribution board (DB board)
- Essential load DB — a separate DB for critical circuits that run off the inverter during load shedding
- Earthing & surge protection — required for safety and warranty compliance
Important: In South Africa, grid-tied systems must be installed by a registered electrician and comply with NRS 097 standards. Your municipality may also require a Certificate of Compliance (CoC) and a grid-tie application.
Step 7: Commission and Monitor Your System
Once installed, your installer will configure the inverter settings for your battery type, set charge/discharge limits, and test the system. Most modern hybrid inverters come with a monitoring app so you can track:
- Solar generation (kWh per day)
- Battery state of charge (%)
- Grid import/export
- Home consumption
Recommended System Packages by Home Size
| Home Size | Inverter | Battery | Panels |
|---|---|---|---|
| Small flat / 1–2 bed | 3kVA hybrid | 5kWh lithium | 4–6 × 400W |
| Medium home / 3 bed | 5kVA hybrid | 5–10kWh lithium | 8–10 × 550W |
| Large home / 4+ bed | 8kVA hybrid | 10–15kWh lithium | 12–16 × 550W |
| Large home + pool/AC | 10kVA+ hybrid | 15kWh+ lithium | 18–24 × 550W |
